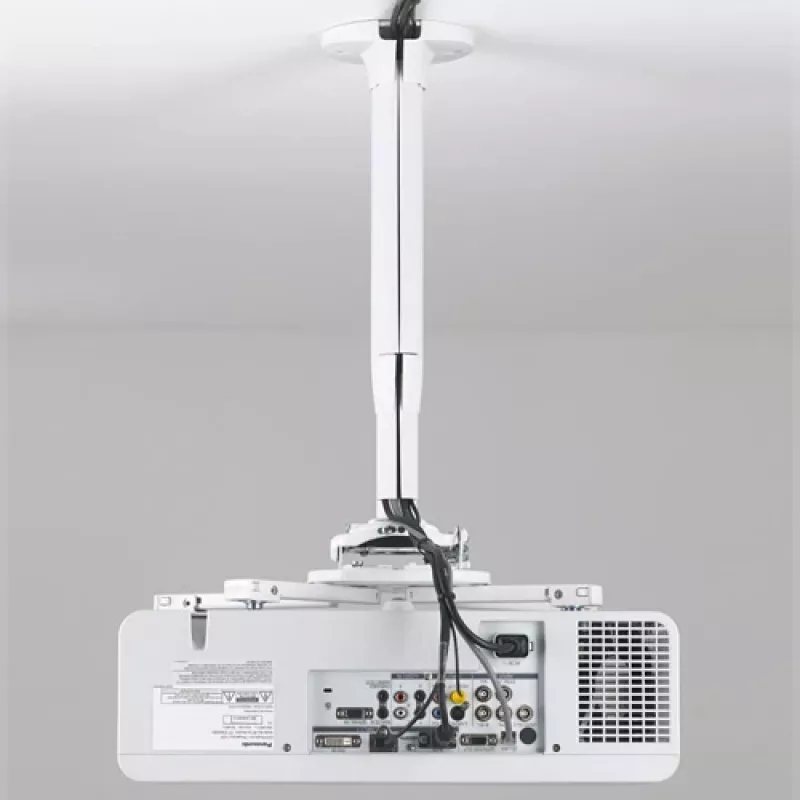

Chief KITEC030045W project mount Ceiling White

The Chief KITEC030045W ceiling mount kit provides a complete mounting solution for most projectors. The bundled components include the RSMEUW Mini Elite projector mount, CPA116W flat ceiling plate, CPA640W decorative shield ring and a 30–40 cm telescoping extension column. Designed for secure installations, the mount has a white finish and supports projectors up to 11.3 kg while keeping a low shipped weight for easier handling.

Advantages

The telescoping column offers infinite positioning between 30 cm and 45 cm for flexible projector placement. Microzone adjustments allow fast and precise projector registration. A Q-LOCK quick release lever enables rapid connect and disconnect for servicing. Integrated keyed locking security and All-Points Security hardware increase protection against tampering. Inlay-style external cable management simplifies routing and serviceability, while an aesthetic ceiling plate cover and decorative shield ring provide a clean, professional appearance for fixed and suspended ceilings.

Suitable for

• Conference rooms and meeting spaces
• Classrooms and lecture halls
• Small to medium-sized home theaters
• Offices and corporate AV installations

Key specifications

• Model: Chief KITEC030045W
• Included components: RSMEUW Mini Elite mount, CPA116W ceiling plate, CPA640W shield ring, 30–40 cm telescoping column
• Maximum supported projector weight: 11.3 kg
• Colour: White
• Mounting type: Ceiling
• MPN: KITEC030045W
• EAN: 841872163437

How to use

Mount the CPA116W flat ceiling plate to a suitable structural surface following local building codes and the manufacturer’s installation instructions. Attach the telescoping extension column to the ceiling plate, set the desired projection distance within the 30–45 cm range, and secure the column. Fasten the RSMEUW Mini Elite projector mount to the projector, use microzone adjustments to align the image precisely, and connect the Q-LOCK quick release lever for service access. Route cables through the inlay-style external cable management before fitting the CPA640W decorative shield ring and ceiling plate cover for a finished look.

Recommendations

Ensure the ceiling structure can support the combined weight of the mount and projector (up to 11.3 kg). Use the keyed locking feature and All-Points Security hardware where tamper resistance is required. Follow all local electrical and building regulations during installation and consult a professional installer if unsure.
