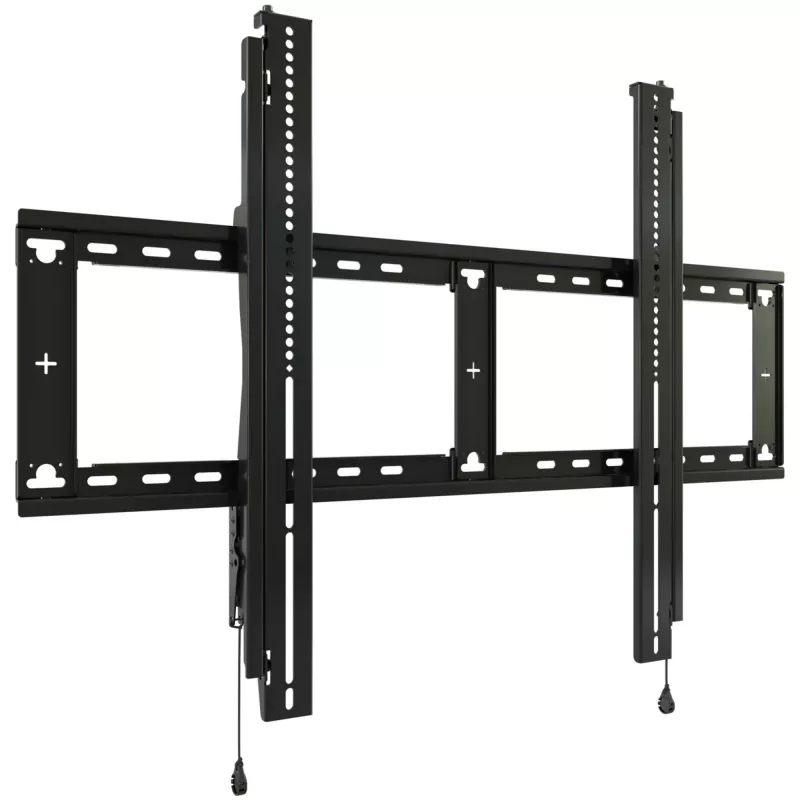

Chief RLF3 TV mount 2.18 m 86 Black Max weight 90.7 kg

The Fit series RLF3 is a fixed wall mount designed for 43" to 86" displays, supporting VESA mounting patterns up to 960 x 450 mm. The mount has a low-profile depth of 1" (25 mm) and a robust wall plate that supports a maximum weight of 90.7 kg (200 lbs). This model includes post-installation height leveling of up to 0.75" (19 mm) and meets UL and TUV safety standards.

Advantages

The Chief RLF3 offers a slim, low-profile appearance while providing a high load capacity for large screens. Its sturdy wall plate and certified safety approvals ensure reliable installation. Post-installation leveling simplifies final alignment without removing the display.

Suitable for

• Commercial signage and digital displays
• Conference rooms and meeting spaces
• Reception areas and lobbies
• Home entertainment installations with large TVs

Key specifications

• Compatible screen size: 43"–86"
• Maximum VESA: 960 x 450 mm
• Maximum weight capacity: 90.7 kg (200 lbs)
• Depth from wall: 1" (25 mm)
• Post-installation leveling: up to 0.75" (19 mm)
• Supported displays: 1
• Colour: Black
• Certification: UL and TUV approved

How to use

Mount the wall plate to a suitable structural surface following the mounting pattern and weight limits. Attach the display to the mount using the compatible VESA pattern (up to 960 x 450 mm). After securing the display, use the built-in adjustment to level the screen up to 19 mm (0.75") for precise alignment. Follow the manufacturer’s instructions for fastener types and torque values.

Recommendations

Install on a load-bearing wall or appropriate structural backing. Verify VESA compatibility and screen weight before installation. For safety and warranty compliance, use recommended mounting hardware and consider professional installation for heavy or high-mounted displays.
