Neomounts WL35-350BL14 TV mount wall 32-65 inch - tiltable - lockable - easy install

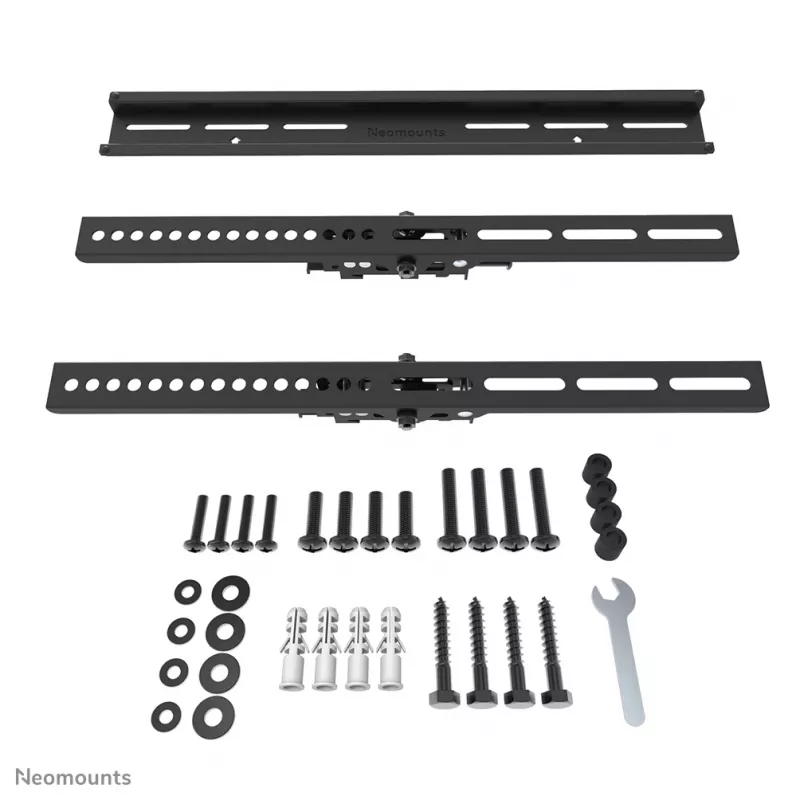

The Neomounts WL35-350BL14 is a tiltable TV wall mount designed for flat screens from 32" up to 65" with a maximum load capacity of 35 kg. It supports VESA hole patterns from 50x50 mm to 400x400 mm and features a slim profile with a mounting depth of 4.6 cm. The mount offers a tilt range to create an optimal viewing angle and includes a bolt bag with installation hardware; padlock is not included.

Advantages

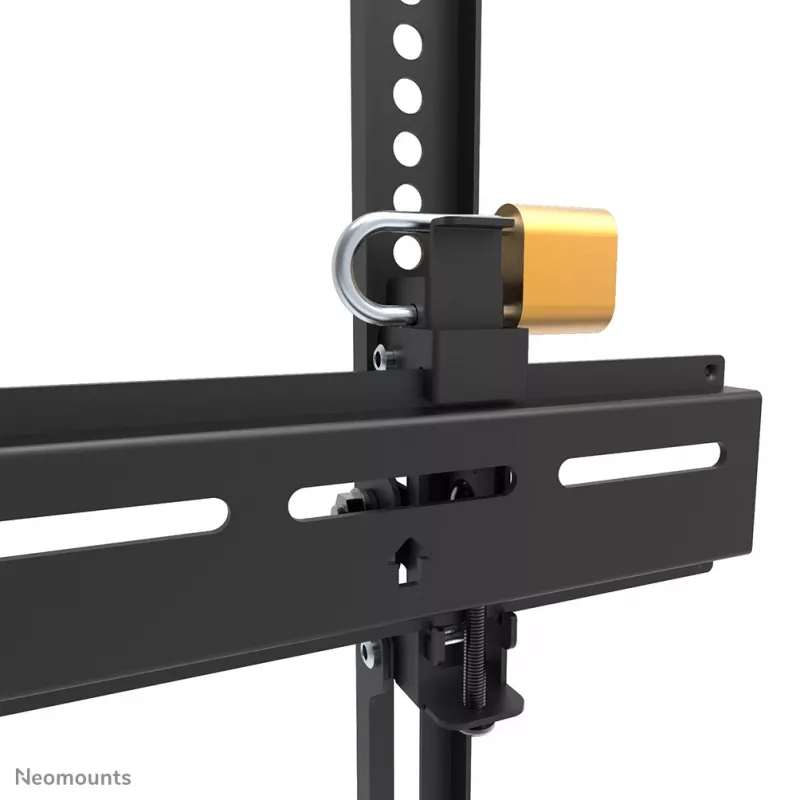

The WL35-350BL14 provides secure, low-profile mounting for a single display and supports a wide range of VESA patterns up to 400 x 400 mm. Its tilt technology allows angle adjustment for better viewing, while the included bolt bag simplifies installation. The metal brackets can be locked with a padlock (not supplied) for added security.

Suitable for

• Mounting a single TV or flat screen from 32" to 65"
• Installations requiring VESA compatibility from 50x50 mm to 400x400 mm
• Situations where a slim, low-profile wall mount is preferred

Key specifications

• Maximum screen size: 65"
• Maximum weight capacity: 35 kg

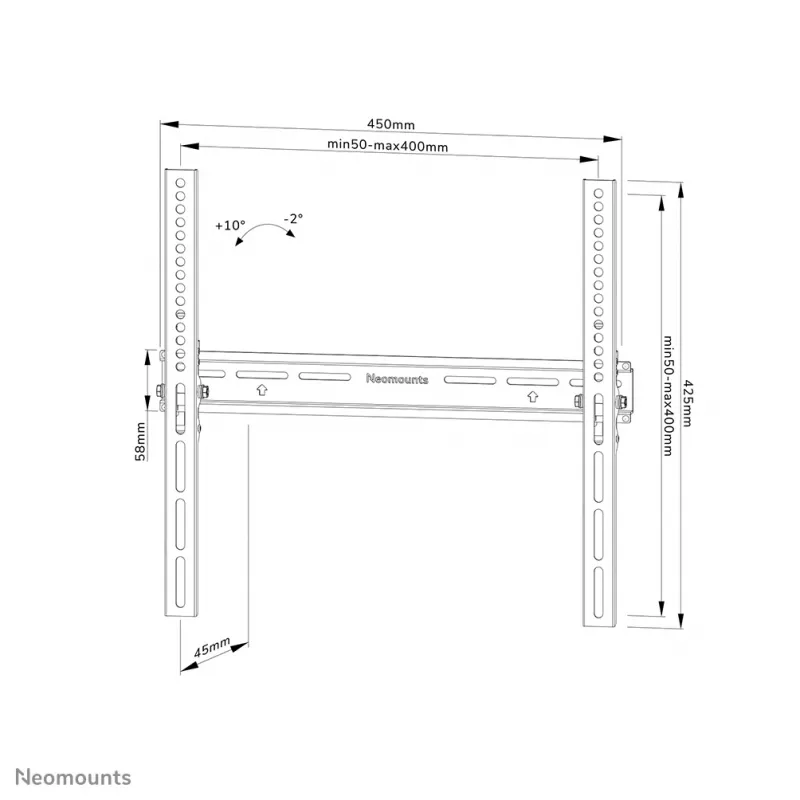

• Supported VESA: 50 x 50 mm up to 400 x 400 mm
• Mounting depth: 4.6 cm
• Product colour: Black
• Number of displays supported: 1

How to use

Attach the wall plate to a suitable load-bearing wall using the appropriate anchors and screws for your wall type. Fix the mounting brackets to the back of the screen aligning with the correct VESA holes, then hang the screen onto the wall plate. Adjust the tilt to the desired angle (tilt range approximately -2° to 10°) and tighten all fasteners. Use a padlock on the brackets if additional locking is required (padlock not included).

Recommendations

Check the television’s VESA pattern and weight before installation, and use suitable wall fixings for your wall material. If unsure, consult a professional installer to ensure safe and secure mounting.
