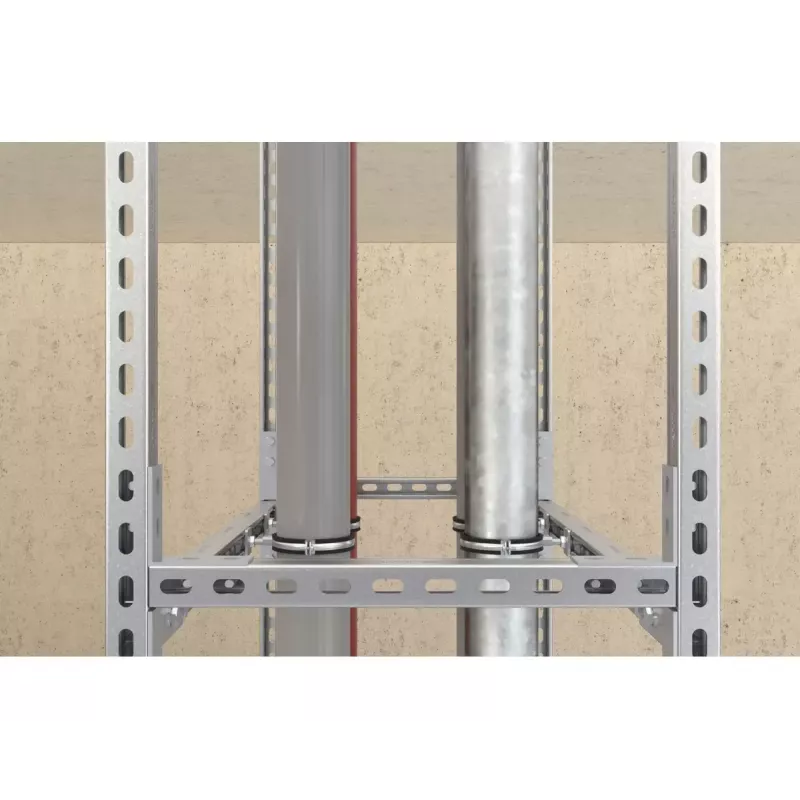

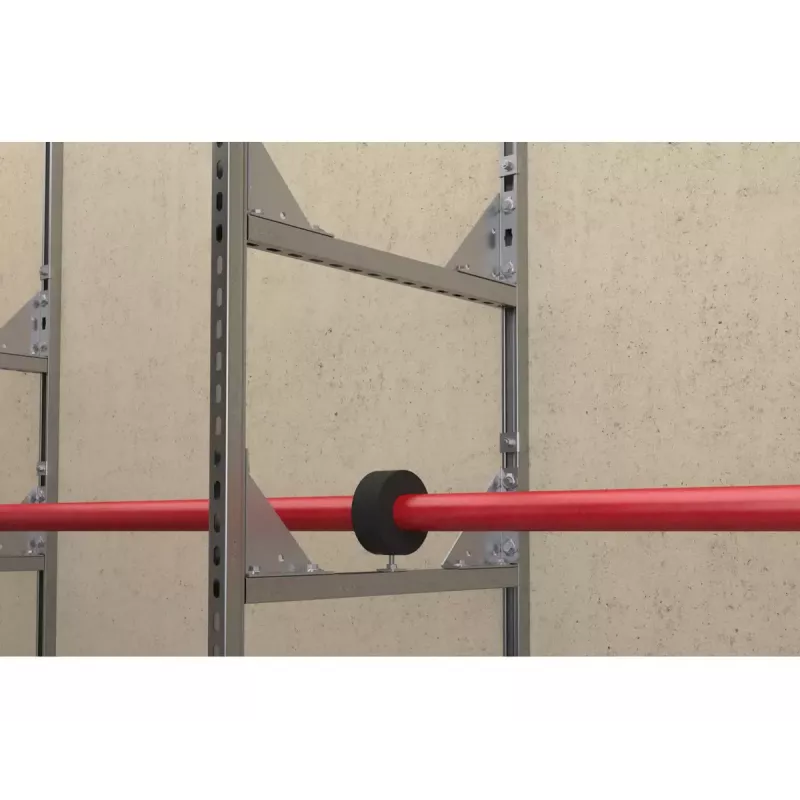

Channel Fischer 40391 Plumbing Mounting Frame

The Fischer Channel 40391 Plumbing Mounting Frame is a single-piece steel channel designed for supporting plumbing installations. With a length of 2000 mm and a material thickness of 2 mm, the channel delivers a straight, stable support profile for mounting pipes, fixtures and brackets. The steel construction balances durability with manageable weight to suit a range of indoor plumbing applications where a reliable framing element is required.

Advantages

The 2000 mm steel channel offers a uniform cross-section that simplifies alignment and mounting of plumbing components. Its 2 mm wall thickness provides resistance to bending under typical loads while keeping the overall profile slim. Being a single-piece channel, it reduces the number of joints and fastening points, which can improve long-term stability of mounted plumbing systems. The straightforward geometry makes it compatible with standard clamps, brackets and mounting hardware used in plumbing installations.

Suitable for

• Mounting and supporting water and drainage pipes in residential and commercial interiors
• Creating rack frames for bathroom fixtures, sinks and concealed cisterns
• Use as a structural support for bracketed valves, manifolds and pipe runs
• Integration into service voids, utility shafts and suspended ceilings for plumbing runs

Key specifications

• Material: steel
• Length: 2000 mm
• Material thickness: 2 mm
• Single-piece channel construction
• Profile type: straight channel suitable for mounting brackets and clamps

How to use

Select channel length and orientation appropriate to the route of pipes and the location of fixtures. Secure the channel to a stable substrate using suitable anchors or fasteners compatible with the wall or frame material. Position plumbing clamps or brackets along the channel at intervals recommended for the pipe diameter and type, then attach pipes or fixtures ensuring correct alignment and slope for drainage where required. If multiple channels are used, align and join them according to project requirements, maintaining secure connections and checking for level and plumb.

Recommendations

For best results, use corrosion-resistant fasteners and compatible mounting hardware. Verify load requirements and spacing of pipe supports based on local plumbing codes and the weight of installed components. Store and handle the steel channel to avoid deformation prior to installation; protect exposed edges and finishes when installing in moisture-prone areas.
