Ceiling Wall Mount B-Tech SYSTEM 2 BT7808/B

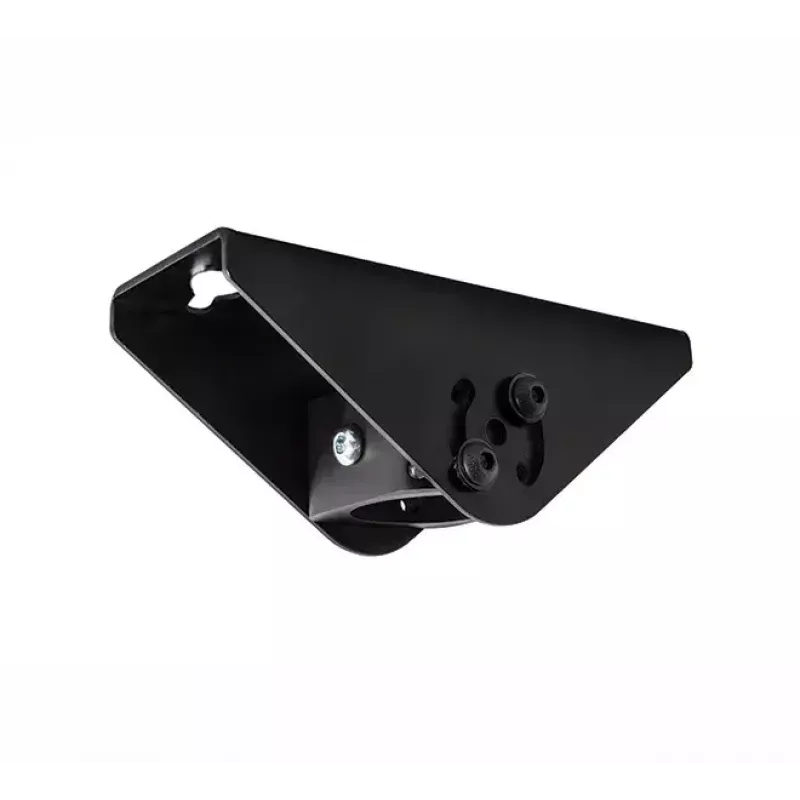

The B-Tech SYSTEM 2 BT7808/B ceiling and wall mount is designed for use with Ø50 mm poles and supports a maximum load of 140 kg. Its compact dimensions (200 mm width, 80 mm depth, 71 mm height) and black finish suit a range of professional and residential installations where secure mounting of flat screens or projectors is required.

Advantages

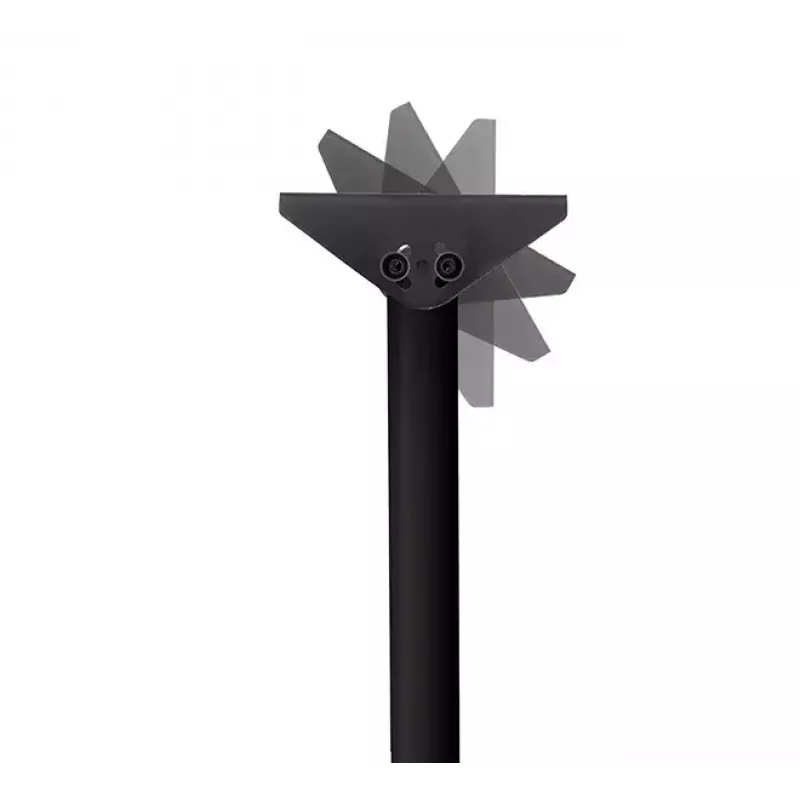

The mount offers an adjustable tilt mechanism with a 0–90° range, enabling precise screen or projector angling for both flat and angled ceilings. Compatible with Ø50 mm poles and rated for heavy-duty loads, the BT7808/B provides reliable support and flexible positioning while maintaining a low-profile appearance.

Suitable for

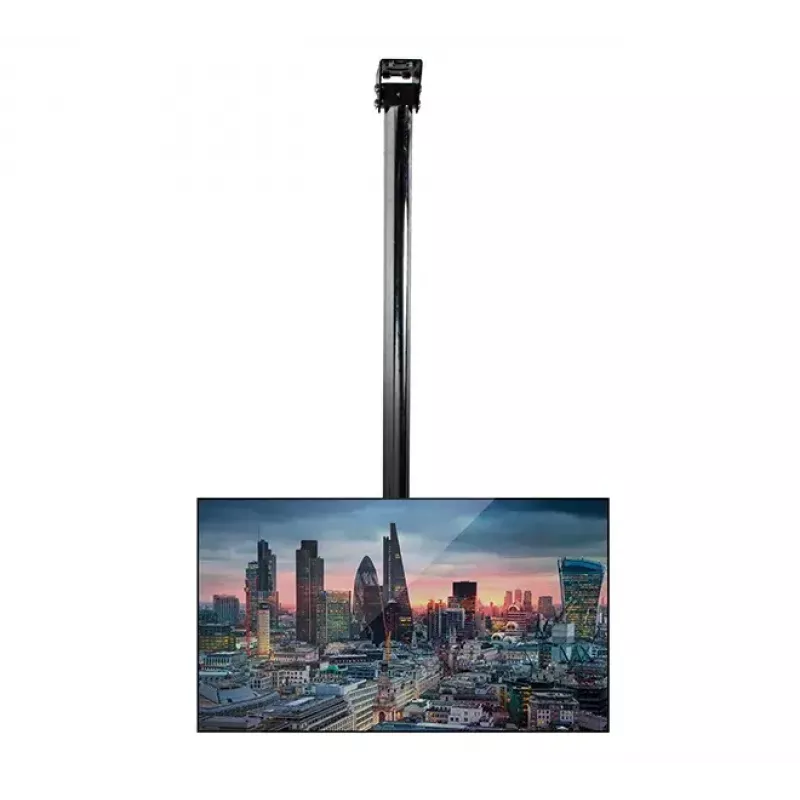

• Mounting flat screens to flat ceilings
• Mounting flat screens to angled ceilings
• Mounting projectors to ceilings
• Wall-mounted installations in portrait or landscape orientation

Key specifications

• Compatible pole diameter: Ø50 mm
• Maximum weight capacity: 140 kg
• Tilt range: 0–90°
• Dimensions (W × D × H): 200 × 80 × 71 mm
• Colour: Black
• Brand: B-Tech, Model: SYSTEM 2 BT7808/B

How to use

Secure the mount to the chosen Ø50 mm pole according to the pole and ceiling or wall manufacturer's instructions. Attach the screen or projector to the mount using suitable fixings and ensure the total weight does not exceed 140 kg. Adjust the tilt angle within the 0–90° range to achieve the desired viewing position, then lock all fasteners to prevent movement.

Recommendations

Check the mounting surface for structural suitability and, if necessary, consult a qualified installer. Use appropriate screws and anchors for the construction material and periodically verify fasteners and tilt adjustments for safety.
