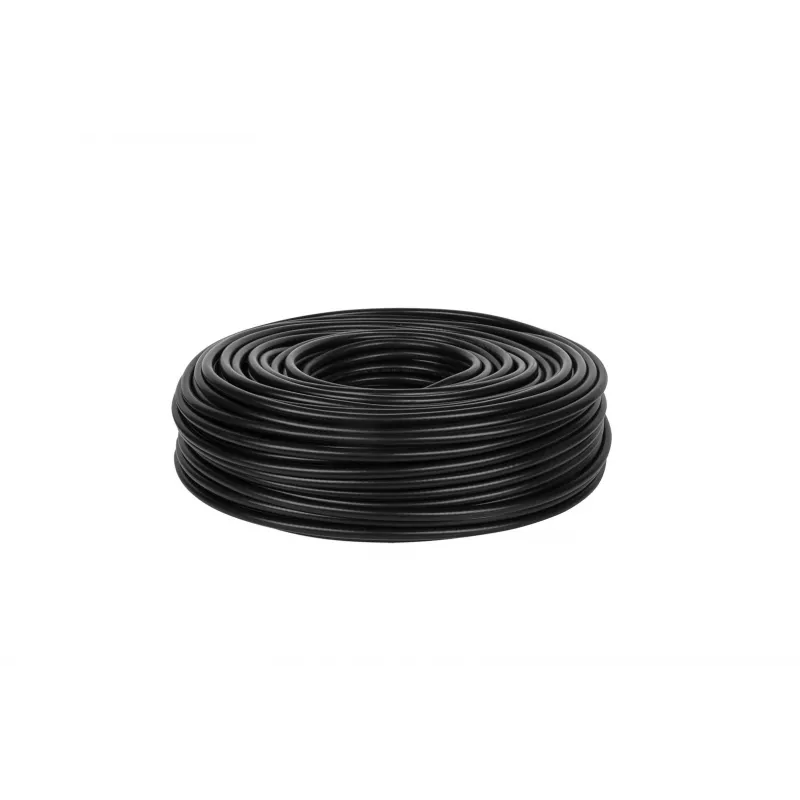

CABLETECH H1000 Coaxial Cable 50 Ohm 100m Black

The CABLETECH H1000 is a high-performance coaxial cable designed for professional RF and telecommunications applications. With a 50 Ohm impedance and 100-meter length, it ensures reliable signal transmission with minimal loss. The cable features a solid copper inner conductor, foamed polyethylene dielectric, and double shielding (aluminum foil + tinned copper braid) for excellent interference protection. Its black PE jacket is UV resistant and suitable for outdoor use.

Advantages

Low attenuation across frequencies, high braid coverage (>90%), and robust construction ensure long-lasting performance. The 85% velocity of propagation and 80 pF/m capacitance optimize signal integrity.

Suitable for

• Antenna installations
• Broadband and satellite systems
• Wireless LAN and CCTV
• Radio frequency transmission

Key specifications

• Cable type: Coaxial
• Impedance: 50 Ohm
• Length: 100 m
• Inner conductor: Solid copper, 2.62 mm
• Dielectric: Foamed polyethylene, 7.2 mm
• Shielding: Double (foil + braid)
• Braid coverage: >90%
• Jacket: Polyethylene, 10.3 mm outer diameter
• Attenuation: 3.5 dB/100m @ 100 MHz, 8.5 dB/100m @ 500 MHz, 12.5 dB/100m @ 1 GHz, 20.5 dB/100m @ 2.4 GHz
• Operating temperature: -40°C to +80°C

Recommendations

For optimal performance, use with appropriate connectors (not included). Suitable for both indoor and outdoor installations.
