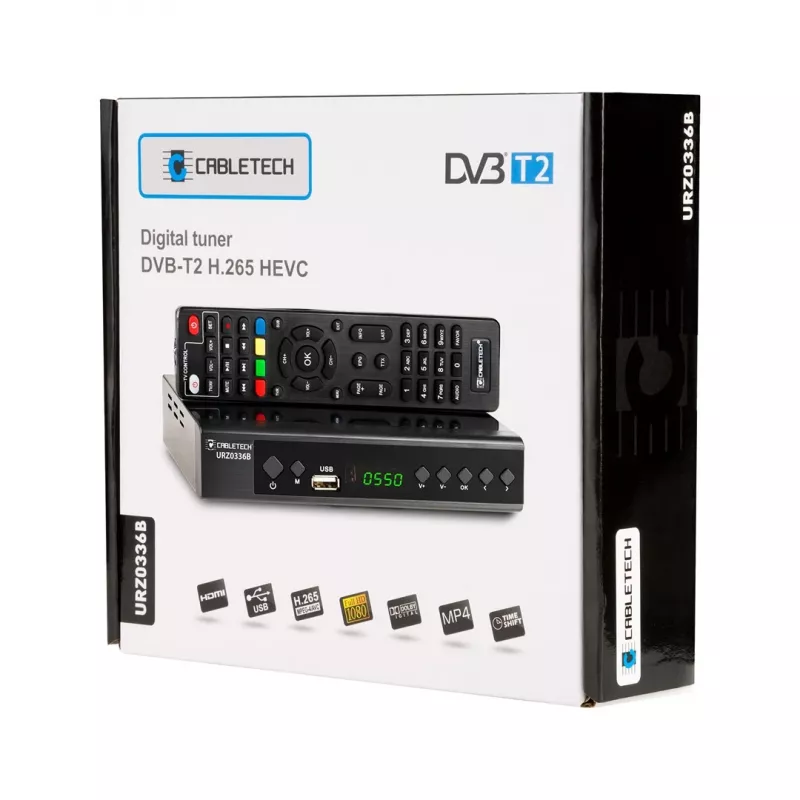

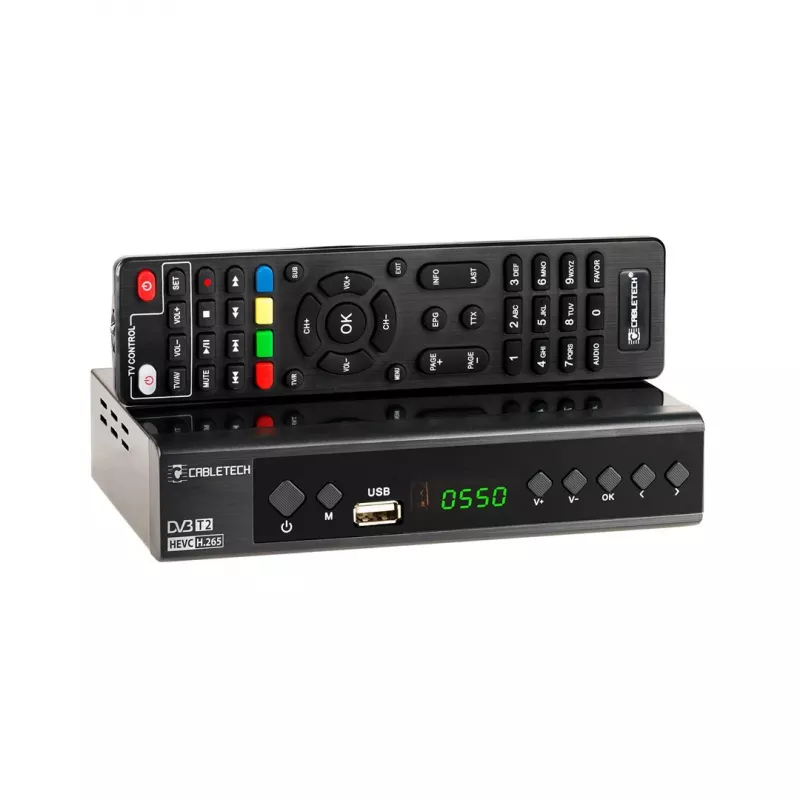

Digital TV Receiver Cabletech URZ0336C DVB-T/T2 H.265 terrestrial tuner, 470–862 MHz, 1 tuner, HDMI, USB, SCART

Cabletech URZ0336C is a compact digital TV receiver for terrestrial DVB-T and DVB-T2 broadcasts with H.265 (HEVC) video decoding. It enables reception of over-the-air digital TV channels, offers electronic program guide (7-day EPG), timeshift and PVR recording via USB, and provides multiple input/output options to connect to TVs that lack built-in DVB-T2 support.

Advantages

The receiver supports modern video codecs (H.264, H.265) and multiple audio formats, offers automatic and manual channel search, shows signal strength and quality, and includes features such as parental control, teletext, favourite channel list and LCN. Compact dimensions, low power consumption and support for USB media playback and firmware updates via USB make it suitable for basic set-top box needs.

Suitable for

• Connecting TVs without built-in DVB-T/T2 tuners
• Receiving over-the-air digital terrestrial broadcasts
• Watching and recording live TV (PVR) to USB storage
• Playing media files from USB (MP4, MKV, MP3, JPEG, AVI)

Key specifications

• System: CPU GX6706S5, 32 MB internal memory, 512 MB DDR2 RAM
• Video resolution: up to 1920x1080 px; video formats: Auto, 16:9, 4:3 LB, 4:3 PS
• Supported codecs/formats: H.264, HEVC (H.265), MPEG-2; MP3, MP4, MKV, JPEG, AVI
• Audio decoders: MPEG-1/2, AAC, AAC+/HE-AAC, AC-3, Dolby Digital Plus
• TV tuner: VHF 177.5–236.5 MHz, UHF 474–866 MHz; demodulation QPSK, 16/64/256QAM; bandwidth 7/8 MHz

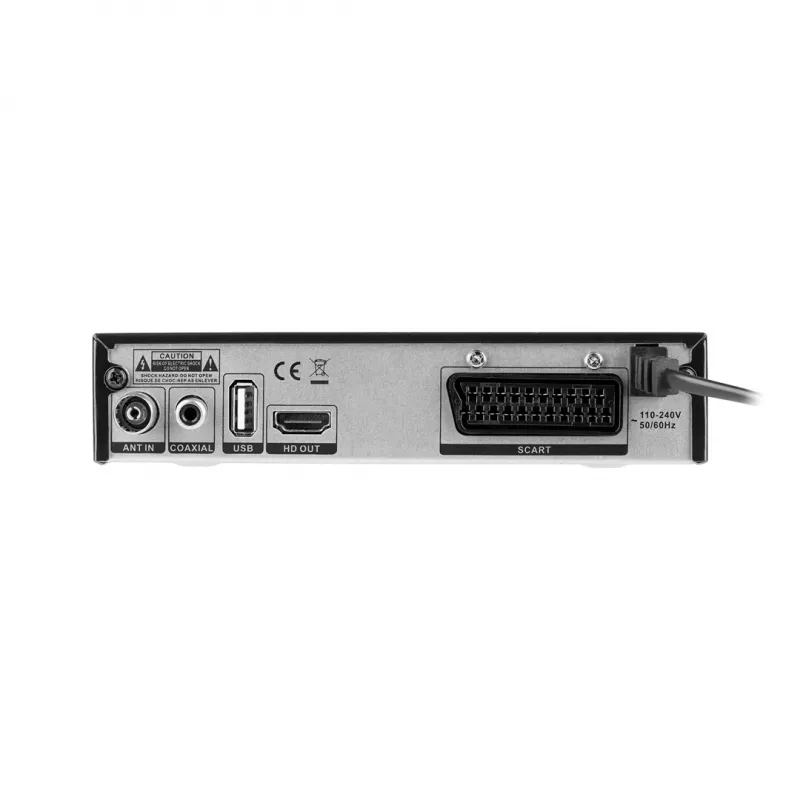

• Inputs/Outputs: SCART, HDMI 1.4b, 2× USB 2.0, 1× IEC (ANT IN), Coaxial
• Power: 110–240 V AC, 50/60 Hz; max. consumption 7.5 W; standby ≤0.5 W; remote uses 2× AAA
• Physical: 167 × 94 × 35 mm; weight 250 g; power cord length 1 m

How to use

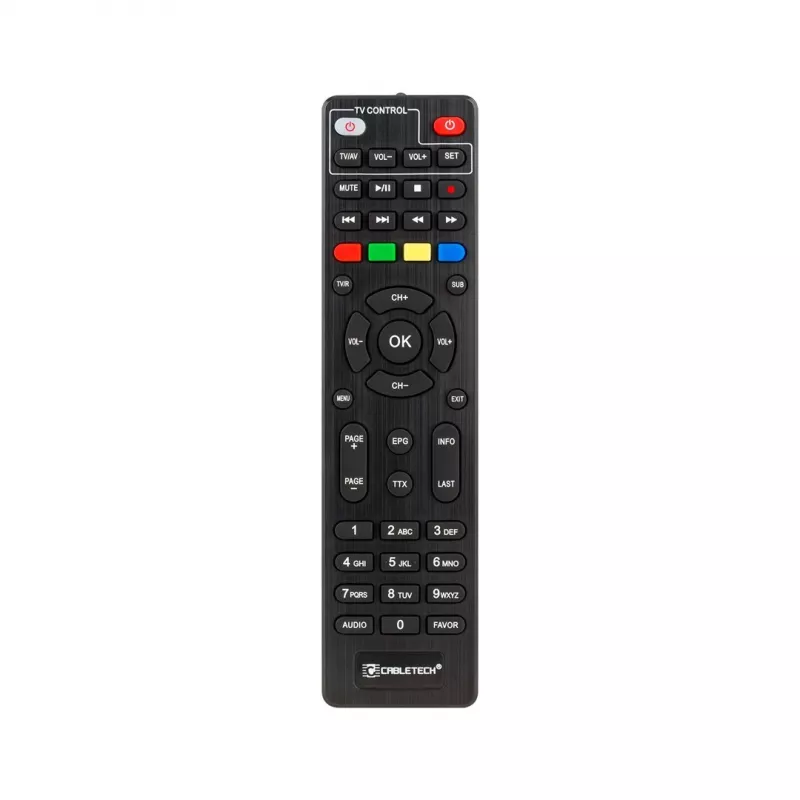

Connect the ANT IN (IEC) to your terrestrial antenna and use HDMI or SCART to connect to the TV. Power the unit from mains (110–240 V AC). Use the remote control to perform automatic or manual channel search, select preferred language in the multilingual menu and configure LCN or favourite channel lists. To record or play media, connect a USB storage device to one of the USB 2.0 ports and use the PVR and media playback functions. Update firmware via USB when an update file is provided by the manufacturer.

Recommendations

For stable reception, place the antenna in a location with clear line of sight to the broadcast transmitter. Use a high-quality HDMI cable for best video output and format the USB drive to FAT32 or NTFS before recording. Ensure the TV input is set to the receiver's HDMI or SCART port and keep firmware up to date to maintain compatibility with broadcast standards.
