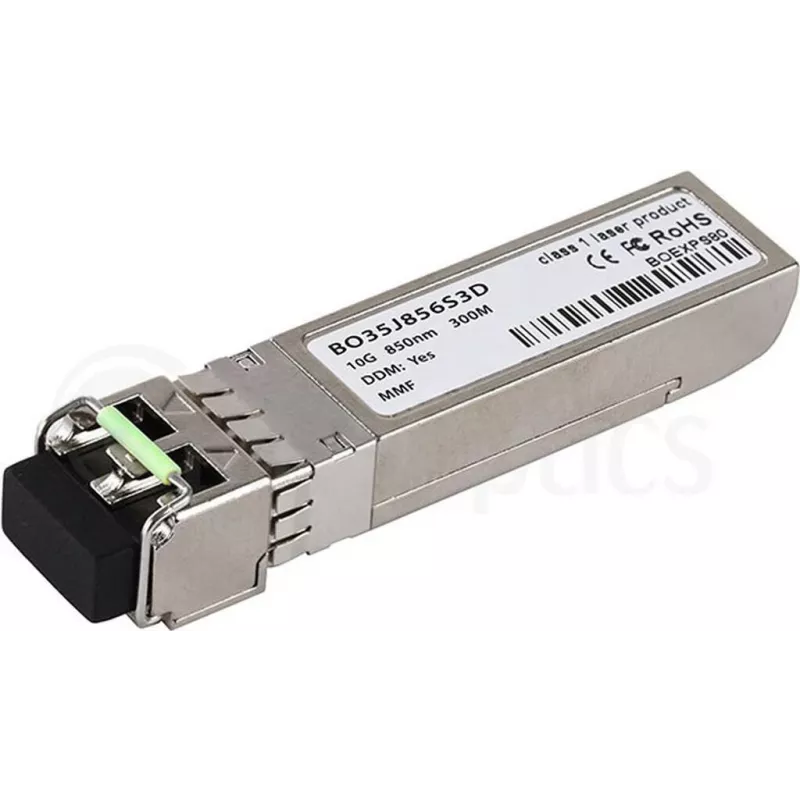

Fiber optic SFP+ transceiver CBO 3HE04824AA-BO 10,000 Mbit/s LC SR 300 m

CBO 3HE04824AA-BO is a fiber optic SFP+ transceiver that supports 10,000 Mbit/s data rates with an LC duplex connector and short-range (SR) operation up to 300 m over multimode fiber. The module is designed for 10 Gigabit Ethernet links in data center and enterprise environments where compact, hot-pluggable optics are required for connections between switches, servers and storage systems. Its form factor allows straightforward integration into SFP+ ports for immediate use in compatible network equipment.

Advantages

The transceiver provides a standardized SFP+ footprint with hot-pluggable capability, enabling fast installation and maintenance without powering down equipment. Operating over multimode fiber for short-range links, it supports reliable 10 GbE performance up to 300 m and uses an LC duplex connector for common compatibility with existing cabling. The module is suitable for dense port deployments due to its compact dimensions and offers predictable physical-layer behavior for network planning.

Suitable for

• 10 Gigabit Ethernet links between switches in racks and rows
• Server-to-switch connections in data centers
• Storage area network (SAN) short-distance links
• Short-range multimode fiber links within enterprise buildings

Key specifications

• Data rate: 10,000 Mbit/s (10 GbE)
• Connector type: LC duplex
• Transmission distance: up to 300 m over multimode fiber (OM3/OM4 dependent)
• Form factor: SFP+ (hot-pluggable)
• Wavelength: short-range multimode optical wavelength
• Optical interface: multimode fiber

How to use

Insert the SFP+ transceiver into a compatible SFP+ slot on the switch, server NIC or storage interface while the host device is powered according to vendor guidelines. Connect LC duplex multimode fiber patch cords to the transceiver, ensuring correct transmit/receive orientation. Configure the network device to enable the 10 GbE port if required by the operating system or switch firmware and verify link status and speed through the management interface or LED indicators.

Recommendations

For reliable performance, use quality multimode fiber patch cords and adhere to bend-radius and connector cleanliness practices. Verify compatibility with the target equipment vendor if the network requires vendor-specific interoperability lists. For distances near the 300 m limit, prefer higher-grade multimode fiber (e.g., OM4) and check link budgets in the network design.
