DeLOCK D-Sub 9 pin male to RJ12 female Assembly Kit yellow

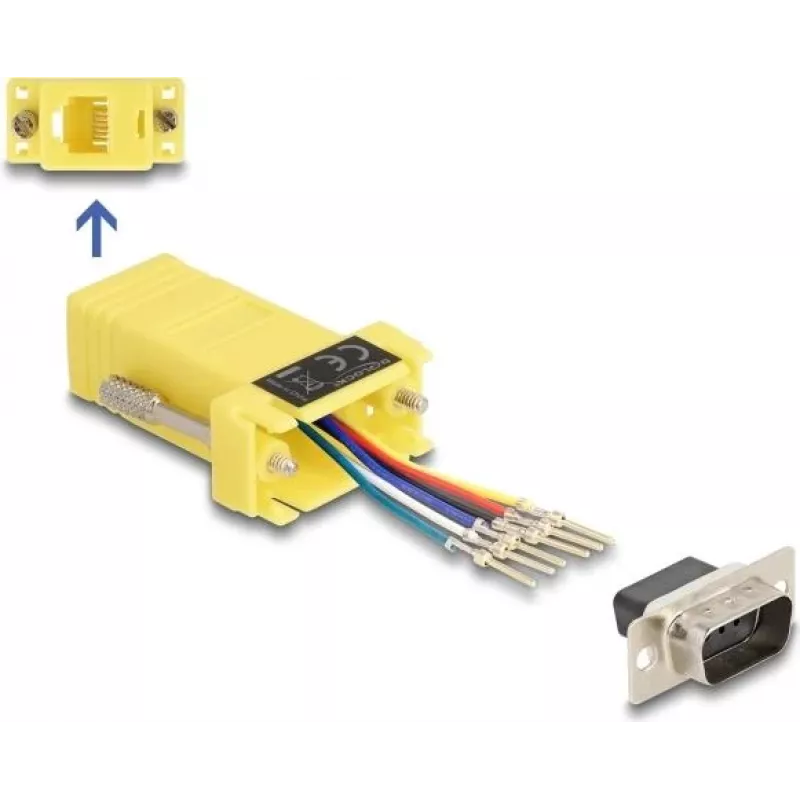

The DeLOCK D-Sub 9 pin male to RJ12 female Assembly Kit in yellow provides a configurable D-Sub 9 interface that can be connected via ISDN, telephone or RJ12 cable. The kit includes a D-Sub 9 housing and RJ12 female connection, allowing the contacts to be inserted and assigned individually to meet specific wiring requirements. The bright yellow colour makes the assembled connector easy to identify within a cable setup.

Advantages

The adapter allows flexible assignment of the D-Sub 9 contacts and secure snap-in sockets that click into place to ensure reliable contact. The assembly kit supports connection over standard ISDN/telephone or RJ12 cabling and is suitable for custom wiring tasks where a D-Sub 9 to RJ12 interface is required.

Suitable for

• Extending or custom-building a D-Sub 9 connection using RJ12 or telephone cabling
• Connecting legacy serial equipment via RJ12/ISDN wiring
• Small repairs or modifications where a replaceable D-Sub 9 to RJ12 interface is needed

Key specifications

• Brand: DELOCK
• MPN: 67076
• EAN: 4043619670765
• Connector 1: D-Sub 9 (male housing for contacts)
• Connector 2: RJ12 (female)
• Product colour: Yellow

How to use

Open the D-Sub 9 housing, insert the individual contacts according to the required pinout, and snap the sockets into the housing until they click. Connect the RJ12 female side to the RJ12 or telephone cable as required. Verify the wiring with a continuity tester before connecting powered equipment to ensure correct pin assignment and avoid damage to devices.

Recommendations

Perform assembly and wiring in a static-free environment, follow the device pinout specifications, and test connections with appropriate tools before use. Use the yellow housing to clearly mark this cable in multi-cable installations.
