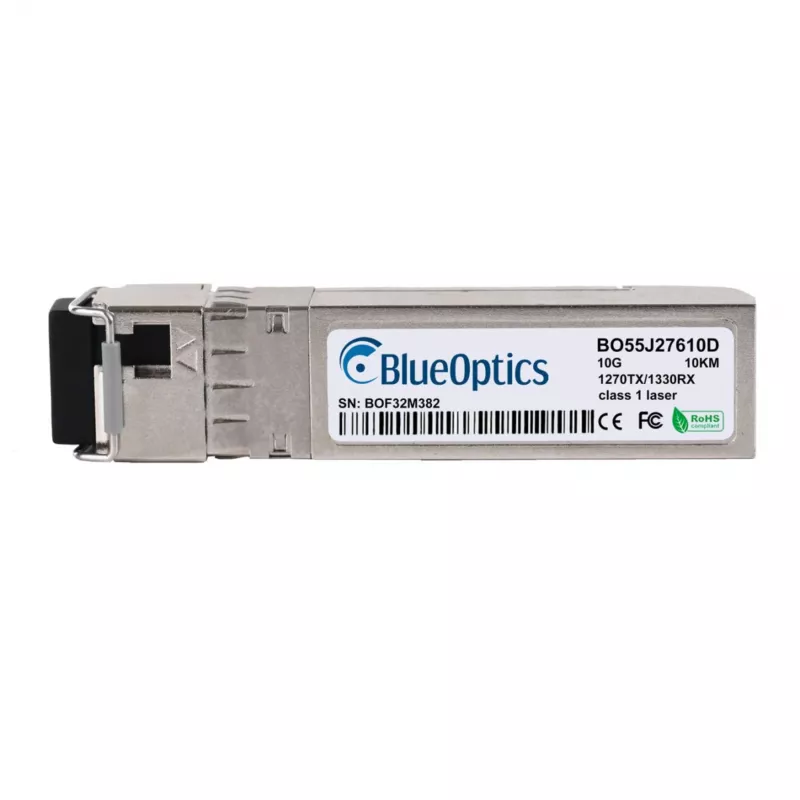

BlueOptics BO55J27610D Compatible Ruckus 10G-SFPP-BXU-S SFP+ Bidi Transceiver, LC-Simplex, 10GBASE-B, 10 km

The BlueOptics BO55J27610D is a high-performance SFP+ Bidi transceiver designed for compatibility with Ruckus 10G-SFPP-BXU-S equipment. It delivers reliable 10 Gigabit Ethernet connectivity over single-mode fiber, ideal for enterprise and data center networks.

Advantages

This transceiver offers cost-effective, plug-and-play compatibility with Ruckus switches and routers. It supports digital diagnostic monitoring (DDM) for real-time performance tracking, ensuring optimal network uptime. With low power consumption under 1.0 W and a robust MTBF of over 2,000,000 hours, it provides long-term reliability.

Suitable for

• Ruckus 10G-SFPP-BXU-S compatible switches and routers
• 10GBASE-BXU uplinks in enterprise networks
• Single-mode fiber point-to-point connections up to 10 km
• Data centers requiring high-speed, cost-effective optical interconnects

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Wavelength (Transmit): 1330 nm
• Wavelength (Receive): 1270 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Simplex
• Standard: IEEE 802.3ae 10GBASE-BXU
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC, TUV, UL, FDA
• Laser Class: Class 1

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This transceiver is a direct replacement for the Ruckus 10G-SFPP-BXU-S original module.
