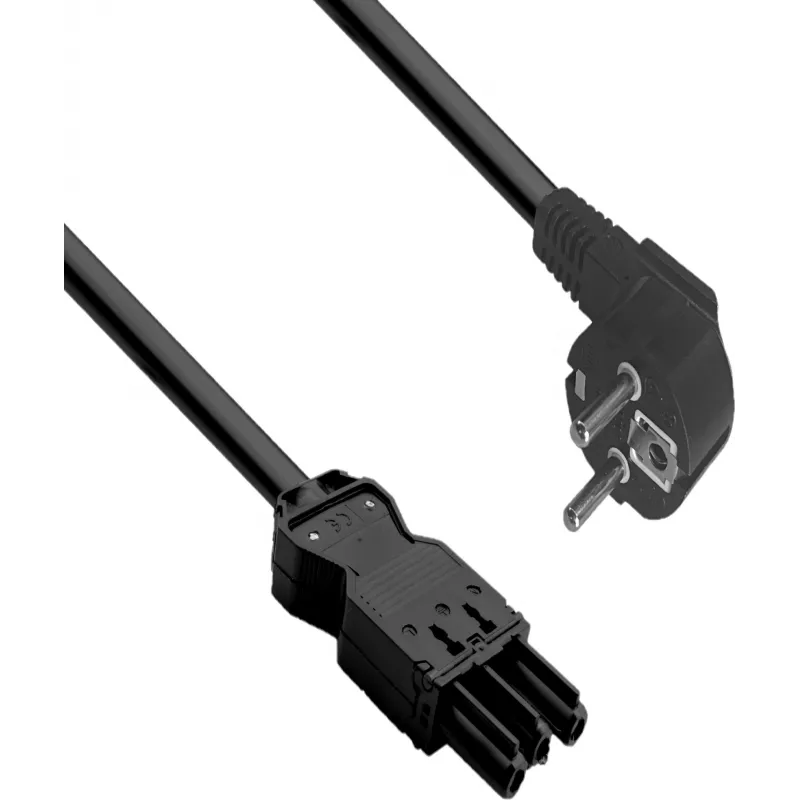

HELOS GST18 Power Connection Cable CEE 7/7 90° Angled Male to GST18i3 Female Black 2.0m

The HELOS GST18 power connection cable is designed for internal power distribution in office furniture, lighting systems, and similar applications. It features a CEE 7/7 (Type E/F) 90° angled male connector on one end and a GST18i3 compatible female connector on the other, providing a secure and space-saving connection. The cable is 2.0 meters long, black, and made of H05VV-F PVC jacket material with 3 x 1.5 mm² conductors. Rated for 250 V AC and 16 A, it complies with CE standards and offers IP20 protection.

Advantages

This cable offers a reliable and flexible solution for power distribution in confined spaces. The 90° angled connector allows for easy installation in tight areas, while the robust PVC jacket ensures durability. The GST18i3 compatible female connector ensures compatibility with standard power distribution systems.

Suitable for

• Office furniture power distribution
• Lighting systems
• Internal power distribution in workstations
• Industrial and commercial applications requiring CEE 7/7 and GST18i3 connections

Key specifications

• Product Type: Power Connection Cable
• Connector A: CEE 7/7 (Hybrid Type E/F) Male, 90° Angled
• Connector B: GST18i3 Compatible Female
• Cable Length: 2.0 m
• Color: Black
• Voltage Rating: 250 V AC
• Current Rating: 16 A
• Conductor Cross-Section: 3 x 1.5 mm²
• Cable Standard: H05VV-F
• Jacket Material: PVC
• Protection Rating: IP20
• Number of Conductors: 3
• Compliance: CE

Recommendations

For optimal performance, ensure that the cable is used within its rated voltage and current limits. Avoid exposing the cable to excessive moisture or mechanical stress. This cable is ideal for connecting power distribution units in office furniture and lighting systems.
