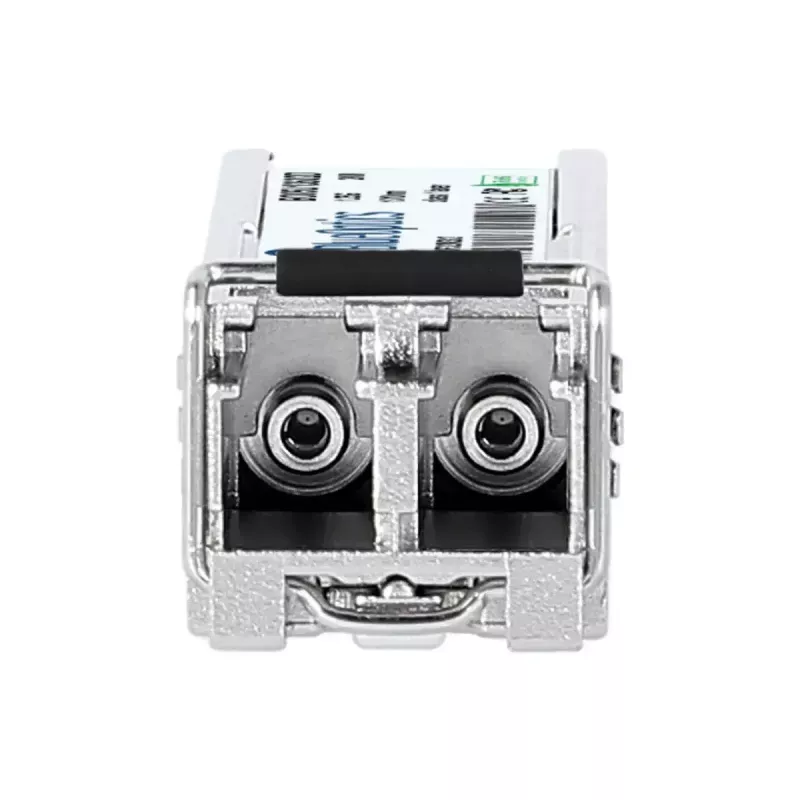

SFP transceiver module BlueOptics AX-F6244-3S1S2X-BO 1250 Mbit/s

The BlueOptics AX-F6244-3S1S2X-BO SFP transceiver module is a compact optical interface engineered for 1000BASE-X fiber connections. It supports a maximum data rate of 1250 Mbit/s and is designed for use with LC duplex fiber links. The module is compliant with CE, RoHS and FCC standards and has a lightweight silver housing, making it suitable for integration into switches, routers and other network equipment that accept MSA-compliant SFP transceivers.

Advantages

This SFP transceiver provides interoperable 1000BASE-X performance with separate transmitter and receiver at 1310 nm for multi-mode fiber applications, delivering up to 1.25 Gbit/s over typical short-range links. The module follows MSA mechanical and electrical specifications for SFP form factor, enabling compatibility with a wide range of hardware platforms. Built-in digital diagnostic monitoring (DDM/DOM) support allows real-time access to operating parameters such as supply voltage, laser bias current, output power, received power and temperature when the host device supports these functions.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP into an empty SFP slot of the host device while the device is powered down or following the vendor's hot-plug procedures. Connect an LC duplex multimode fiber patch cord ensuring correct transmit-to-receive polarity. If the host supports digital diagnostics, access DDM/DOM readings through the management interface or appropriate monitoring software to verify supply voltage, laser bias current, output and input optical power, and temperature. Confirm link status and speed via the host device configuration and link LEDs. Follow the host vendor’s compatibility notes when deploying third-party transceivers.

Recommendations

Use certified multimode LC duplex patch cords and, where possible, test the link with your network equipment to verify compatibility and optical budget. Ensure the host device supports 1000BASE-X SFP transceivers and DDM/DOM if you require diagnostic monitoring. Store spare modules in anti-static packaging and avoid exposing the optical interfaces to dust—use protective caps when connectors are not mated.
