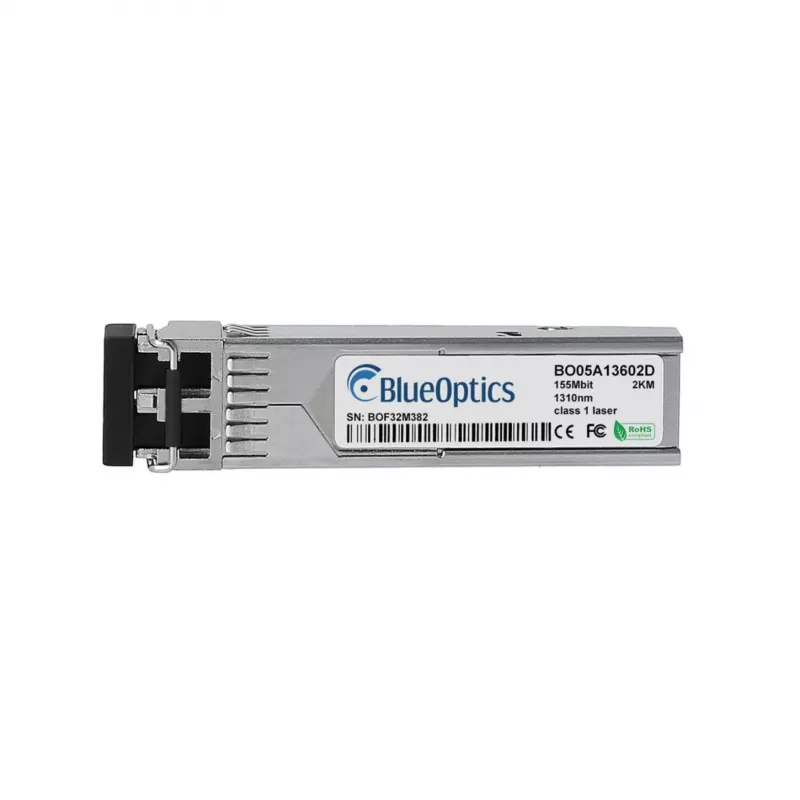

BlueOptics BO05A13602D Compatible Ruckus E1MG-100FX-A SFP Transceiver, LC Duplex, 100BASE-FX, Multimode, 2 km, 1310 nm

The BlueOptics BO05A13602D is a high-performance SFP transceiver designed as a compatible replacement for the Ruckus E1MG-100FX-A module. It delivers reliable 100BASE-FX connectivity over multimode fiber with LC duplex connectors, supporting distances up to 2 km at a wavelength of 1310 nm. This hot-swappable module is ideal for Fast Ethernet networking applications in enterprise and data center environments.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Fully compliant with IEEE 802.3u and SFP MSA standards, ensuring seamless integration with Ruckus equipment. Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption (<1W) and wide operating temperature range (0°C to 70°C) make it suitable for various deployment scenarios.

Suitable for

• Fast Ethernet (100BASE-FX) network connections
• Enterprise and campus network infrastructure
• Data center interconnects over multimode fiber
• Upgrading or expanding existing Ruckus networks

Key specifications

• Form Factor: SFP
• Data Rate: 100 Mbps
• Wavelength: 1310 nm
• Max Distance: 2 km over multimode fiber
• Connector: LC Duplex
• Fiber Type: Multimode (MMF)
• Interface: 100BASE-FX
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Consumption: < 1W
• Operating Temperature: 0°C to 70°C
• Standards: IEEE 802.3u, SFP MSA

Recommendations

For optimal performance, use with high-quality multimode fiber patch cables (OM1/OM2/OM3/OM4). Ensure your network equipment supports SFP modules and 100BASE-FX standard. This transceiver is a direct replacement for Ruckus E1MG-100FX-A and is fully tested for compatibility.
