BlueOptics 3HE13896AA-2-BO InfiniBand fibre optic cable 2 m MPO/UPC

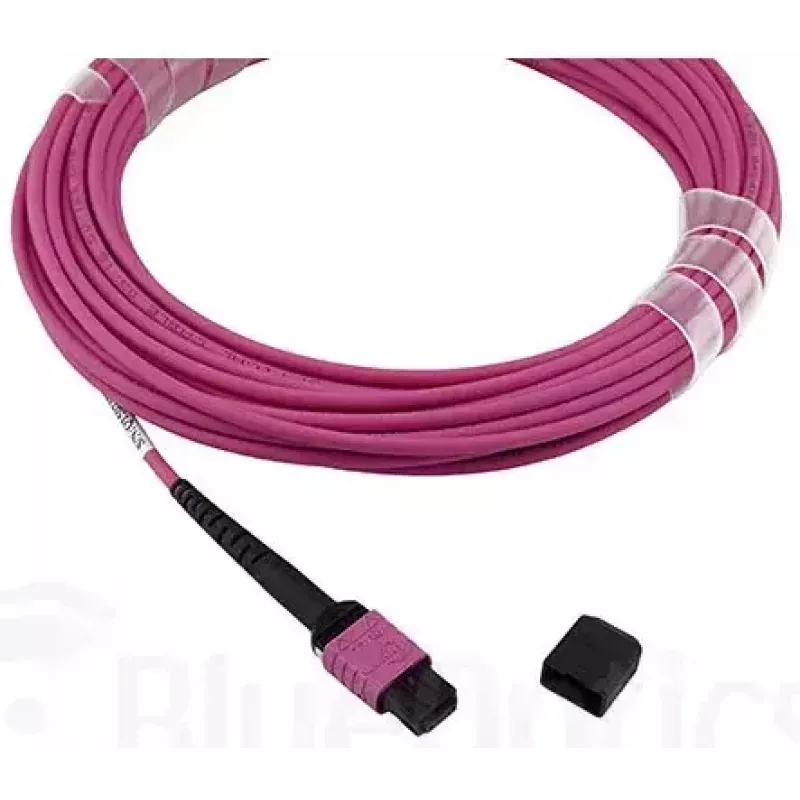

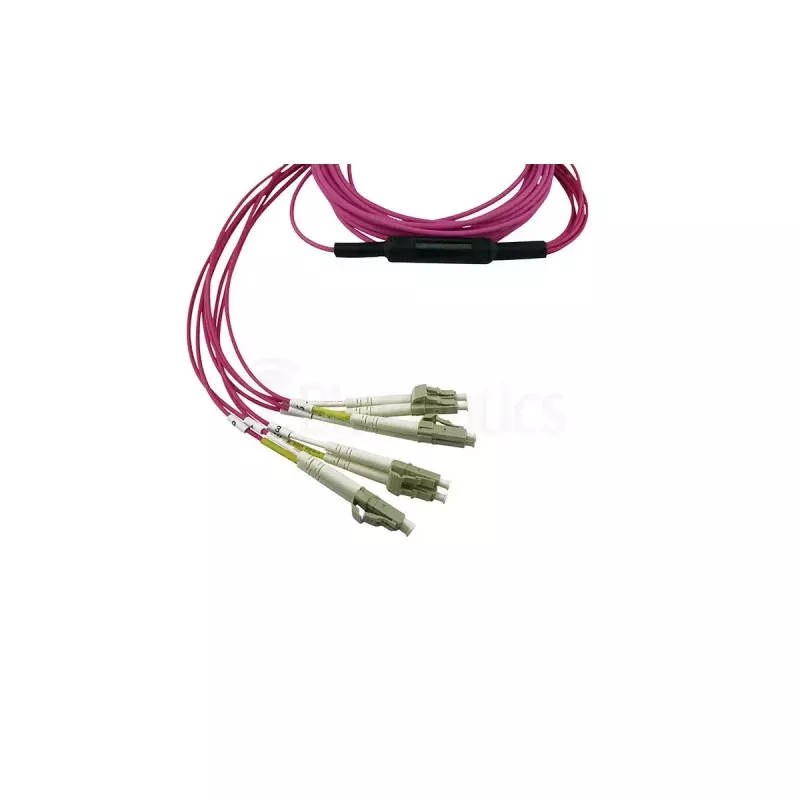

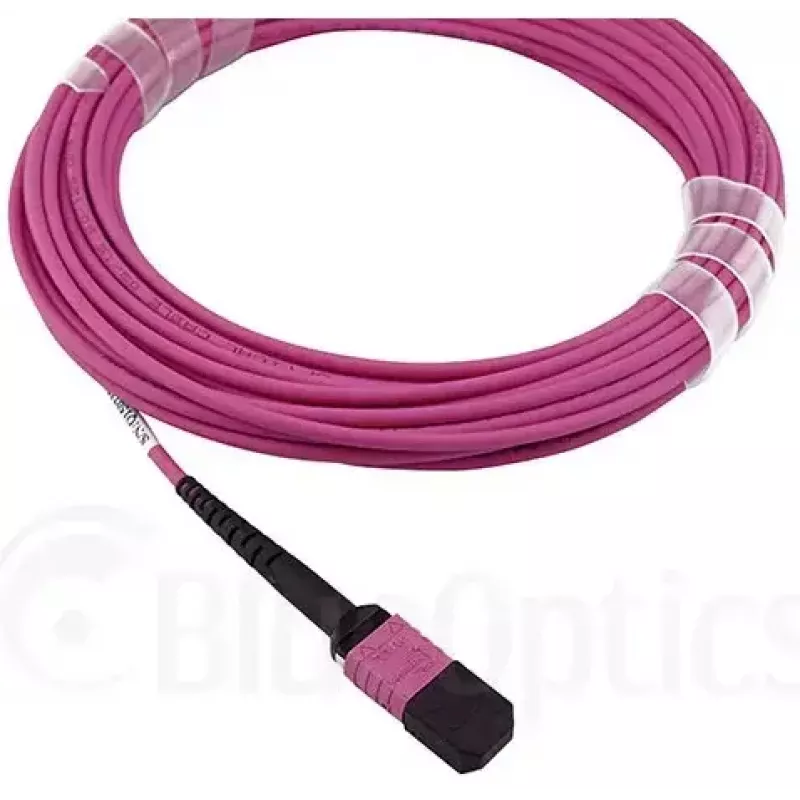

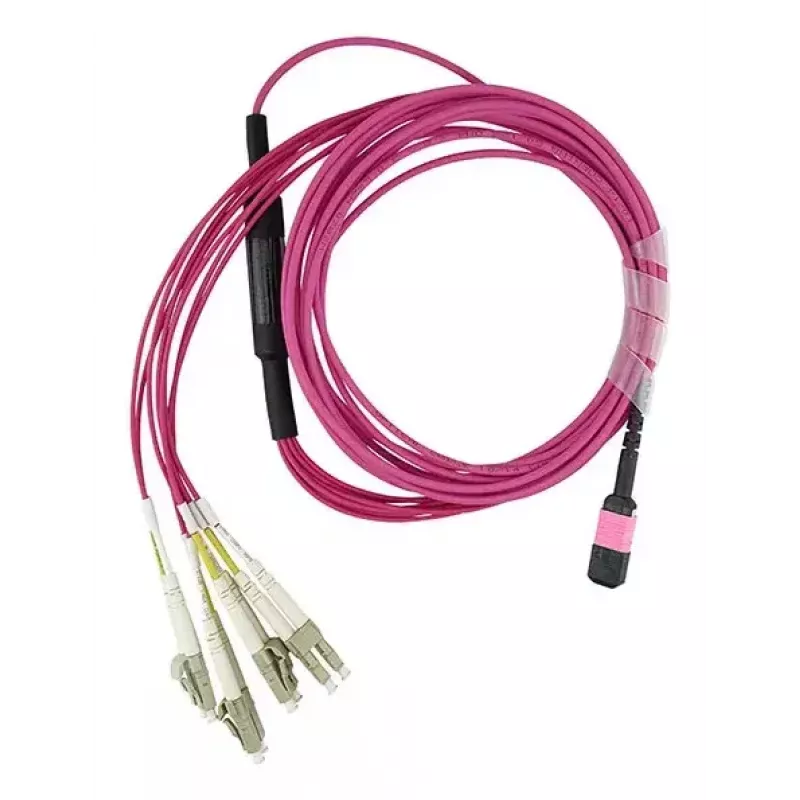

The BlueOptics 3HE13896AA-2-BO InfiniBand fibre optic cable 2 m MPO/UPC is a multi‑fiber OM4 duplex link assembly designed for high‑speed data transmission in data centre and enterprise network environments. The cable combines an MPO/UPC multi‑fibre connector on one end with 4x LC connectors on the other, enabling connection between parallel transceiver modules and multiple LC ports. With a two‑metre jacket and OM4 graded glass, it supports increased bandwidth and reduced modal dispersion for fast, reliable links over short to medium distances.

Advantages

This MPO to 4x LC assembly provides compact parallel connectivity, reducing cable bulk compared with multiple separate duplex cables. OM4 fibre increases bandwidth and extends reach for high‑density applications, while the MPO/UPC termination ensures precise alignment for low insertion loss. The pre‑terminated construction simplifies installation and reduces deployment time in racks and patch panels.

Suitable for

• High‑density switch‑to‑switch and switch‑to‑server connections in data centres
• InfiniBand interconnects and parallel optics transceivers (e.g., QSFP) requiring MPO to LC breakout
• Patching between MPO trunks and LC patch panels or directly into LC ports on network equipment
• Short‑ to medium‑reach 10/40/100 Gbps links where OM4 performance is required

Key specifications

• Cable length: 2 m
• Fibre type: OM4 multimode
• Connector A: MPO (UPC polish), multi‑fibre
• Connector B: 4 × LC (UPC polish), duplex-style connectors
• Configuration: MPO to 4x LC breakout
• Application: Parallel optics/InfiniBand and high‑speed Ethernet patching

How to use

Route the cable from the MPO port on the transceiver or trunk to the intended patch panel or device. Align and insert the MPO connector into the MPO receptacle until it clicks, then connect each LC duplex plug to the corresponding LC port, observing transmit/receive mapping and polarity requirements. Use appropriate bend radius practices and secure the cable in management trays or cable ties to prevent strain. Verify link status and light levels after installation to confirm correct connectivity.

Recommendations

For best performance, maintain the minimum bend radius specified for multimode fibres, keep connectors clean using proper fibre cleaning tools before mating, and follow polarity mapping guidelines for MPO to LC breakouts. Use OM4‑rated patch panels and transceivers to take full advantage of the fibre's bandwidth characteristics.
