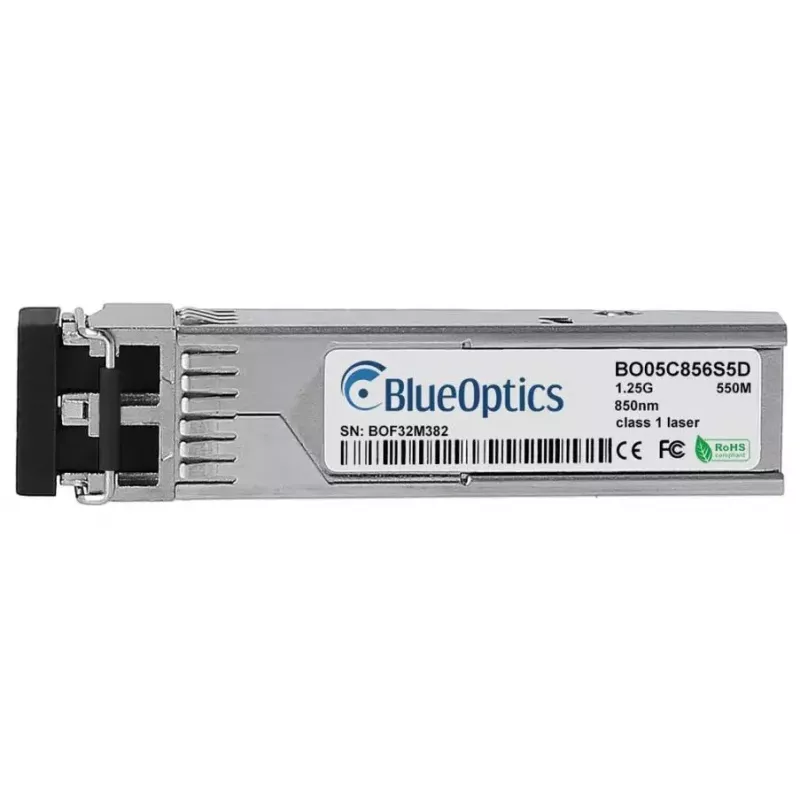

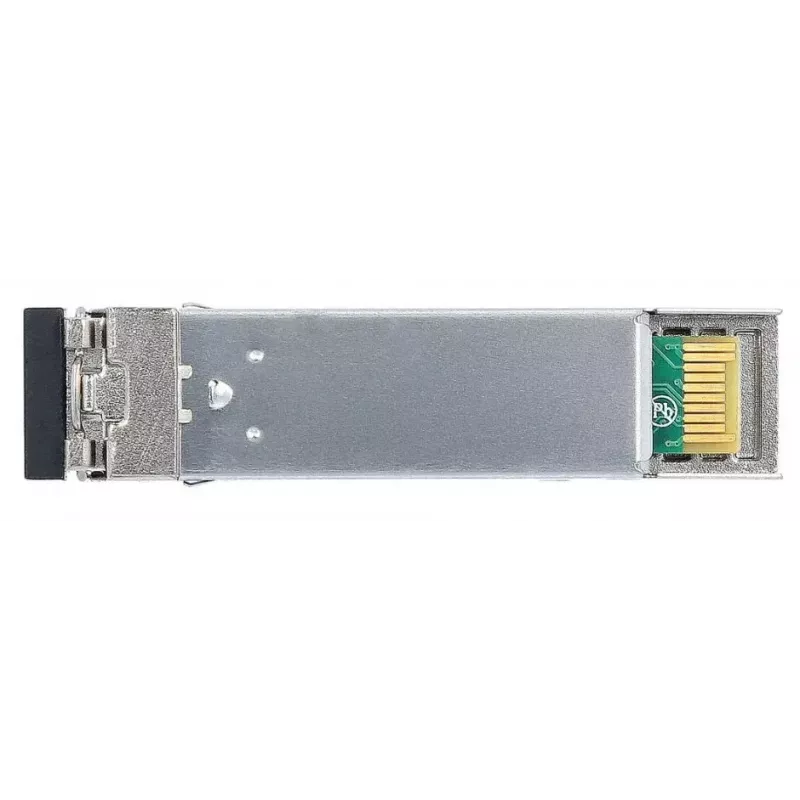

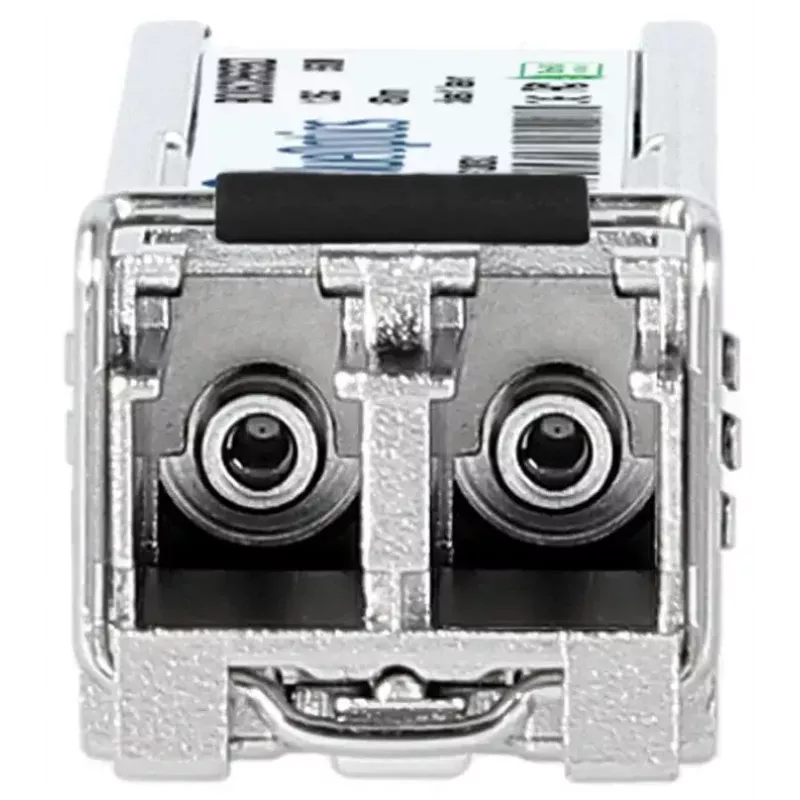

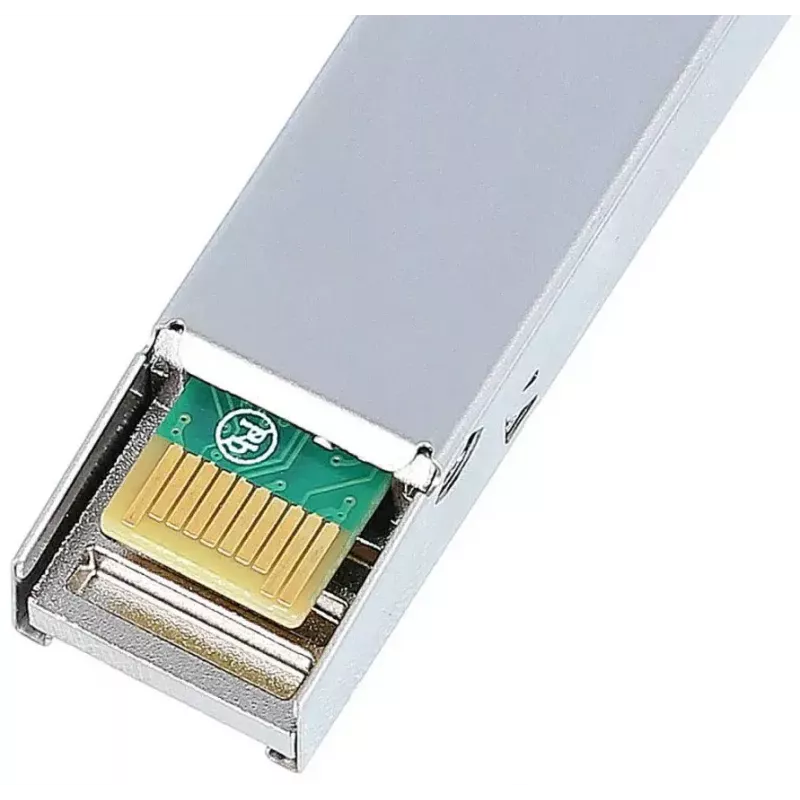

Fiber optic transceiver module BlueOptics R9F86A-BO 1250 Mbit/s SFP 850 nm

The BlueOptics R9F86A-BO 1250 Mbit/s SFP 850 nm is a hot-pluggable fiber optic transceiver module designed for short-range multimode fiber links. Supporting a maximum data transfer rate of 1250 Mbit/s and operating at an 850 nm wavelength, this SFP transceiver uses a standard 3.3 V supply and fits into SFP ports of switches, routers and media converters. The compact module, weighing approximately 20 g, is intended for reliable data transmission in enterprise and data center networking environments where 1 Gbit/s-class links over multimode fiber are required.

Advantages

The BlueOptics R9F86A-BO provides a standardized SFP form factor for easy installation and replacement without interrupting system operation. Its 850 nm VCSEL-based optical interface is optimized for short-distance multimode fiber connectivity, delivering stable performance at up to 1250 Mbit/s. Low weight and low power consumption from the 3.3 V supply reduce strain on equipment bays and help maintain efficient rack installations. Compatibility with common SFP ports ensures interoperability with a wide range of network hardware that supports 1x SFP transceivers.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP transceiver into an empty SFP port on a compatible switch, router or media converter while the host device is powered on or off, depending on equipment guidelines. Connect the appropriate multimode fiber patch cable (with matching connectors) to the optical port. Verify link status through the host device management interface or status LEDs. If necessary, configure the interface settings on the host to match the intended network speed and duplex mode. Follow standard ESD precautions when handling the module and keep the optical dust caps in place until connection.

Recommendations

Use short-length multimode fiber cables (OM1/OM2/OM3 as appropriate) and maintain clean connector endfaces to ensure optimal signal quality. Confirm compatibility with the host device's supported SFP transceivers and firmware. Store unused modules with dust caps in a dry, temperature-stable environment to prevent contamination or damage.
