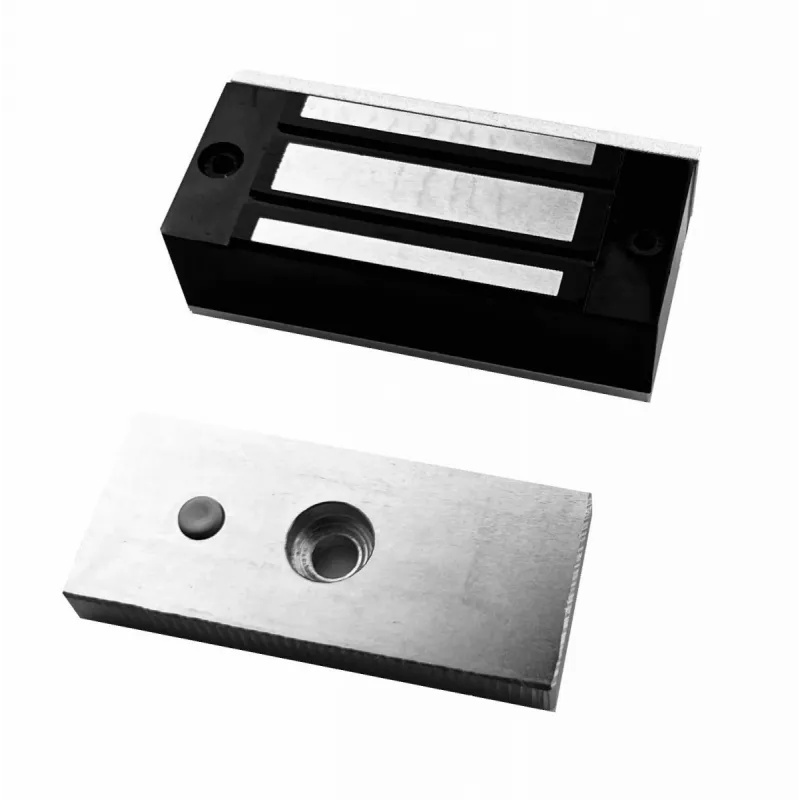

BIRA HARTTE MG60S Electromagnetic Lock 60kg

The BIRA HARTTE MG60S is a high-quality electromagnetic lock designed for access control systems, cabinets, drawers, and small doors. With a holding force of 60 kg (130 lbs), it provides reliable security for a variety of applications. The lock operates on 12V DC and features a fail-safe design, ensuring that the door unlocks automatically in case of power failure. Its surface mount design and anodized aluminum alloy construction make it durable and easy to install.

Advantages

This electromagnetic lock offers a robust holding force of 60 kg, low residual magnetism for quick release, and a wide operating temperature range from -10°C to +55°C. The silver finish provides a clean, professional look suitable for both commercial and residential settings.

Suitable for

• Access control systems for small doors and cabinets
• Drawer locking mechanisms
• Security gates and enclosures

Key specifications

• Holding Force: 60 kg (130 lbs)
• Operating Voltage: 12V DC
• Current Draw: 120 mA
• Lock Type: Electromagnetic (Fail-Safe)
• Mounting Type: Surface Mount
• Lock Body Material: Anodized Aluminum Alloy
• Armature Plate Material: Steel
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 0-90% (non-condensing)
• Armature Plate Dimensions: 75 x 33 x 9 mm
• Connection: 2-Wire
• Finish: Silver

Recommendations

For optimal performance, ensure the lock is mounted on a clean, flat surface and that the armature plate aligns properly with the lock body. Use a regulated 12V DC power supply to avoid damage.
