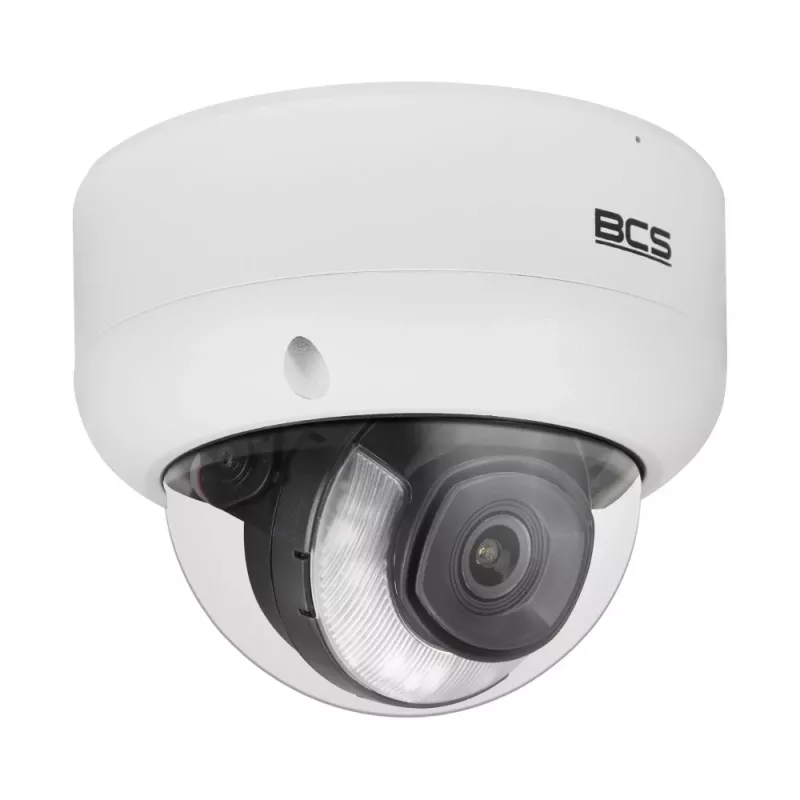

BCS IP Dome Camera 6MP BCS-L-DIP16FCR3L3-Ai

The BCS-L-DIP16FCR3L3-Ai is a high-performance 6 Megapixel IP dome camera designed for professional surveillance. Featuring a 1/2.8" Progressive Scan CMOS sensor, it delivers crisp 3072x2048 resolution at 20fps. With motorized varifocal lens (2.7-13.5mm), 120dB True WDR, and AI functions including perimeter protection, SMD Plus, and face detection, this camera ensures reliable security in demanding environments. Built with a metal casing and rated IP67/IK10, it withstands harsh conditions.

Advantages

Exceptional image quality with 6MP resolution and 120dB WDR for clear footage in high-contrast scenes. AI-powered analytics reduce false alarms. Motorized lens allows remote adjustment. Robust metal housing with IP67 and IK10 ratings ensures durability.

Suitable for

• Perimeter surveillance
• Retail and commercial premises
• Industrial sites
• Outdoor areas requiring vandal-resistant cameras

Key specifications

• Image Sensor: 1/2.8" 6MP Progressive Scan CMOS
• Max Resolution: 3072x2048
• Frame Rate: 20fps@6MP, 25/30fps@4MP
• Lens: Motorized Varifocal 2.7-13.5mm
• IR Range: Up to 30m
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• WDR: 120dB True WDR
• Min Illumination: 0.005 Lux (Color), 0 Lux (IR on)
• AI Functions: Perimeter Protection, SMD Plus, Face Detection
• Audio: Built-in Mic, 1/1 Audio I/O
• Alarm: 1/1 Alarm I/O
• Local Storage: MicroSD up to 256GB
• Network: RJ-45 10/100Base-T
• Power: DC12V, PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -30°C to +60°C
• Material: Metal Casing

Recommendations

For optimal performance, use with a PoE switch or DC12V power supply. Ensure proper mounting for best field of view.
