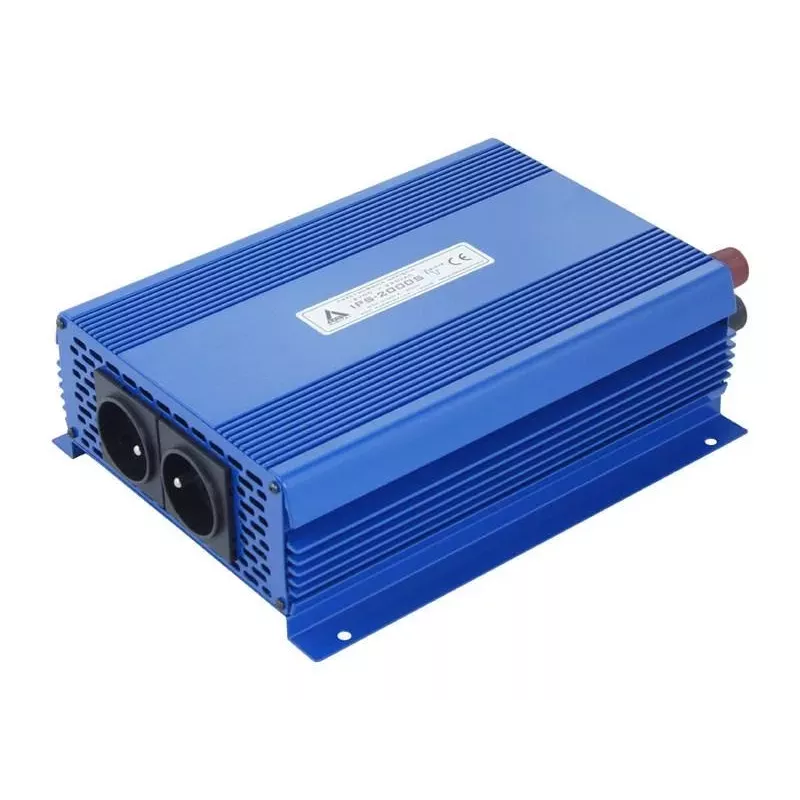

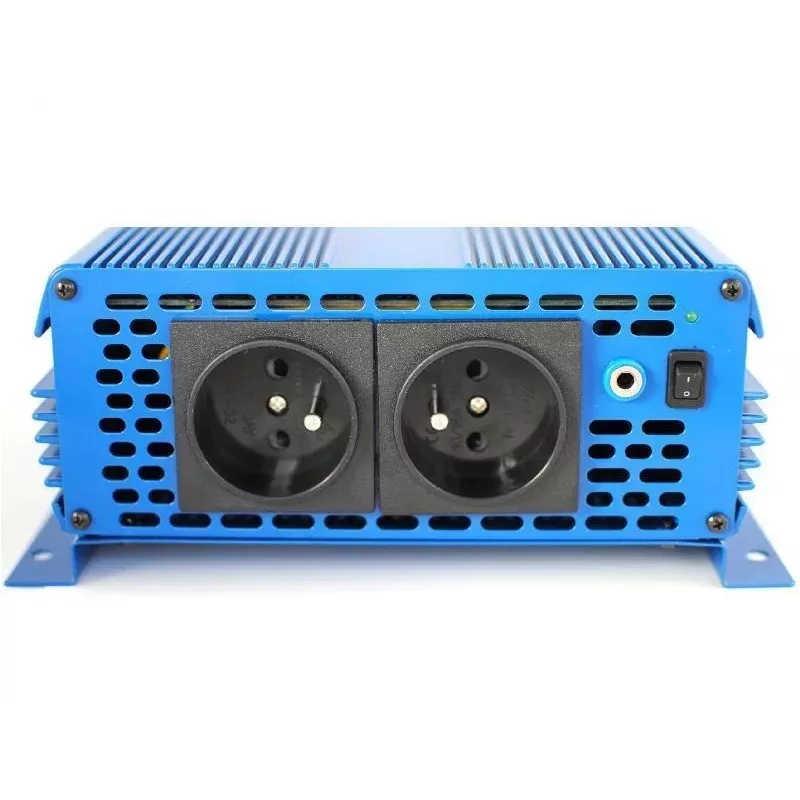

AZO Digital 24 VDC / 230 VAC ECO MODE SINUS IPS-2000S 2000W Voltage Converter

The AZO Digital IPS-2000S is a high-performance pure sine wave voltage converter designed to convert 24 V DC to 230 V AC, delivering a continuous power output of 2000 W and a peak surge of 4000 W. Ideal for off-grid, mobile, and backup power applications, this inverter features ECO mode for energy saving, intelligent fan cooling, and comprehensive protection against overload, short circuit, over/under voltage, and over temperature.

Advantages

Pure sine wave output ensures compatibility with sensitive electronics. ECO mode reduces no-load power consumption. Compact design with intelligent cooling for reliable operation. CE and RoHS certified for safety and environmental compliance.

Suitable for

• Off-grid solar systems
• Caravans, boats, and RVs
• Emergency backup power
• Mobile workshops and field operations

Key specifications

• Continuous Power: 2000 W
• Peak Power: 4000 W
• Input Voltage: 24 V DC (21-30 V range)
• Output Voltage: 230 V AC
• Output Waveform: Pure Sine Wave
• Output Frequency: 50 Hz
• Efficiency: >92%
• No-load Current: <0.7 A
• Protections: Overload, Short Circuit, Over/Under Voltage, Over Temperature

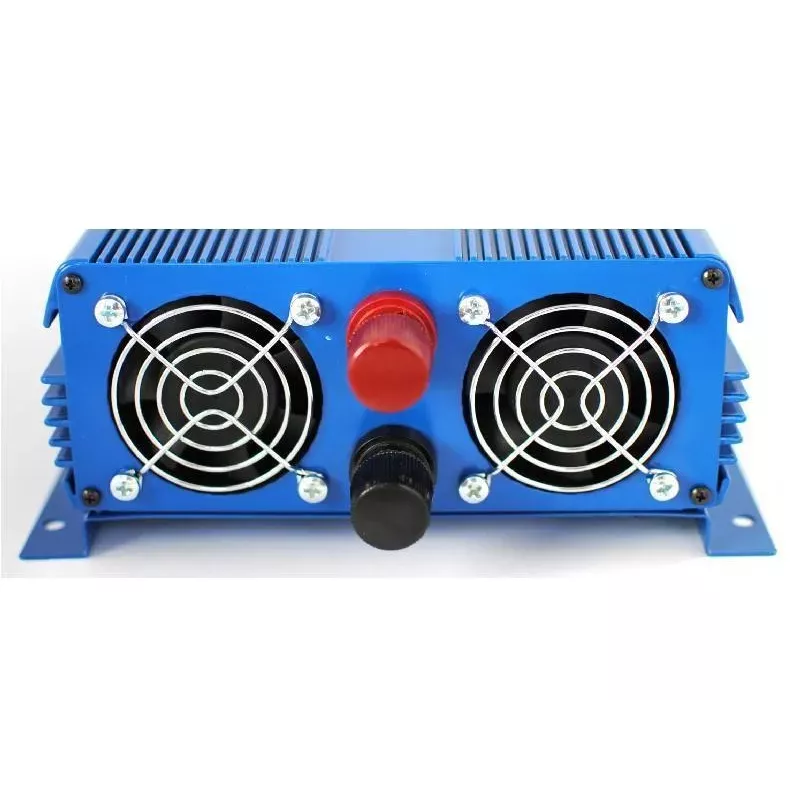

• Cooling: Intelligent Fan
• Operating Temperature: -10°C to +50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure the DC input is within 21-30 V and use appropriate cable gauge for high current. The ECO mode can be adjusted to suit your load requirements.
