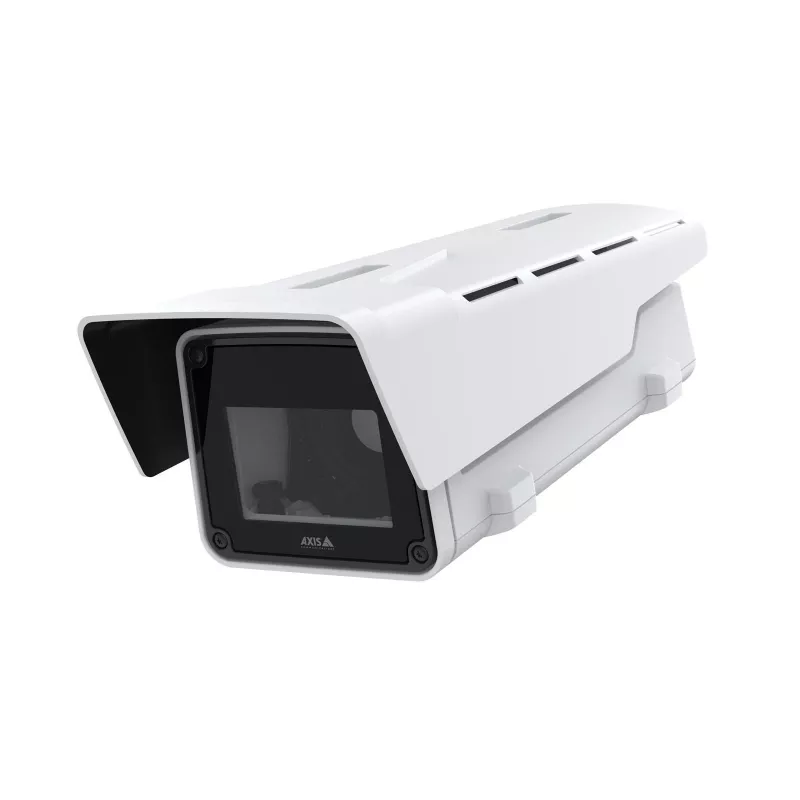

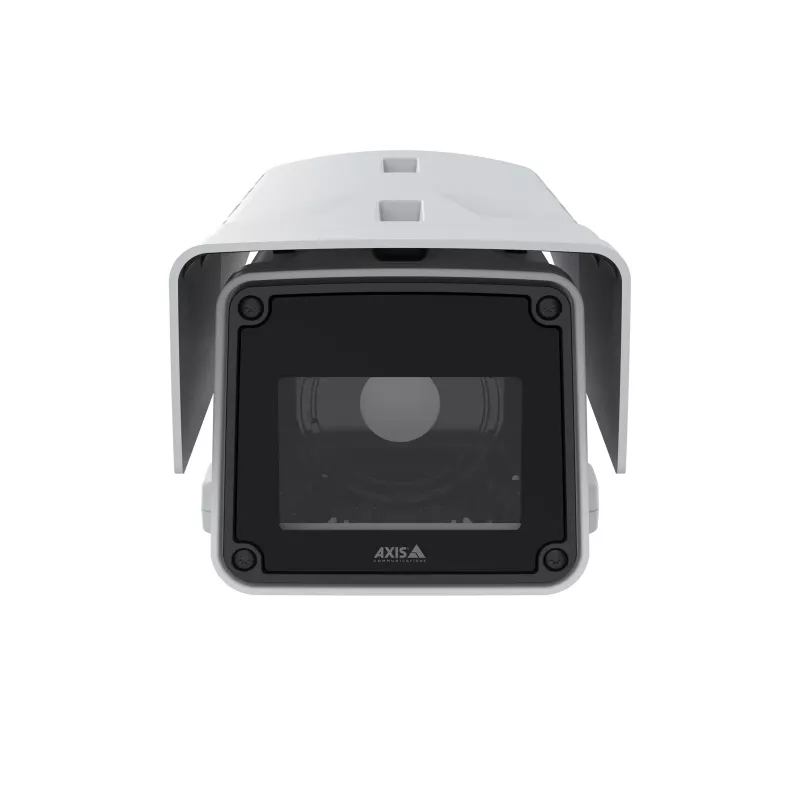

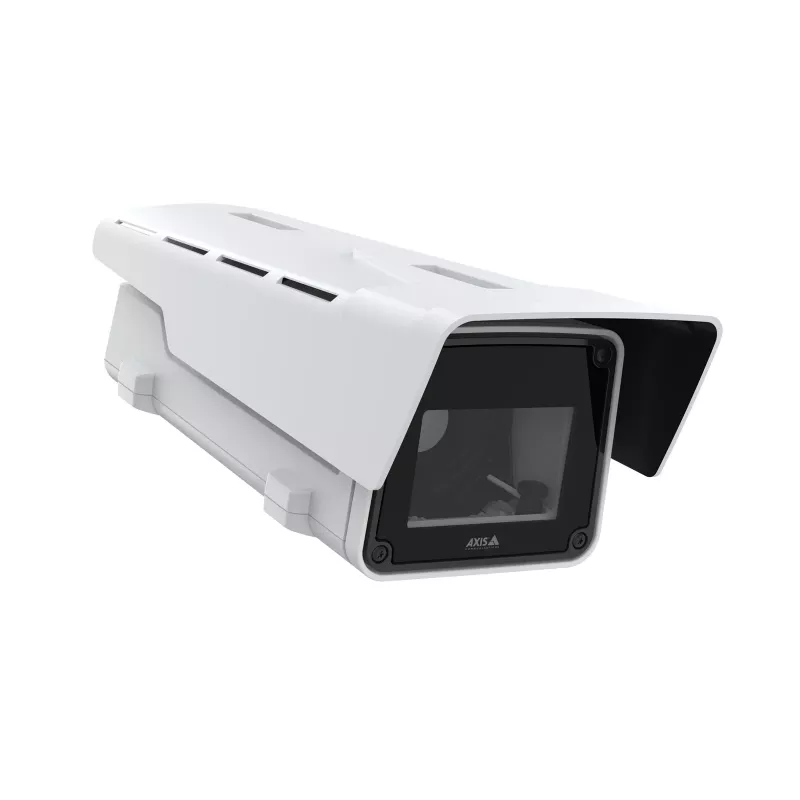

AXIS Q1656-BE 4MP Box Network Camera (No Lens)

The AXIS Q1656-BE is a high-performance 4MP box network camera designed for professional surveillance in demanding environments. This camera body (without lens) offers exceptional flexibility, allowing integrators to choose the optimal lens for specific monitoring requirements. Built on the AXIS ARTPEC-7 platform, it delivers superior image quality with Lightfinder 2.0 and Forensic WDR, ensuring clear identification even in challenging lighting conditions. The robust metal housing is rated IP66, IP67, and NEMA 4X, making it suitable for outdoor and harsh indoor installations. With support for AXIS Object Analytics and edge-based storage, the Q1656-BE is ideal for critical infrastructure, city surveillance, and industrial sites.

Advantages

Choose the AXIS Q1656-BE for its unmatched flexibility in lens selection, enabling tailored field-of-view for each installation. Benefit from advanced analytics capabilities, including object detection and classification, directly on the camera. The rugged design withstands extreme temperatures, moisture, and dust, ensuring reliable operation in any environment. With support for Power over Ethernet (PoE) and optional Power over Ethernet+ (PoE+), installation is simplified and cost-effective.

Suitable for

• City surveillance and public safety
• Industrial and manufacturing facilities
• Transportation hubs (airports, train stations)
• Critical infrastructure (power plants, data centers)
• Large commercial and retail premises

Key specifications

• 4MP resolution (2592x1944) at up to 25/30 fps
• 1/1.8" progressive scan RGB CMOS sensor
• Lightfinder 2.0 and Forensic WDR for superior low-light performance
• AXIS Object Analytics with object classification (humans, vehicles)
• Zipstream technology for efficient bandwidth and storage
• Edge storage with microSD/microSDHC/microSDXC slot (up to 512 GB)
• IP66, IP67, and NEMA 4X rated housing
• Operating temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
• Dimensions: 174 x 81 x 78 mm (6.9 x 3.2 x 3.1 in)
• Weight: 1.2 kg (2.6 lb)

Recommendations

For optimal performance, pair the AXIS Q1656-BE with a compatible CS-mount lens (sold separately). Consider the AXIS T94B01P Corner Bracket for flexible mounting options. For extended storage, use AXIS Surveillance Cards or network video recorders.
