IP security camera VIVOTEK VC9101 2688x1520 48x digital zoom

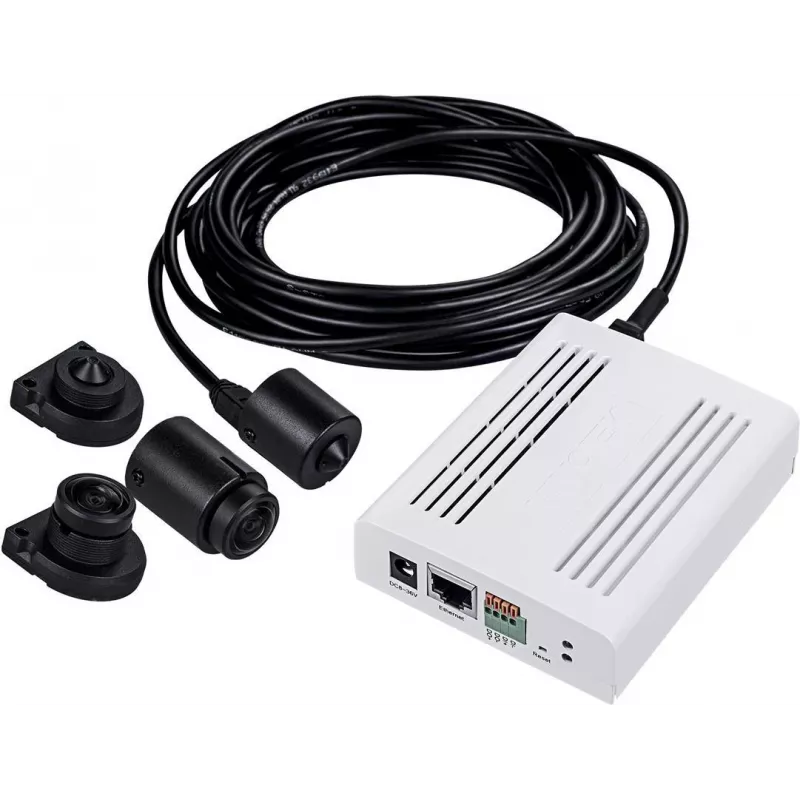

The VIVOTEK VC9101 is a split-type indoor IP security camera system designed for discreet and flexible surveillance. The system separates a compact camera unit from a video core via a 5 m cable, allowing the tiny camera head to be installed unobtrusively in tight or stylish interiors. The VC9101 supports up to 2688 x 1520 resolution from compatible camera units and offers a 48x digital zoom together with a 48° vertical and 93° horizontal field of view. A CMOS sensor with a minimum illumination of 0.045 lx ensures usable images in low-light conditions while the video core can stream high-resolution fisheye or 16:9 images and implements hardware-accelerated deep learning for improved analytic performance.

Advantages

The split design enables flexible placement and minimal visual impact, reducing installation complexity in ATMs, retail spaces, banks, offices and other indoor locations. The powerful video core supports 5MP fisheye or 4MP 16:9 streaming and includes a CNN hardware accelerator for faster and more efficient deep-learning video analytics such as face detection. Image-quality features like WDR Pro, SNV and 3DNR plus secure-boot and signed firmware increase reliability and image clarity across diverse indoor conditions.

Suitable for

• Discrete surveillance in retail stores and boutiques
• Indoor monitoring of ATMs and bank counters
• Office security and reception areas
• Covert or limited-space installations behind ceilings or panels

Key specifications

• Image resolution: up to 2688 x 1520 pixels
• Sensor type: CMOS
• Digital zoom: 48x
• Vertical field of view: 48°
• Horizontal field of view: 93°
• Minimum illumination: 0.045 lx
• Video core streaming modes: 5MP 360° fisheye or 4MP 16:9
• Deep learning accelerator: CNN hardware support for VCA and face detection
• Image enhancement: WDR Pro, SNV, 3DNR, Smart Stream III
• Camera unit connectivity: 5 m cable between camera head and video core
• Security features: secure boot, signed firmware, Trend Micro cybersecurity

How to use

Install the compact camera unit in the chosen discreet location and route the included 5 m cable to the video core. Connect the video core to power and network according to the installation guide, then select the preferred streaming mode (5MP 360° fisheye or 4MP 16:9) in the camera configuration interface. Configure deep-learning VCA options and face-detection settings as required, and adjust WDR, SNV and Smart Stream III profiles to match indoor lighting conditions. Perform a functional check to verify image orientation, focus and analytics operation before finalizing any concealing or finishing works.

Recommendations

For reliable analytics and face detection, position the camera unit to minimize extreme backlight and reflective surfaces, and choose the streaming mode that best matches the monitored area. Use the video core’s hardware-accelerated CNN features to offload analytics processing and keep firmware up to date to maintain security protections.
