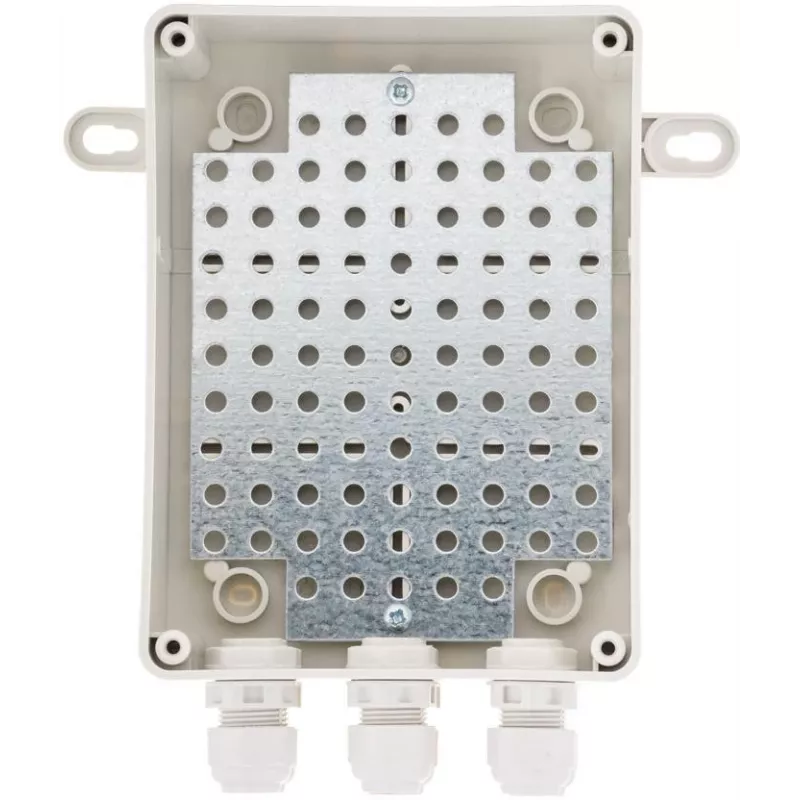

ATTE ABOX-S2 Outdoor Enclosure IP56 Light Grey

The ATTE ABOX-S2 is a robust outdoor hermetic enclosure designed to protect electronic devices, CCTV systems, and alarm equipment in demanding environments. With an IP56 rating and IK07 impact resistance, it offers reliable protection against dust, water jets, and mechanical shocks. The enclosure is made from durable ABS plastic with a light grey (RAL 7035) finish, making it suitable for both indoor and outdoor installations.

Advantages

High ingress protection (IP56) ensures resistance to dust and powerful water jets. The IK07 rating provides protection against impacts up to 2 joules. The ABS material offers excellent UV resistance and long-term durability. The opaque screw-fastened lid with silicone gasket ensures a secure seal. Wall-mountable design with prepared cable gland entries simplifies installation.

Suitable for

• Protection of electronic devices in outdoor environments
• CCTV camera systems and surveillance equipment
• Alarm systems and security components
• Telecommunications and networking equipment

Key specifications

• Enclosure Type: Outdoor Hermetic Box
• IP Rating: IP56
• IK Rating: IK07
• Material: ABS Plastic
• Colour: Light Grey (RAL 7035)
• External Dimensions: 190 x 140 x 70 mm
• Internal Dimensions: 180 x 130 x 65 mm
• Lid Type: Opaque, Screw-fastened
• Mounting Type: Wall Mountable
• Operating Temperature: -25°C to +60°C
• Flammability Rating: UL94-V2
• Gasket Material: Silicone
• Cable Entry: Prepared for Cable Glands
• UV Resistance: Yes
• Number of Lid Screws: 4

Recommendations

For optimal installation, use appropriate cable glands (not included) to maintain the IP56 rating. Ensure the mounting surface is flat and secure. The enclosure is suitable for outdoor use but avoid prolonged exposure to extreme temperatures beyond the specified range.
