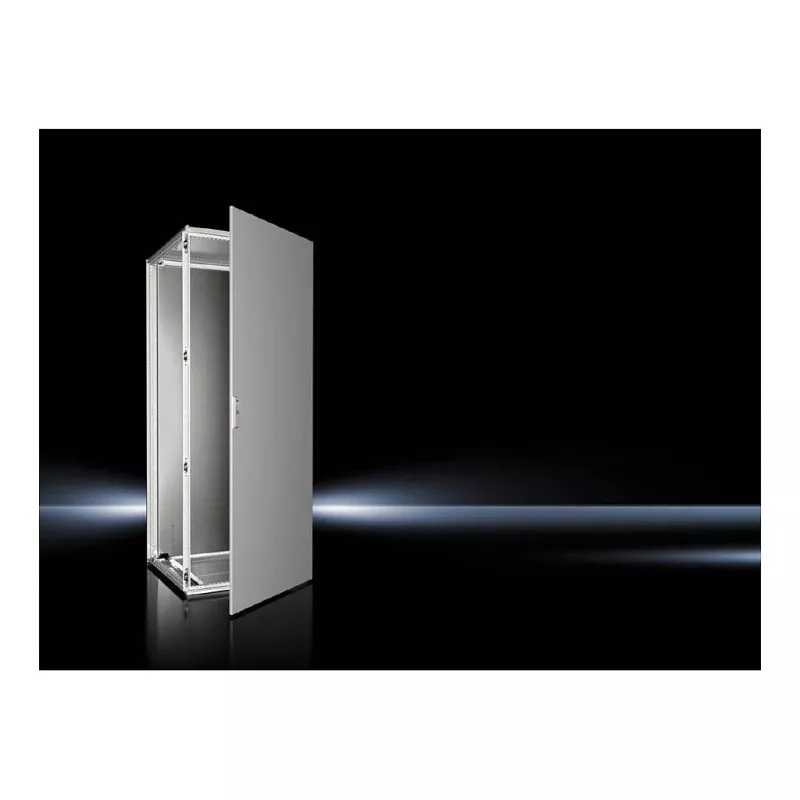

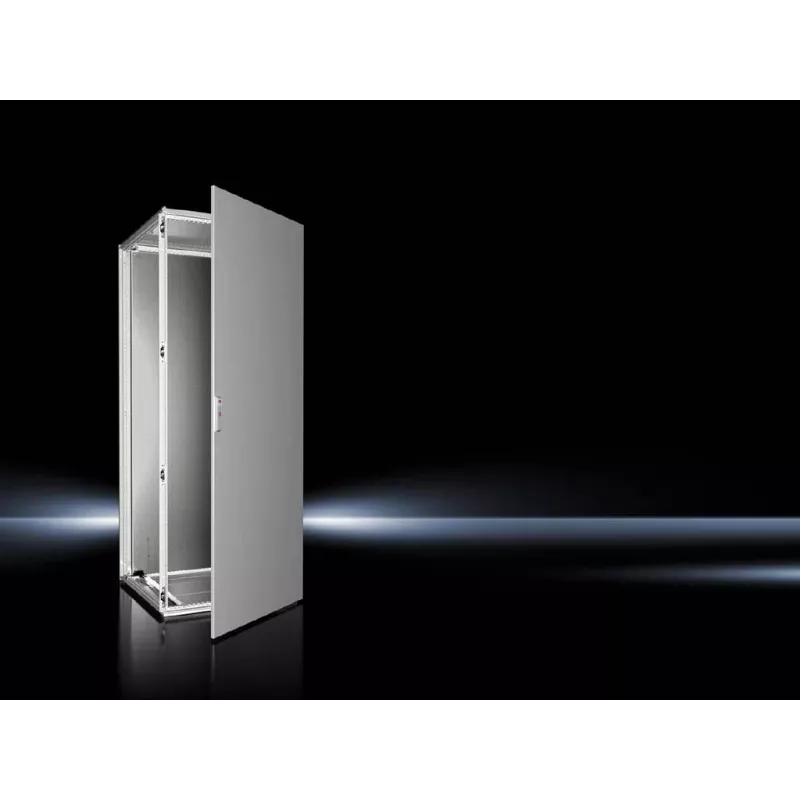

Rittal VX Baying Enclosure System, 1-Door, 800x2000x800 mm, IP55, RAL 7035

For industrial installations that demand scalability and rugged protection, the Rittal VX Baying Enclosure System stands out with its modular baying capability and high load capacity. This single-door enclosure, measuring 800 x 2000 x 800 mm, is engineered from sturdy sheet steel and finished in textured light grey (RAL 7035), offering a professional appearance and durable surface. Its IP55 and NEMA 12 ratings ensure reliable protection against dust and water jets, making it suitable for demanding environments. The enclosure includes a depth-adjustable mounting plate, removable rear panel and roof plate, and a modular base system for flexible cable entry, simplifying installation and maintenance.

Highlights

• Sturdy sheet steel construction with textured powder-coated finish in RAL 7035 (light grey)
• Protection rating IP55 and NEMA 12, safeguarding against dust and water jets
• One hinged front door with 130° opening angle for convenient access
• 4-point locking system with double-bit insert (3mm) for security
• Depth-adjustable mounting plate included, supporting up to 1500 kg
• Removable rear panel and roof plate for easy cable entry and installation
• Modular base system for flexible cable entry

In daily use

The VX enclosure is designed to simplify installation and maintenance. The door opens a full 130 degrees, allowing unobstructed access to internal components. The included mounting plate can be adjusted in depth to accommodate different component depths, optimizing space utilization. With a total load capacity of 1800 kg, this enclosure can handle heavy equipment while maintaining structural integrity. The removable rear panel and roof plate facilitate cable routing and system expansion.

Full specifications

• Product Type: Baying Enclosure System
• Material: Sheet Steel
• Dimensions (WxHxD): 800 x 2000 x 800 mm
• Number of Doors: 1
• Door Type: Front, hinged
• Protection Rating: IP 55
• NEMA Rating: NEMA 12
• Surface Finish: Powder-coated, textured RAL 7035 (Light Grey)
• Locking Mechanism: 4-point locking, double-bit insert 3mm
• Mounting Plate: Included, depth-adjustable
• Rear Panel: Included, removable
• Roof Plate: Included, removable
• Side Panels: Not included (optional for baying applications)
• Plinth/Base: Not included (optional accessory)
• Cable Entry: Modular base system for flexible cable entry
• Max. Load Capacity (Mounting Plate): 1500 kg
• Max. Load Capacity (Total): 1800 kg
• Door Opening Angle: 130°
• Approvals: UL, cUL, EAC, Germanischer Lloyd, VDE, TÜV

Final note

With its robust build, high load capacity, and modular design, the Rittal VX Baying Enclosure System is an excellent choice for creating scalable, protected installations in industrial settings.
