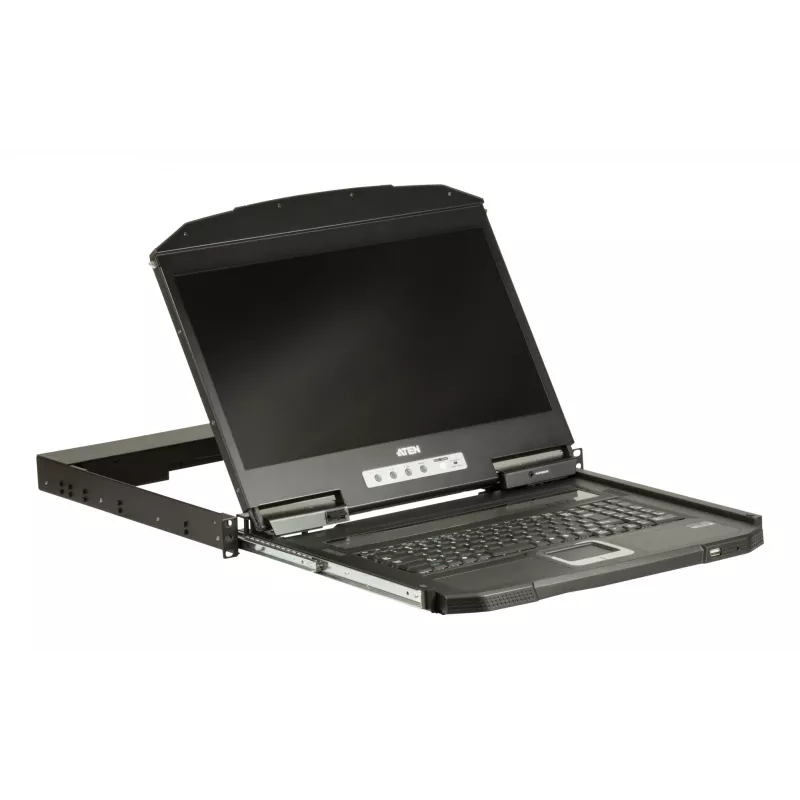

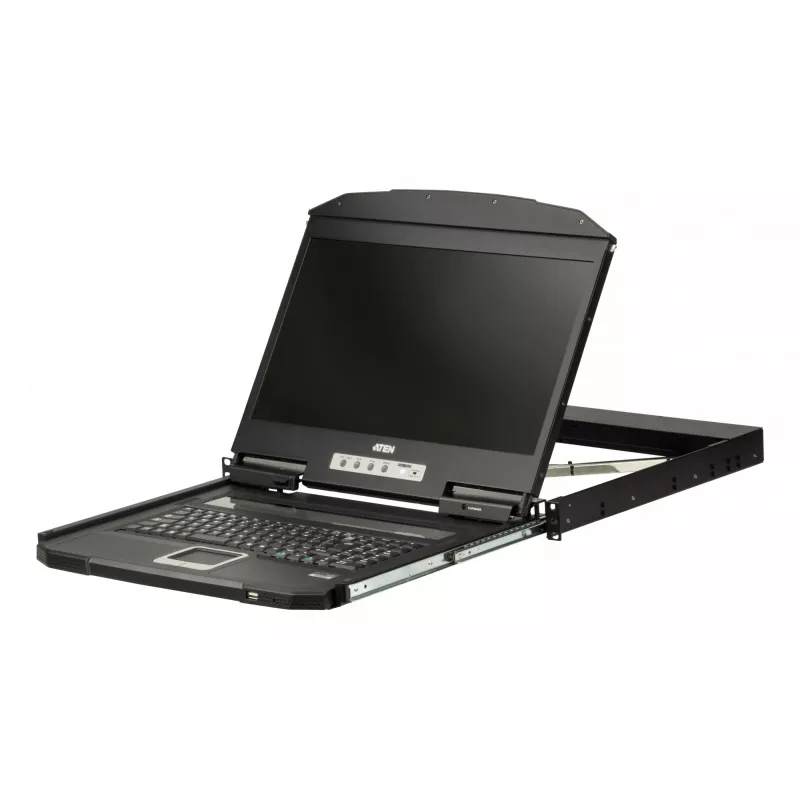

ATEN CL3100NX rack console 47 cm (18.5 inch) 1366 x 768 pixels Metal, Plastic Black 1U

The ATEN CL3100NX is a 1U short-depth single-rail rack console with an integrated 18.5" LED-backlit widescreen LCD, keyboard and touchpad. Its compact design fits standard 19" racks and is especially suitable for shallow cabinets, OB vans and compact control rooms where space is limited. The unit provides front-end sliding access for compatible VGA KVM switches and offers external-console connectivity for flexible management.

Advantages

The CL3100NX combines an 18.5" 1366 x 768 LED display with a built-in USB keyboard (QWERTZ layout) and USB touchpad, delivering a space-saving all-in-one console. Front-panel USB mouse port and rear ports for a second KVM console (USB keyboard/mouse and VGA monitor) add deployment flexibility. Additional mini stereo audio ports provide basic audio connectivity. The short-depth single-rail design and optional rack-mount kit support adaptive installation in shallow racks and mobile environments.

Suitable for

• Shallow 19" racks and cabinets
• Outside broadcast (OB) vans and mobile studios
• Compact control rooms and network closets
• Front-end console access for compatible VGA KVM switches

Key specifications

• Display: 18.5" TFT LED-backlit widescreen, 1366 x 768 @ 60 Hz
• Brightness / Contrast: 450 cd/m² / 1000:1
• Form factor: 1U short-depth single-rail rack console
• Keyboard port type: USB (QWERTZ layout)
• Mouse port type: USB; front-panel external USB mouse port
• Video port type: VGA; supports external console video up to 1920 x 1200 @ 60 Hz
• Materials / Color: Metal and plastic, black
• MPN / EAN: CL3100NX-DE / 4710469344145

How to use

Install the CL3100NX into a 19" rack space (1U) using the short-depth single-rail mounting. Connect the console to the compatible VGA KVM switch using the provided rear-panel USB and VGA connectors for keyboard, mouse and video. Optionally connect an external console or USB mouse to the front-panel port. Connect audio devices to the mini stereo ports if audio is required. Power the unit from a suitable AC source within the device's rated voltage range.

Recommendations

For best results in shallow or mobile installations, verify rack depth and compatibility with your VGA KVM switch before installation. Use the optional rack mount kit if specific mounting hardware is required.
