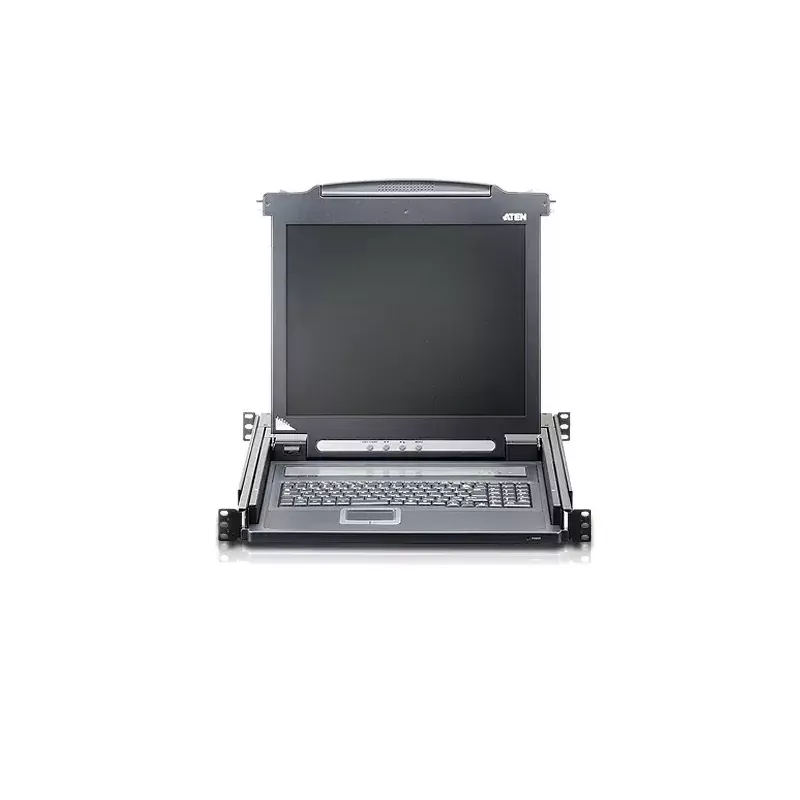

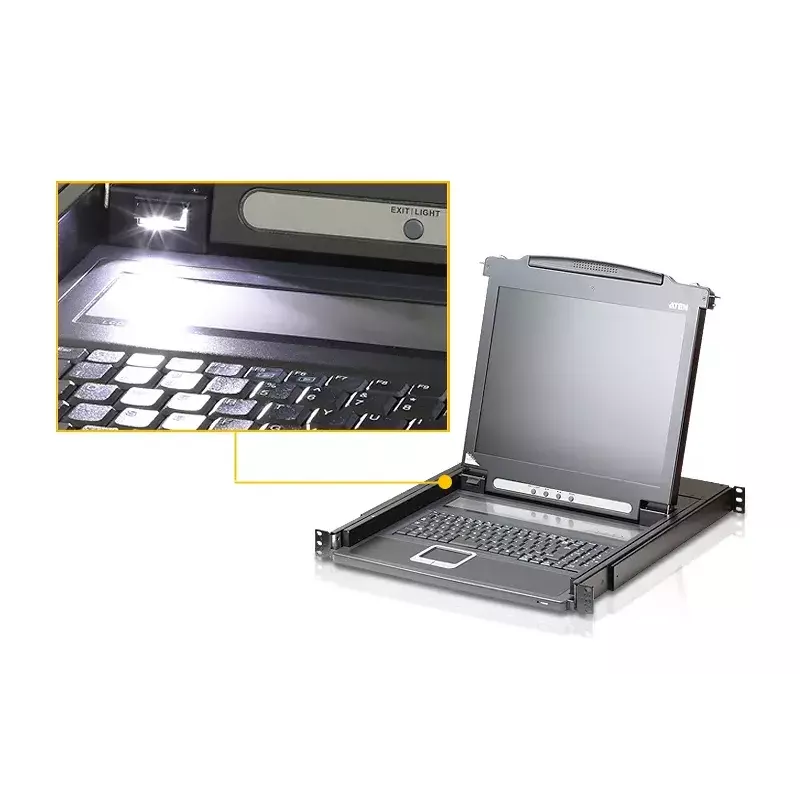

ATEN CL1000M KVM Switch Rack Mounting, Black

The ATEN CL1000M KVM Switch Rack Mounting, Black is a rack-mountable switch designed to control connected computer systems from a single keyboard, mouse and monitor console. The unit supports VGA video output at resolutions up to 2048 x 1536 and provides PS/2 keyboard and mouse connectivity. It is supplied with the necessary cables and rack-mount accessories for installation in server cabinets or equipment racks, making it suitable for data center and server-room environments that require compact console management.

Advantages

This KVM switch consolidates console access for multiple systems into a single, rack-friendly unit, reducing the need for separate keyboards, monitors and mice at each server. The support for high-resolution VGA output ensures clear on-screen detail for system administration and troubleshooting. PS/2 keyboard and mouse ports provide compatibility with legacy input devices. The included installation accessories simplify mounting and setup in standard 19-inch racks.

Suitable for

• Small server rooms and rack cabinets where space-efficient console access is required
• Data center environments managing a limited number of servers or appliances
• IT maintenance teams needing a dedicated console for system configuration and troubleshooting
• Legacy systems that use PS/2 keyboards and mice with VGA video

Key specifications

• Video interface: VGA, supports up to 2048 x 1536 resolution
• Keyboard interface: PS/2
• Mouse interface: PS/2
• Number of computers controlled: 1 (single target connection)
• Form factor: rack-mountable unit with included mounting accessories
• Colour: Black
• Weight: 12.02 kg

How to use

Mount the ATEN CL1000M into a standard equipment rack using the supplied brackets and screws. Connect the VGA, keyboard (PS/2) and mouse (PS/2) cables from the console to the switch, then connect the corresponding cables from the switch to the target computer systems. Power the unit and the connected computers, then switch console control to the desired system following the device's front-panel or keyboard command procedures. Verify display resolution settings on the connected systems to make full use of the supported VGA resolution.

Recommendations

Place the unit in a well-ventilated rack location and ensure cable runs are tidy to reduce strain on connectors. When using legacy PS/2 devices, confirm that the connected computers are configured to accept PS/2 input and that BIOS/OS settings match the desired keyboard and mouse behaviour.
