KVM switch ATEN CL5708M Rack mounting Black 1U 17 inch LCD

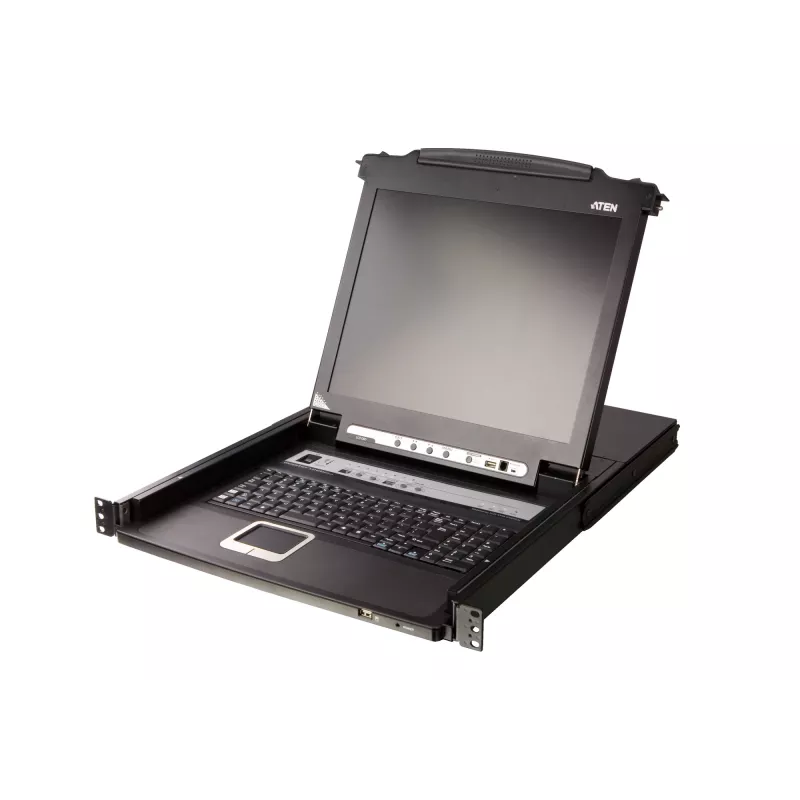

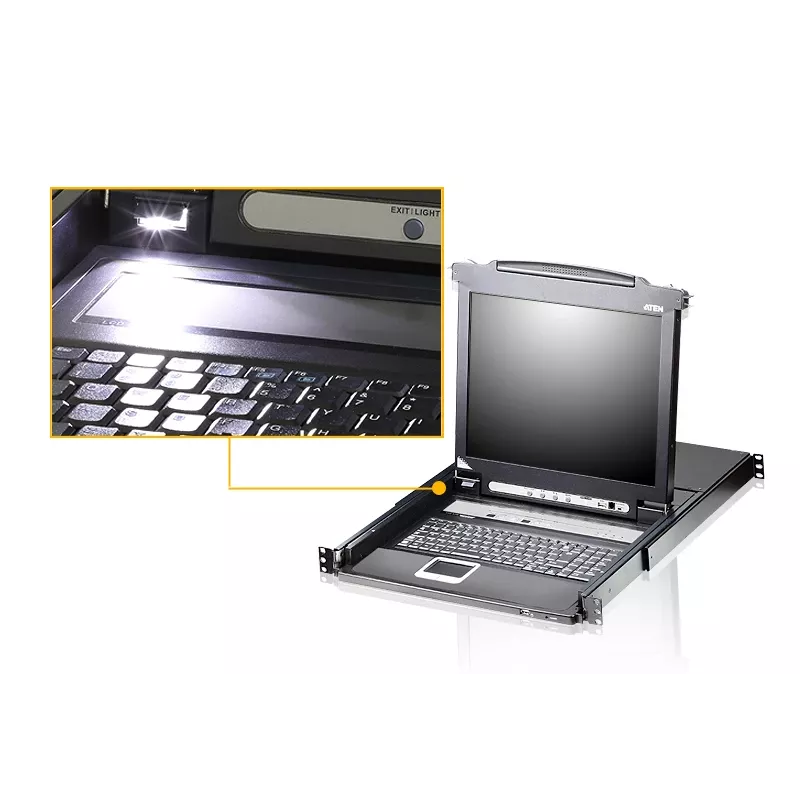

The ATEN CL5708M Slideaway is a 1U rack-mountable KVM switch with an integrated 17-inch LED-backlit LCD, keyboard and touchpad. It provides centralized control of multiple computers from a single PS/2 or USB console and supports video resolutions up to 1920 x 1200. The unit is built with a metal and plastic housing and a modular design that allows the KVM module to be detached for maintenance. Optional rack mount kits are available separately.

Advantages

The CL5708M saves rack space by combining a keyboard, 17" LCD monitor and touchpad in a sliding 1U housing while providing access to up to 8 or 16 computers from one console. It supports daisy-chaining additional switches to manage up to 256 systems from a single console. The modular construction simplifies servicing and replacement, and the unit supports both PS/2 and USB consoles for broad compatibility. An optional fingerprint identification module can be used to restrict access to the switch and connected servers.

Suitable for

• Server rooms and data centers where rack space is limited
• IT administrators who need centralized access to multiple servers
• Environments requiring quick local management of up to 256 systems via daisy-chaining

When it may not be suitable

This unit is intended for rack-mounted environments and may not be suitable for desktop or standalone use where 1U rack installation is not available. It also requires compatible PS/2 or USB connections on target computers and may not be the best option where only network-based remote management is required.

Key specifications

• Integrated display: 17-inch LED-backlit LCD
• Rack size: 1U, slideaway design
• Console interfaces: PS/2 and USB keyboard/mouse support
• Maximum video resolution: 1920 x 1200 pixels
• Control capacity: base unit controls up to 8 or 16 computers; supports daisy-chaining to manage up to 256 computers
• Housing: metal and plastic construction
• Optional security: fingerprint identification support (optional module)

How to use

Install the CL5708M in a standard 19-inch equipment rack using the appropriate rack mount kit. Connect the console keyboard, video and mouse to the integrated KVM console. Attach cables from the switch ports to each server using the supported PS/2 or USB interfaces. Configure daisy-chaining if you need to expand control to additional switches, and enable optional access control features such as fingerprint identification if required. Use the front-panel controls or on-screen display to switch between connected computers and adjust video settings.

What to consider before purchase

• Ensure your rack has a free 1U slot and compatible mounting hardware
• Confirm target computers have PS/2 or USB keyboard/mouse ports for KVM connections
• Check the required maximum video resolution and monitor size meet your needs
• Decide if optional fingerprint access control or additional rack kits are needed

Recommendations

Place the unit in a well-ventilated rack position, use high-quality KVM cabling for reliable signal transmission, and plan cable routing to allow the slideaway drawer to move freely for maintenance and local access.
