Rack console VALUE 26.99.0132 — 19 inch (48.3 cm) 1366×768 LCD, 1U, Swiss keyboard, black

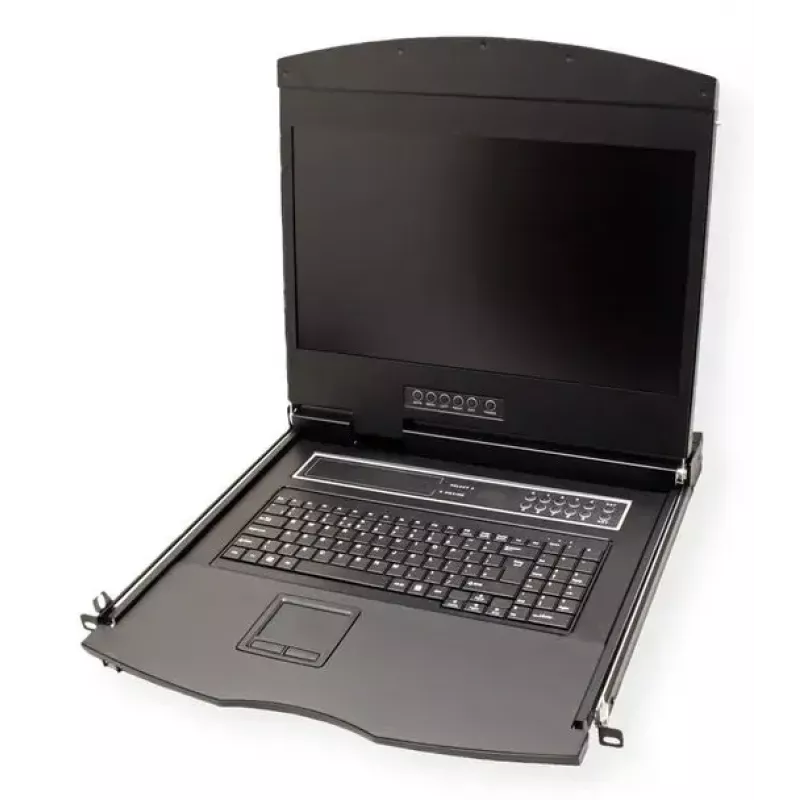

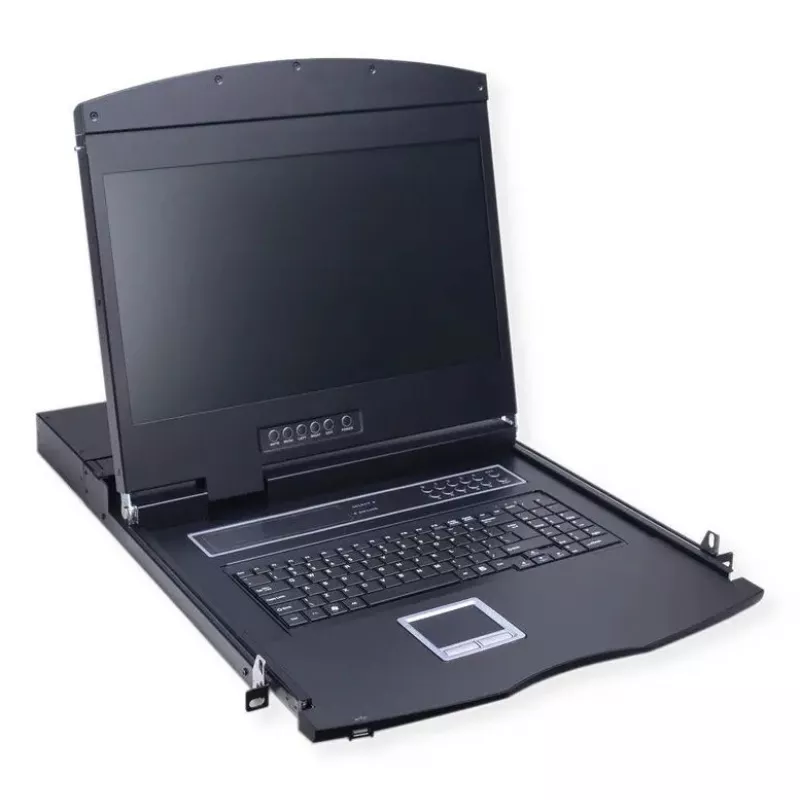

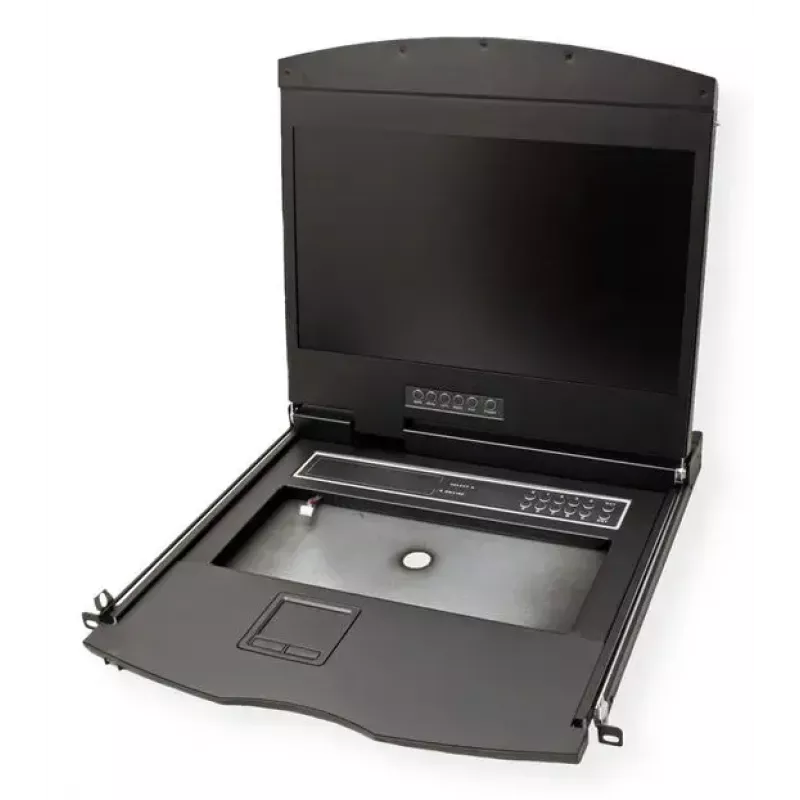

VALUE 26.99.0132 is a 1U rack console that integrates a 19" (48.3 cm) 1366×768 TFT monitor, a full keyboard with Swiss layout and an integrated touchpad in a compact housing for 19" server cabinets and network racks. The unit provides a low-profile local management station for on-site configuration, monitoring and maintenance. It ships with AC and USB cables and features telescopic slides and a secure locking mechanism for safe storage and easy access.

Advantages

The console delivers a space-saving 1U design that combines display, keyboard and pointing device into a single unit, reducing the need for separate peripherals in the rack. With 250 cd/m² brightness and a 1000:1 contrast ratio, the 19" LCD supports clear on-screen visibility for text-based management interfaces. Telescopic slides and a wide palm rest area on the keyboard improve ergonomics and access, while the secure lock protects equipment and prevents unauthorized use.

Suitable for

• Local server configuration and troubleshooting in data centers and server rooms
• On-site network equipment setup and maintenance in telecom and rack environments
• Temporary access during installation, firmware updates and emergency recovery

Key specifications

• Screen size: 48.3 cm (19") TFT
• Native resolution: 1366 × 768 pixels
• Brightness: 250 cd/m²
• Contrast ratio: 1000:1
• Form factor: 1U rack-mount console with telescopic slides

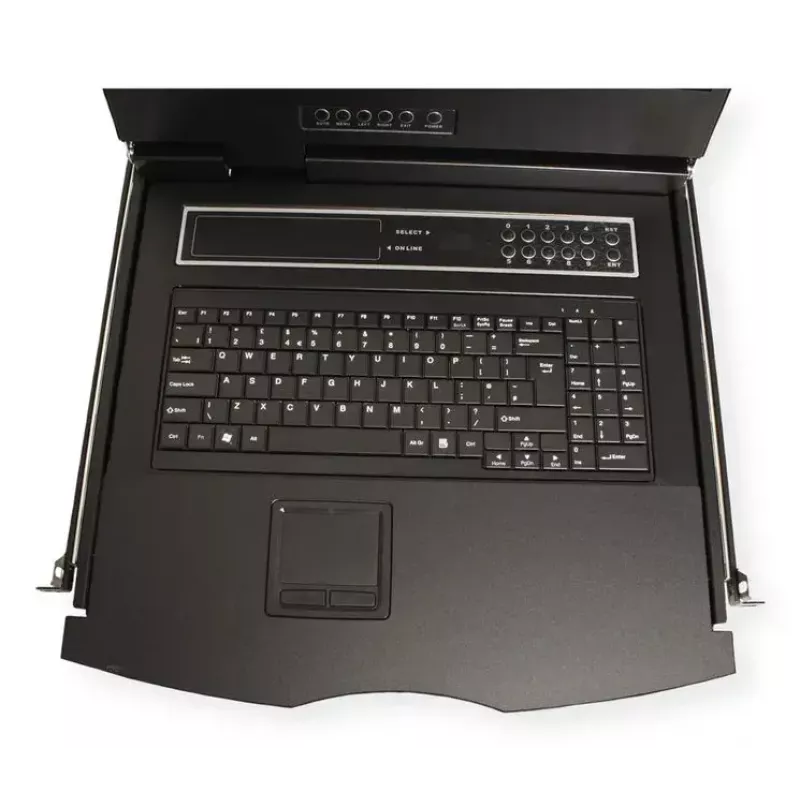

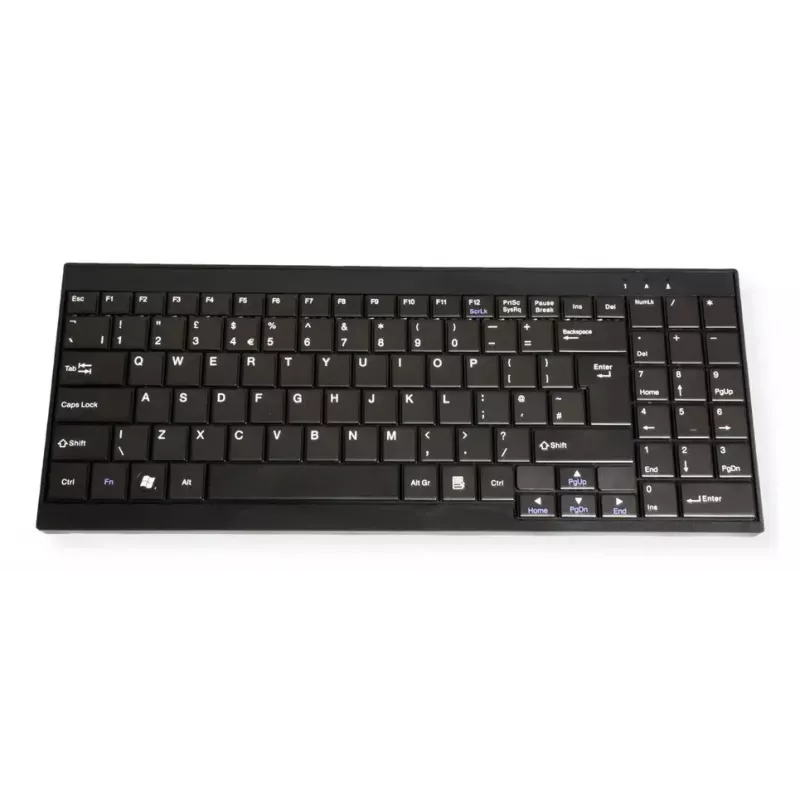

• Integrated keyboard: Swiss layout with wide palm rest
• Pointing device: integrated touchpad
• Color: black
• Dimensions (W×H×D): 445 × 45 × 467 mm

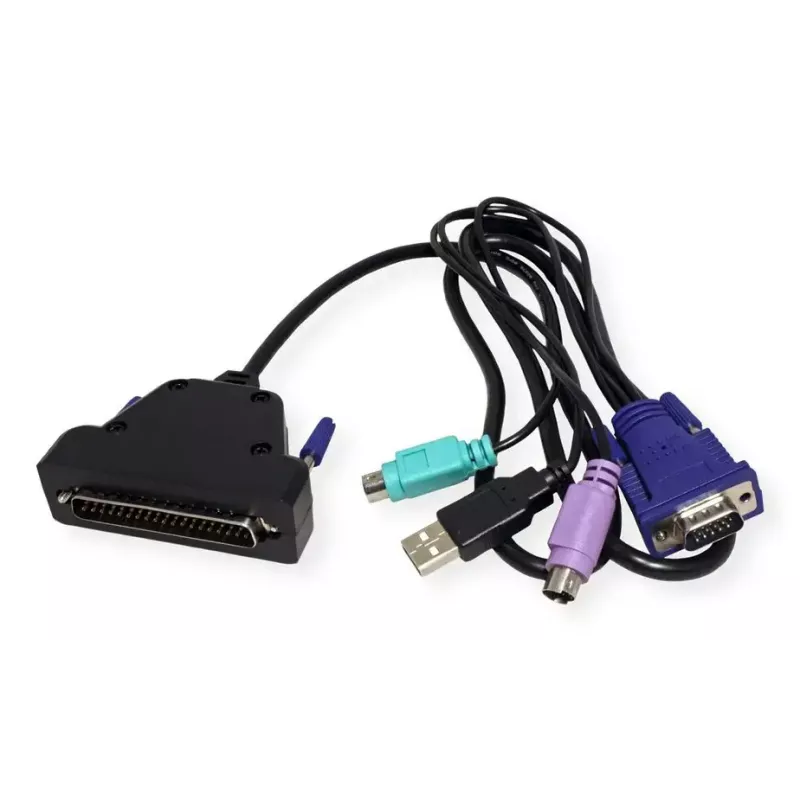

• Included cables: AC and USB

How to use

Install the console into a standard 19" rack occupying one unit (1U) of height and secure it using the provided mounting brackets and telescopic slides. Connect the console to the target server or KVM switch using the supplied USB cable for keyboard and touchpad signals and the appropriate video cable for the monitor. Power the unit using the included AC cable. Slide the console out when local access is required, use the keyboard and touchpad for configuration tasks, then slide and lock the unit back into the rack when finished.

Recommendations

Place the console at a comfortable working height in the rack and ensure proper ventilation around the unit. Use the locking mechanism to secure the console when not in use. For best readability, operate the monitor at its native resolution (1366×768) and avoid exposing the display to direct strong light sources that could reduce contrast.
