ATEN CE775 AV extender AV transmitter & receiver Black

ATEN CE775 AV extender AV transmitter & receiver Black
ATEN CE775 AV extender AV transmitter & receiver Black
ATEN CE775 AV extender AV transmitter & receiver Black
ATEN CE775 AV extender AV transmitter & receiver Black
ATEN CE775 AV extender AV transmitter & receiver Black
ATEN CE775 AV extender AV transmitter & receiver Black
R14,227

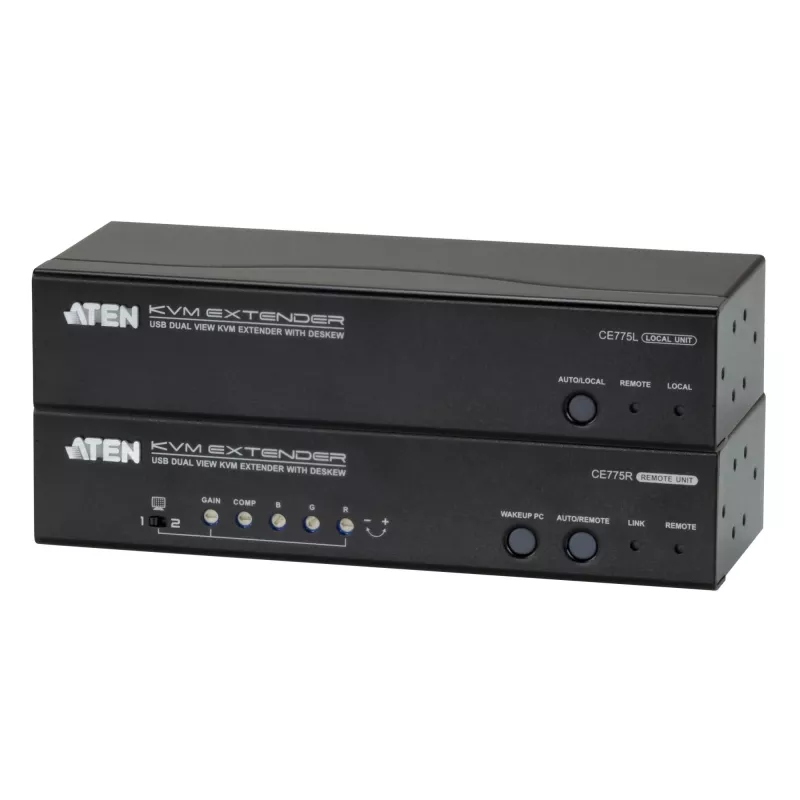

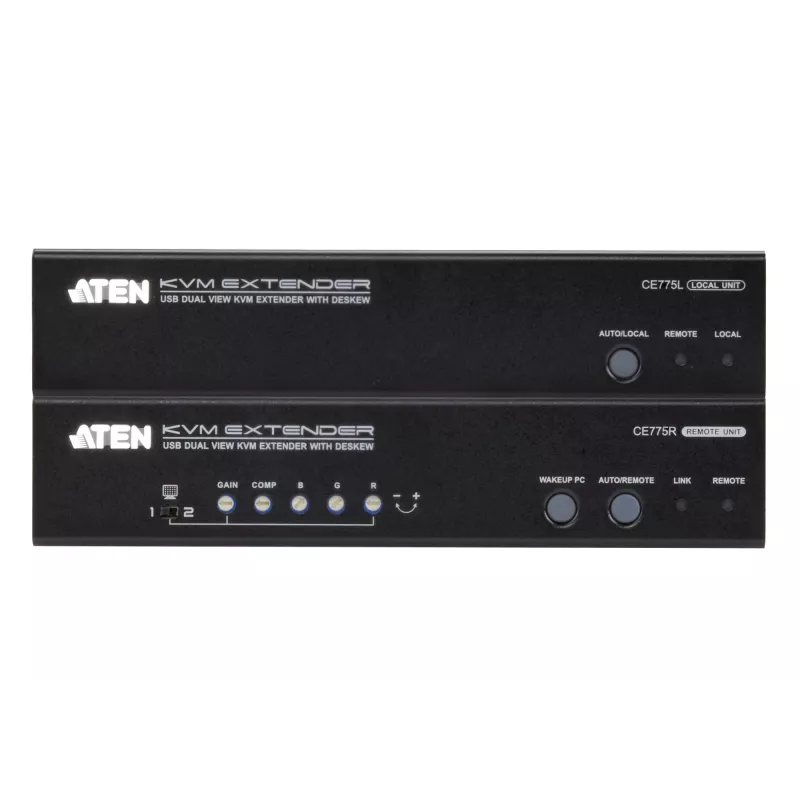

ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature th... Read More
Stock 6 Code 1727953 Brand ATEN Model CE775 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible.

Use the improved built-in front panel tuners to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance, easy and fast than ever.

ATEN CE775. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Audio input: 3.5mm, Audio output: 3.5mm. Operating voltage: 5.3 V. Dimensions (WxDxH): 75.8 x 200 x 42 mm, Weight: 690 g

Key Highlights
  • Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables
  • Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Deskew Function – automatically synchronizes the time delay of RGB signals to compensate for distance
  • PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
  • Superior video quality – 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m)
  • Gain/Compensation Control – adjusts signal strength in order to compensate for distance
  • On Screen Display – conveniently adjust video quality with the intuitive OSD menu system
  • RS-232 Channel – allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Sun/Mac keyboard support and emulation *
  • Supports Wide Screen formats **
  • * 1. PC keyboard combinations emulate Sun/Mac keyboards
  • 2. Sun/Mac keyboards only work with their own computers
  • ** The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
  • AV transmitter & receiver 1920 x 1200 pixels Black
  • Maximum transfer distance: 300 m
  • DC-in jack
Specifications
Audio input
3.5mm
Audio output
3.5mm
Audio system
Multichannel
Cable types supported
Cat5e

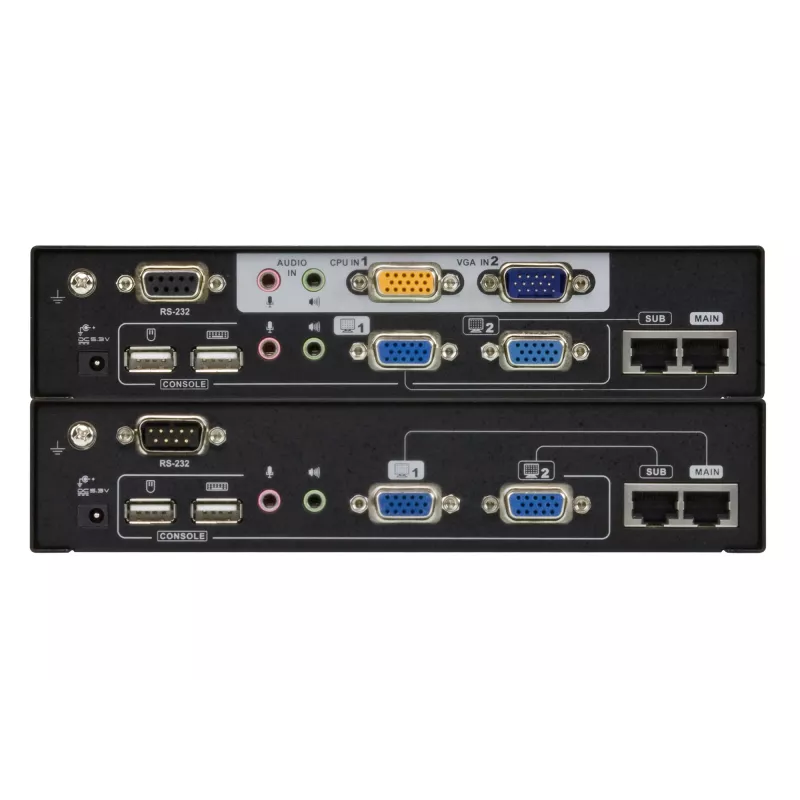

Connector type
USB, SPHD-17, RS-232
DC-in jack
Yes
Dimensions (WxDxH)
75.8 x 200 x 42 mm
External power adapter
Yes
LED indicators
Yes
Maximum resolution
1920 x 1200 pixels
Maximum transfer distance
300 m
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 50 °C
Operating voltage
5.3 V
Product colour
Black
RJ-45 input ports
2
RJ-45 output ports
2
Storage temperature (T-T)
-20 - 60 °C
Type
AV transmitter & receiver
VGA (D-Sub) input ports
4
Weight
690 g
