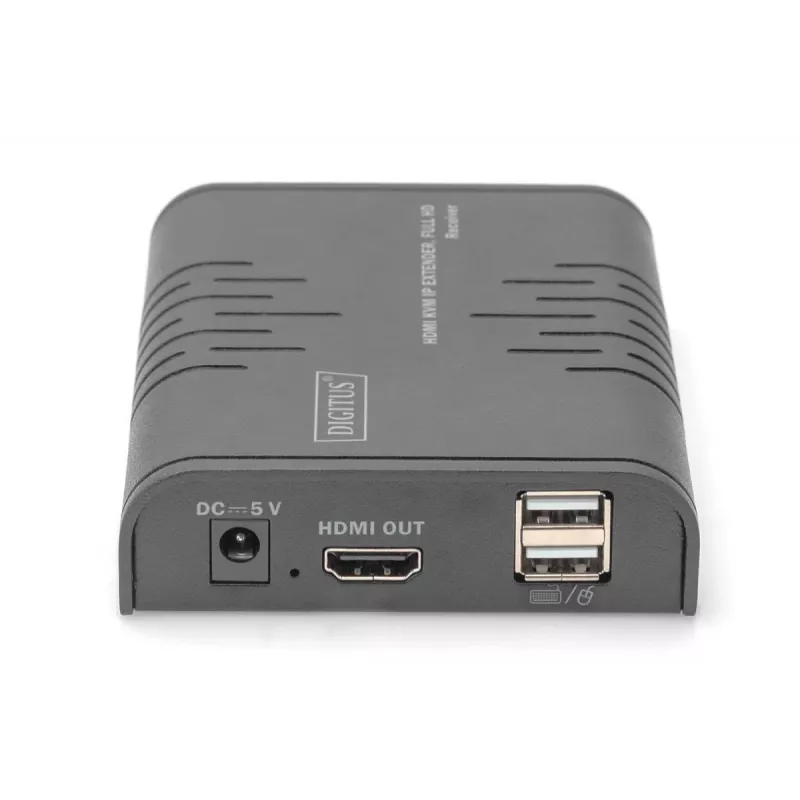

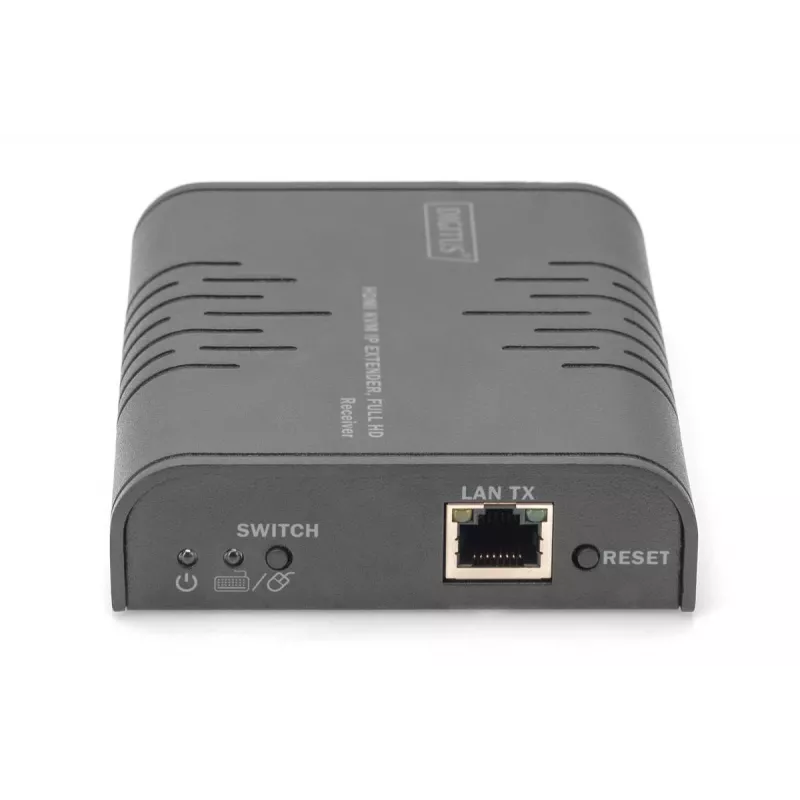

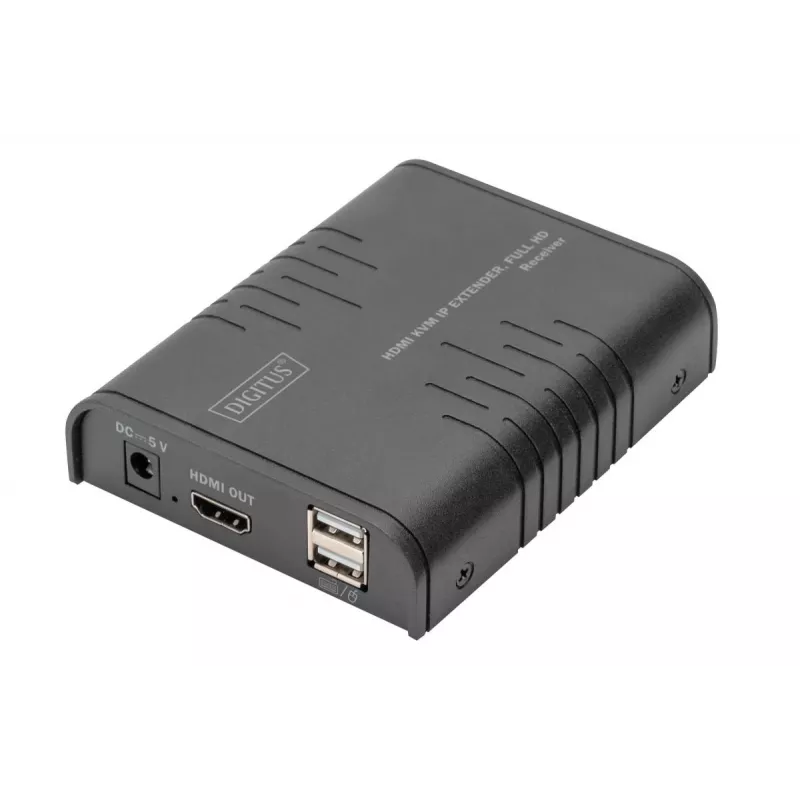

DIGITUS IP KVM Extender, Receiver (RX) Unit for DS-55529

The KVM IP Extender Set Digitus HDMI Full HD enables transmission of Full HD AV signals and USB-based KVM control over existing network infrastructure. Using CAT‑5e (or higher) cables and compatible network switches, the system delivers HDMI video to remote displays and allows keyboard/mouse control at the receiver. It supports point‑to‑point distances up to 120 m and can be expanded via additional receiver units (DS‑55530) to serve up to 253 screens.

Advantages

This solution extends Full HD (1080p/60Hz) HDMI signals over CAT‑5e (or higher) cabling and through standard network switches without additional software or drivers, providing Plug & Play installation. The receiver offers KVM functionality for direct control of the source from the display location. The extender is compatible with HDMI 1.3 and HDCP 1.4 and uses existing infrastructure to reduce cabling costs.

Suitable for (tasks / use cases)

• Remote display of Full HD video over existing network cabling
• Control of a central PC/media source from a remote monitor via keyboard and mouse
• Multi‑screen setups that require expansion up to 253 screens using additional receivers (DS‑55530)
• Installations using commercial network switches or point‑to‑point CAT‑5e (or higher) cabling up to 120 m

Key specifications

• Resolution support: up to 1080p/60Hz (Full HD)
• Connections: HDMI video, USB for keyboard/mouse (KVM)
• Cable type: CAT‑5e or higher
• Point‑to‑point extension range: up to 120 m
• Expandable to: up to 253 receivers using model DS‑55530
• HDMI version: 1.3
• HDCP version: 1.4
• Plug & Play: no additional drivers/software required

How to use

Connect the transmitter to your HDMI source and the receiver to the target display. Use CAT‑5e (or higher) cable for the network link; for single direct runs use point‑to‑point cabling up to 120 m, or route through standard network switches to integrate the extender into your LAN. Plug USB keyboard and mouse into the receiver to gain remote KVM control of the source device. Power the units and verify that the display shows the transmitted Full HD signal.

Recommendations

For reliable performance, use quality CAT‑5e or CAT‑6 cables and commercially rated network switches. When deploying multiple receivers, ensure your network switches support the required throughput and plan power supply locations for each transmitter and receiver. Check HDMI and HDCP compatibility of source and display devices when transmitting protected content.
