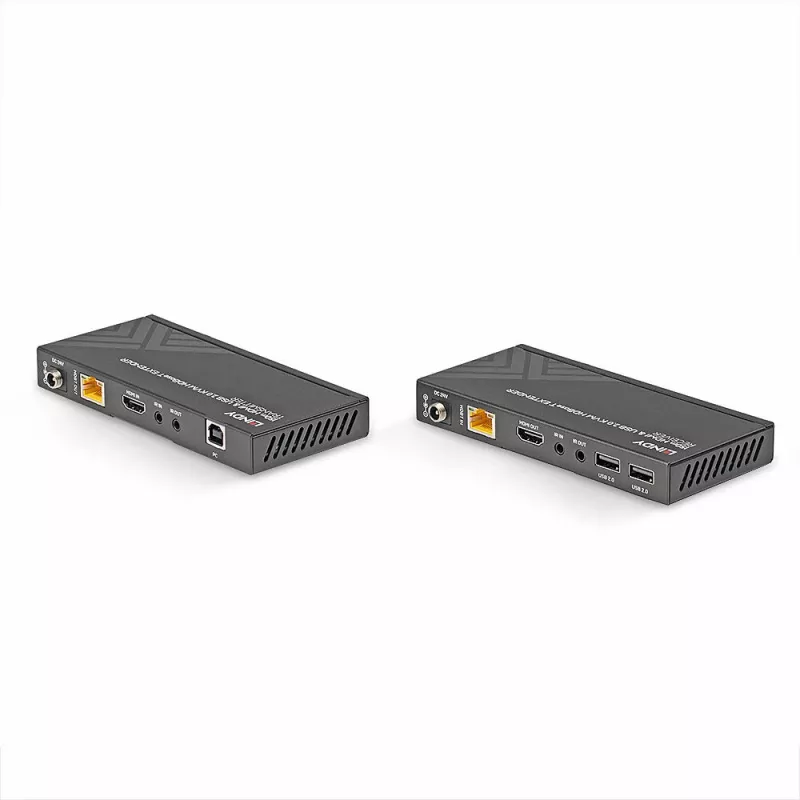

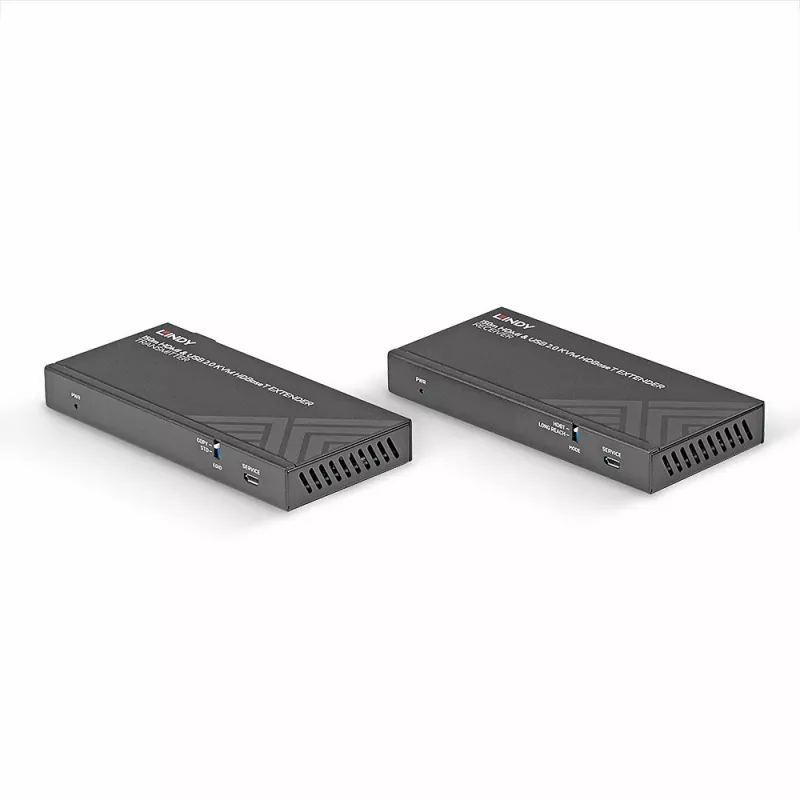

Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender

The Lindy 150m Cat.6 HDMI 4K60 USB 2.0 & IR HDBaseT KVM Extender transmits HDMI video, USB 2.0 and IR control signals up to 150 metres over a single Cat.6 cable. It supports resolutions up to 4K Ultra HD at 60 Hz and HDR, and provides PoC (Power over Cable) for a point-to-point transmitter-to-receiver installation. The extender includes screw-type DC power jacks for secure connections and is compatible with the HDBaseT standard for long-distance AV distribution.

Advantages

Supports 4K60 and HDR for high-resolution video with improved contrast and colour reproduction. Transmits HDMI, bi-directional IR and USB 2.0 signals over a single Cat.6 cable for simplified cabling. PoC capability allows the transmitter to power the receiver in point-to-point setups, reducing the need for a second power supply. Screw-type DC jacks increase connection reliability for professional installations. Compact transmitter dimensions make the unit suitable for a variety of placement options.

Suitable for

• Digital signage and retail displays
• Conference rooms, lecture halls and meeting spaces
• Event AV and immersive displays
• Installations where receiver-side power outlets are limited

Key specifications

• Maximum transmission distance: up to 150 m over Cat.6
• Video: HDMI up to 4K Ultra HD (60 Hz) with HDR support
• USB: USB 2.0 support (Long Reach mode: USB HID devices only)
• IR: Bi-directional IR ports on transmitter and receiver
• Power: PoC (Power over Cable) supported; screw-type DC jack for power input
• Power input (device): AC 100–240 V (as per product data)
• Dimensions (transmitter): 140 mm × 65 mm × 18 mm
• Colour: Black

How to use

Connect the HDMI source (PC, media player) to the transmitter HDMI input and the display to the receiver HDMI output. Use a single Cat.6 cable between transmitter and receiver, observing the maximum recommended length of 150 m. If PoC is required, connect the power supply only to the transmitter unit; the receiver will be powered via the Cat.6 cable. Attach USB devices (mouse, keyboard) to the receiver to control the source when using HDBaseT mode. Use the bi-directional IR ports to send remote commands from either side of the installation.

Recommendations

For reliable long-distance performance, use good-quality Cat.6 or better cable and avoid additional couplers, wall plates or patch panels in the HDBaseT link, as these may reduce the maximum achievable distance.
