ATEN 16-Port 19 inch LCD Cat5e/6 KVM Over IP Switch (Dual Rail)

ATEN 16-Port 19 inch LCD Cat5e/6 KVM Over IP Switch (Dual Rail)
ATEN 16-Port 19 inch LCD Cat5e/6 KVM Over IP Switch (Dual Rail)
ATEN 16-Port 19 inch LCD Cat5e/6 KVM Over IP Switch (Dual Rail)
ATEN 16-Port 19 inch LCD Cat5e/6 KVM Over IP Switch (Dual Rail)
ATEN 16-Port 19 inch LCD Cat5e/6 KVM Over IP Switch (Dual Rail)
ATEN 16-Port 19 inch LCD Cat5e/6 KVM Over IP Switch (Dual Rail)
R51,299

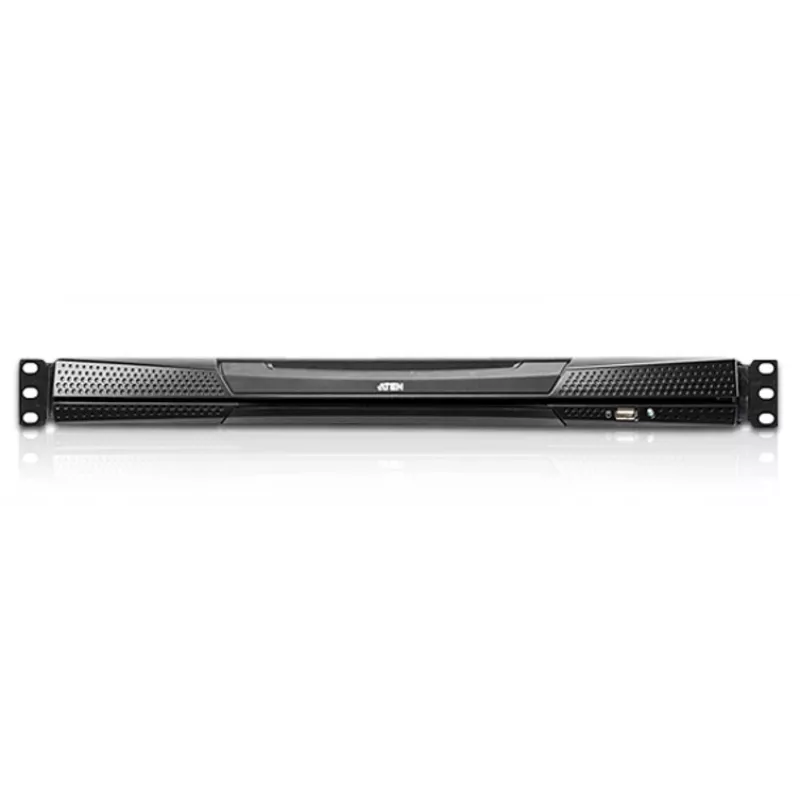

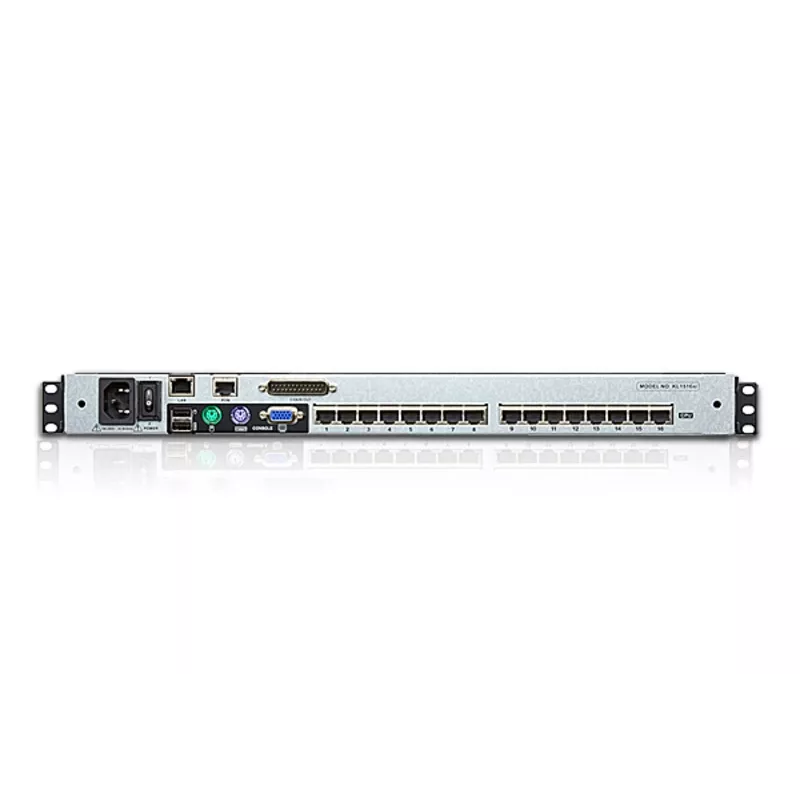

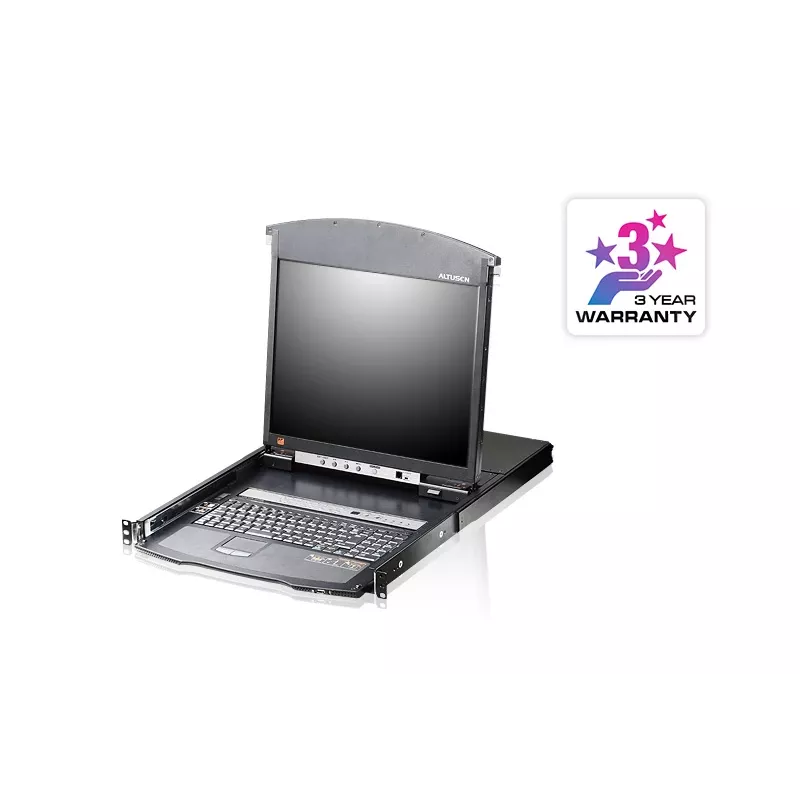

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing. The LCD and keyboard/touc... Read More
Stock Out Of StockNo Stock Code 2401459 Brand ATEN Model KL1516AIN-AXA-AG Warranty 2 Years

Shipping & Returns

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.

The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
1x KL1516Ai Dual Rail LCD KVM Switch
1x LIN2-418K-E12G Power Cord
1x Standard Rack Mount Kit
1x LINS-04A2-J11G Firmware Upgrade Cable
2x L Brackets
1x User Instructions

ATEN 16-Port 19" LCD Cat5e/6 KVM Over IP Switch (Dual Rail). Display diagonal: 48.3 cm (19"), Display: LCD. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Keyboard language: US English, Keyboard layout: QWERTY. Power consumption (typical): 36 W, Input current: 1 A. Width: 480 mm, Height: 44 mm, Depth: 701.2 mm

Key Highlights
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Dual Rail – LCD monitor slides independently of the keyboard/touchpad
  • One local/remote share access bus –allowing IT administrators to monitor and control up to 16 servers
  • Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60Hz** up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @ 75Hz up to 50 meters
  • 48.3 cm (19")
  • Rack mounting 1U
  • On Screen Display (OSD)
  • Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA
  • Keyboard layout: QWERTY
  • Black
Specifications
Cabling technology
10/100Base-T(X)
Daisy chain
Yes
Depth
701.2 mm
Display
LCD
Display diagonal
48.3 cm (19")
Height
44 mm
Hot keys
Yes
Input current
1 A
Keyboard language
US English
Keyboard layout
QWERTY
Keyboard port type
USB, PS/2
LED indicators
Yes
Manual
Yes
Master (outer) case gross weight
18.8 kg
Master (outer) case height
135 mm
Master (outer) case length
833 mm
Master (outer) case net weight
15.7 kg
Master (outer) case width
668 mm
Maximum resolution
1920 x 1200 pixels
Mouse port type
USB, PS/2
Networking standards
IEEE 802.3, IEEE 802.3u
Number of computers controlled
16
On Screen Display (OSD)
Yes
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 40 °C
Package depth
833 mm
Package height
135 mm
Package weight
18.8 kg
Package width
668 mm
Power consumption (typical)
36 W
Product colour
Black
Products per master (outer) case
1 pc(s)
Push button
Yes
Quick installation guide
Yes
Rack capacity
1U
Rack mounting
Yes
Storage temperature (T-T)
-20 - 60 °C
VGA (D-Sub) ports quantity
1
Video port type
VGA
Weight
15.7 kg
Width
480 mm
Windows operating systems supported
Yes

Leaflet

Open Leaflet

Manual

Open Manual

Manual

Open Manual

Document

Open Document
