KVM Console Digitus 19 inch HD LCD 16-port VGA German Keyboard

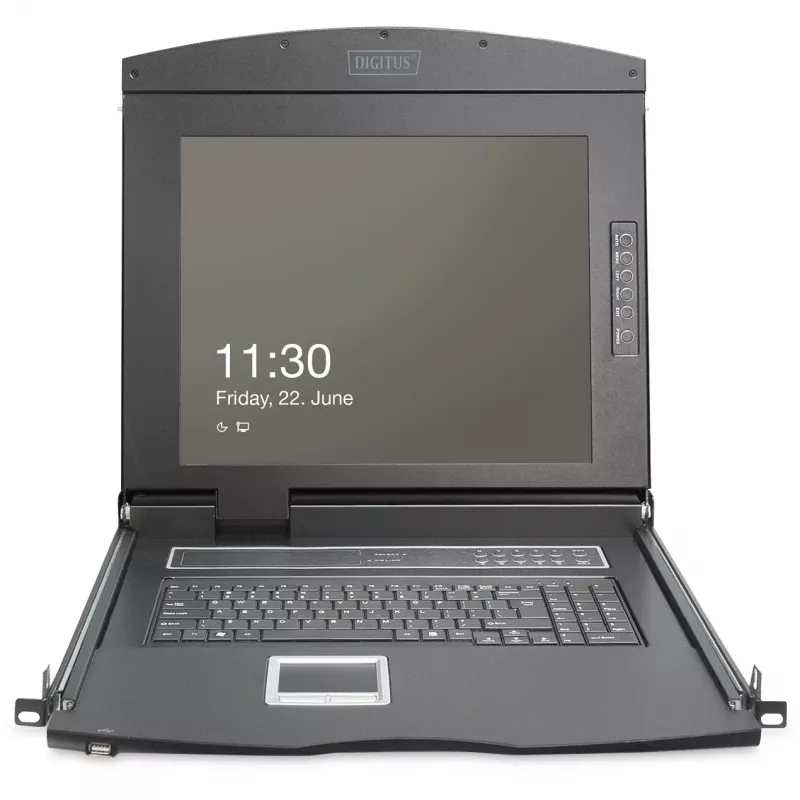

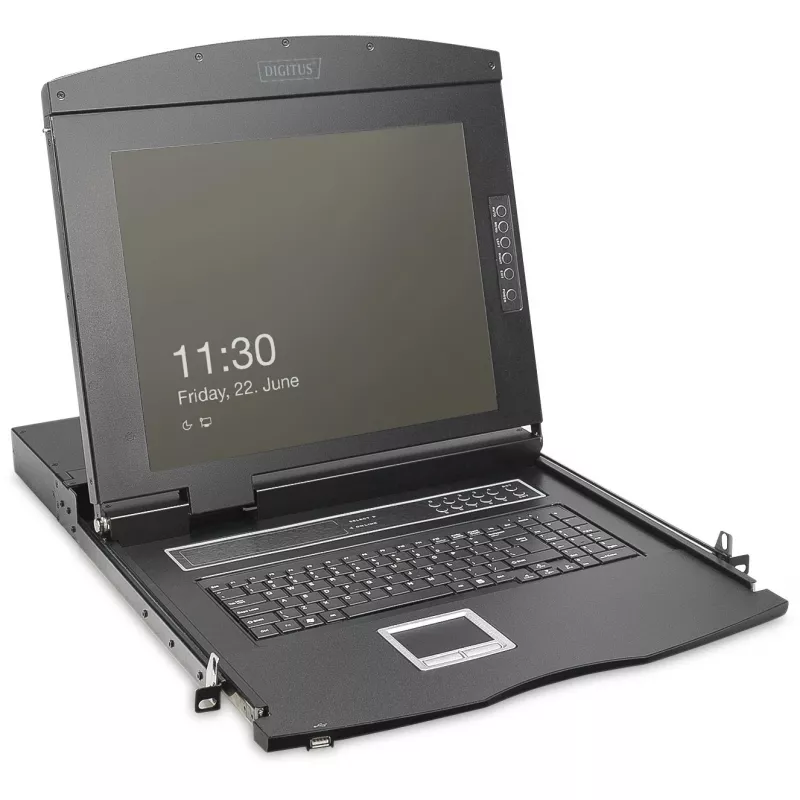

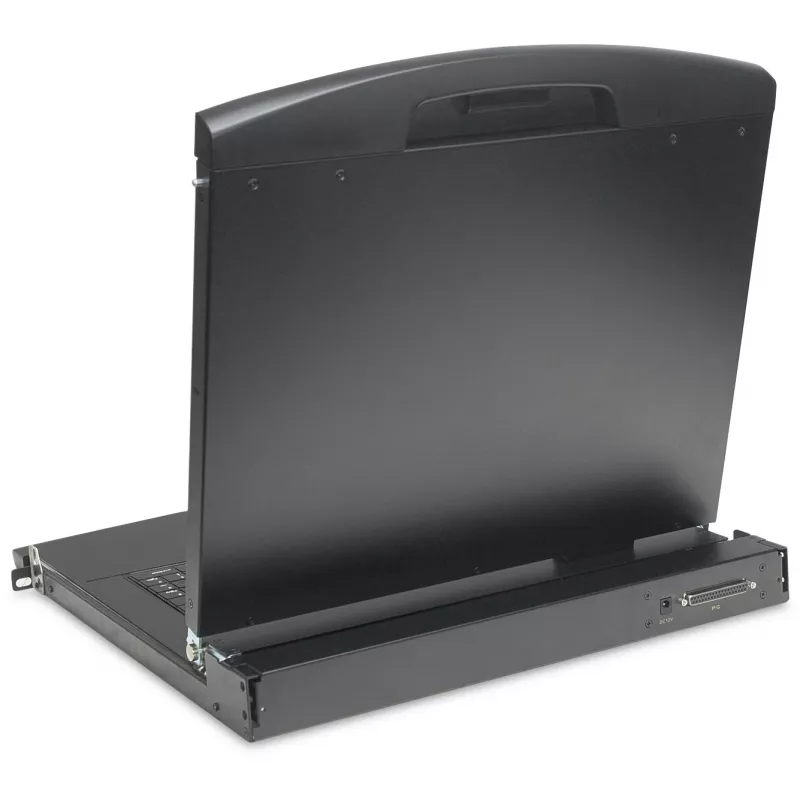

The DIGITUS 19" HD TFT console is a modular 1U KVM console with a 19-inch 1920x1080 (Full HD) TFT screen, integrated 16-port VGA KVM switch and a German QWERTZ keyboard. The unit features a space-saving black housing (RAL 9005), VGA interface and a tilt-capable TFT panel that can be pulled out of the server cabinet and tilted by 120 degrees for flexible viewing and access.

Advantages

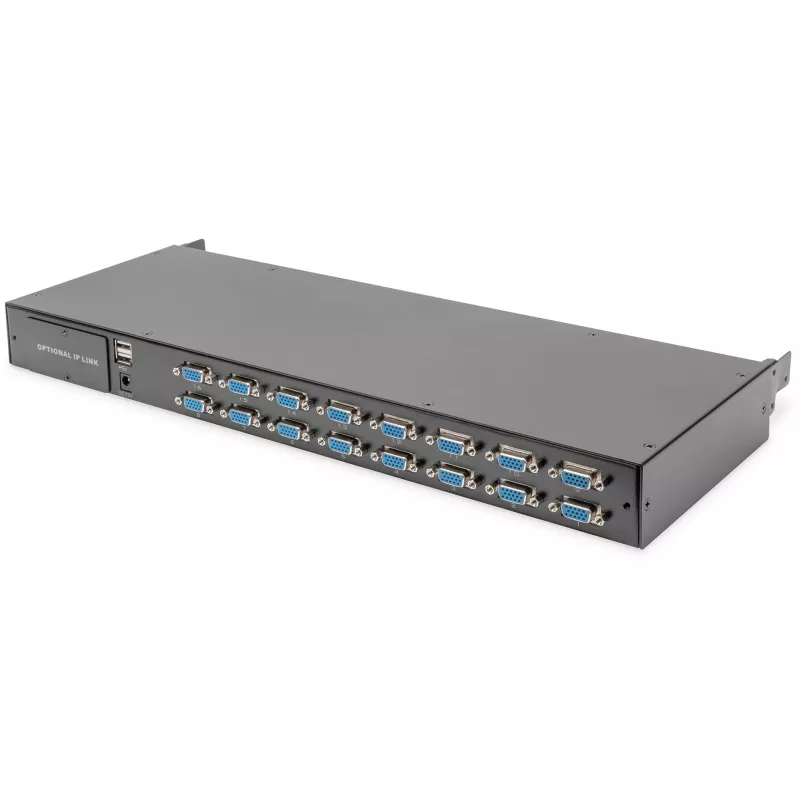

The console offers Full HD resolution at 60 Hz with a 1000:1 contrast ratio and support for 16.7 million colours, delivering clear on-screen detail for server management. Its modular design allows upgrades and additional modules to be added later, providing future-proof configurability. The included 16-port VGA KVM switch and integrated mouse touch board with two function buttons simplify control of multiple servers from a single compact 1U unit.

Suitable for

• Rack-mounted server rooms and data centres requiring centralized server access
• IT maintenance and system administration tasks across multiple VGA-equipped servers
• Environments where space-saving 1U equipment is required

Key specifications

• Screen size: 19" TFT
• Resolution: 1920 x 1080 at 60 Hz
• Contrast ratio: 1000:1
• Colour support: 16.7 million colours
• Switch: Integrated 16-port VGA KVM
• Keyboard layout: German QWERTZ
• Mouse: Touchpad with two function buttons
• Interface: VGA
• Form factor: 1U rackmount, black (RAL 9005)
• Dimensions (W x D): 556 mm x 445 mm
• Weight: 12.99 kg

How to use

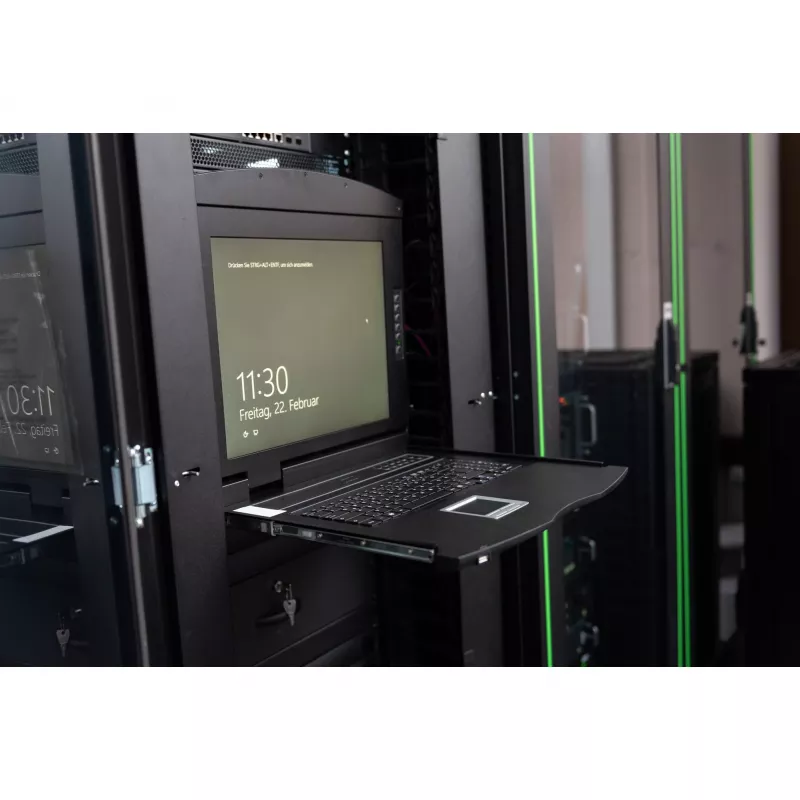

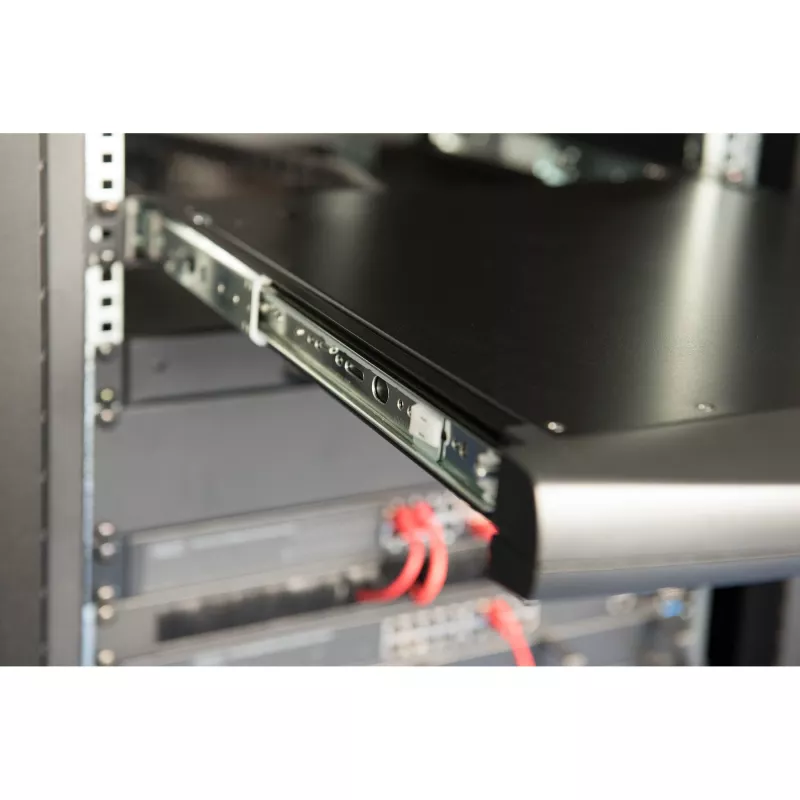

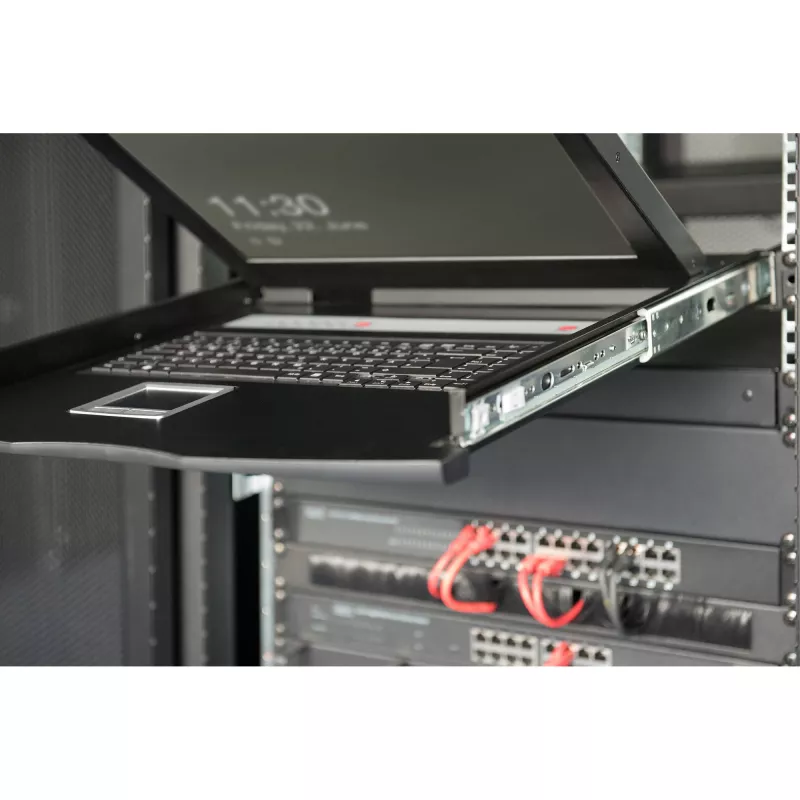

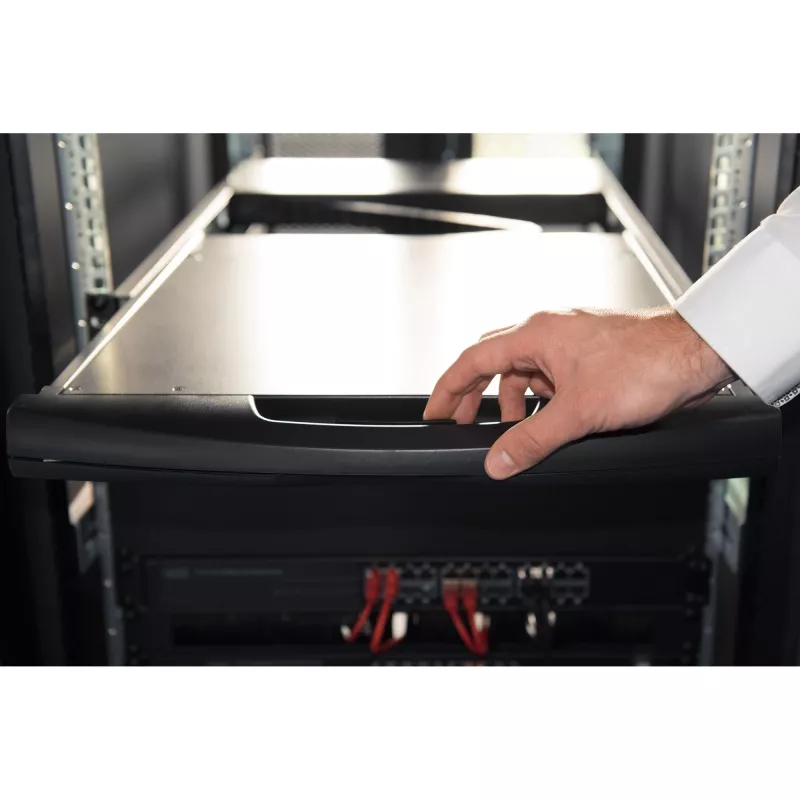

Slide the console out of the rack to access the 19" TFT screen and keyboard. Connect servers to the integrated 16-port VGA KVM switch using VGA and USB (or the appropriate KVM cabling), then switch between connected systems using the console controls. Adjust the TFT screen tilt up to 120 degrees to obtain an optimal viewing angle. Use the touchpad and its two function buttons for cursor control and common actions.

Recommendations

The console is intended for indoor rack-mounted use in server rooms or data centres. For reliable operation, connect to properly grounded power and use compatible VGA cabling. Avoid exposing the TFT display to direct sunlight and maintain recommended ambient temperatures for rack equipment.
