Rack console ATEN CL5800N 19 inch (48.3 cm) LCD 1280x1024 VGA USB/PS/2 keyboard & mouse Metal 1U Black

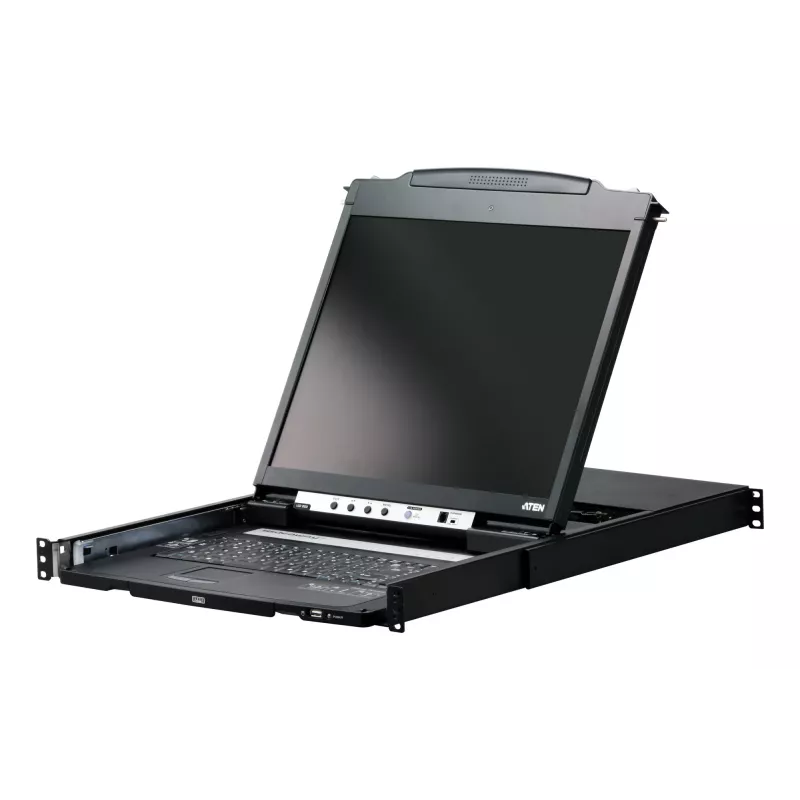

The ATEN CL5800N is a 1U rack console that integrates a 19" (48.3 cm) LED-backlit LCD with 1280×1024 resolution, a full keyboard and a touch pad in a sliding metal housing suitable for server racks. It provides VGA video output and combined USB/PS/2 ports for keyboard and mouse, enabling local management of network equipment while minimizing rack space. Typical power consumption is 24 W and the AC adapter supports 100–240 V, 50/60 Hz.

Advantages

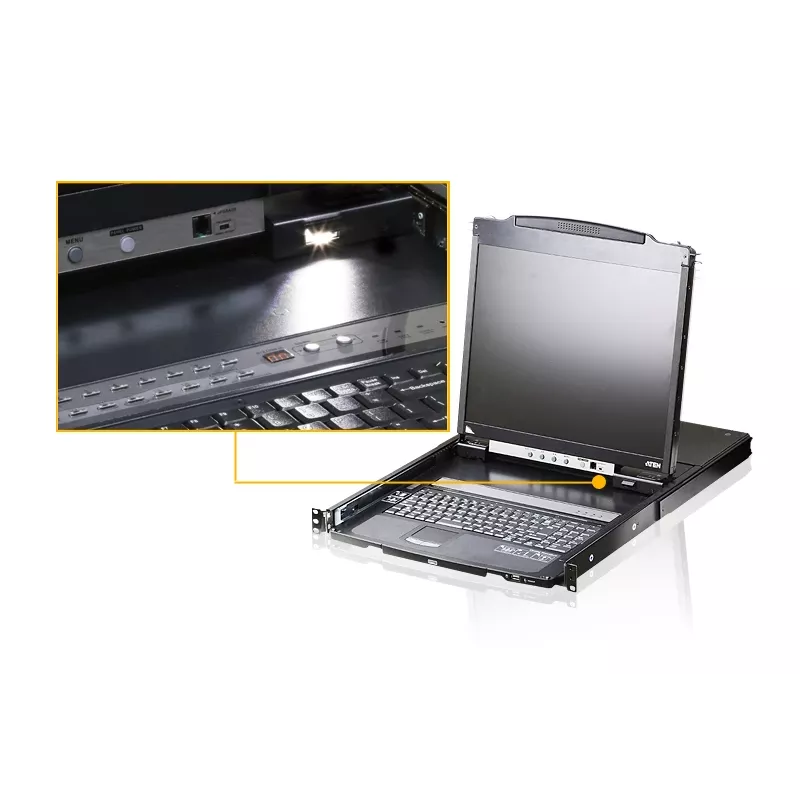

The CL5800N offers an independent sliding design: the LCD and keyboard/touch pad modules operate separately so the keyboard can retract to save space while the thin LCD rotates back to lie flush against the rack. Its metal 1U construction is designed for durability in data center environments and includes rear-panel ports for external PS/2 or USB keyboard and mouse and for an external monitor, increasing flexibility for different setups.

Suitable for

• Local server management in data centers and server rooms
• Compact rack installations where space saving is required
• Technical workstations needing direct access to rack-mounted equipment

Key specifications

• Display: 19" (48.3 cm) LED-backlit LCD, 1280 × 1024
• Form factor: 1U rack-mountable sliding console, metal housing
• Video output: VGA
• Keyboard / Mouse ports: USB and PS/2 (combined)
• Weight: 14.27 kg
• Colour: Black
• Power: Typical 24 W; AC adapter 100–240 V, 50/60 Hz

How to use

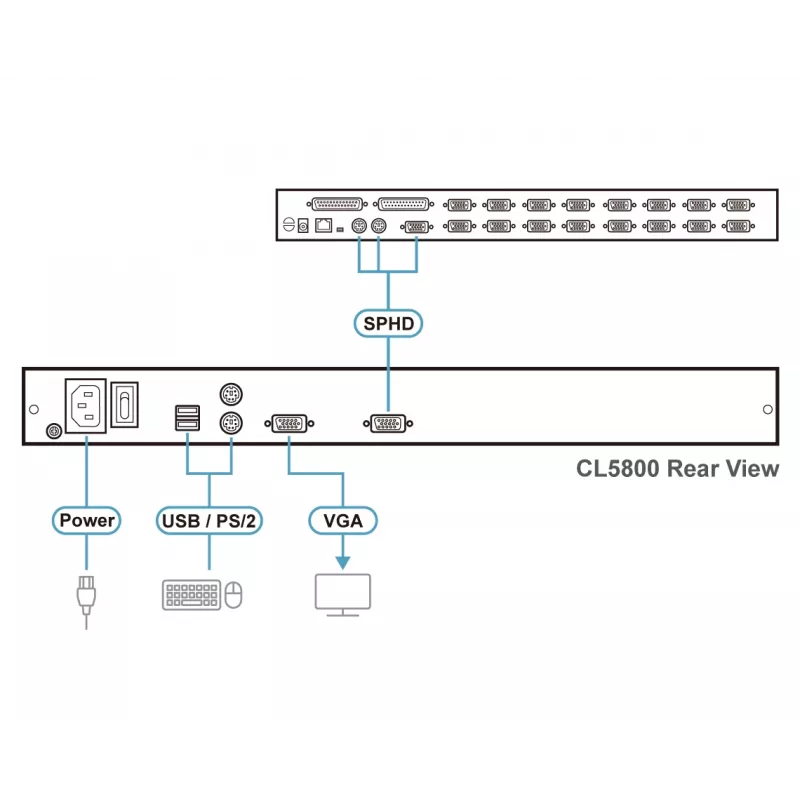

Mount the unit into a standard 19" equipment rack using the included rack-mount brackets to occupy a single 1U slot. Slide out the console to access the keyboard and touch pad; the keyboard/touch pad module can be retracted independently of the LCD, and the LCD panel rotates back to lie flat against the rack for storage or monitoring. Connect the VGA cable to your server's video output and use the rear-panel USB or PS/2 ports to attach an external keyboard and mouse if required. Power the console via the supplied AC adapter.

Recommendations

For reliable operation, install the console in a properly ventilated rack, use the appropriate VGA and USB/PS‑2 cables of recommended length to avoid signal loss, and secure the unit with rack screws. Regularly check connectors and the power adapter for wear to maintain consistent local access to rack equipment.
