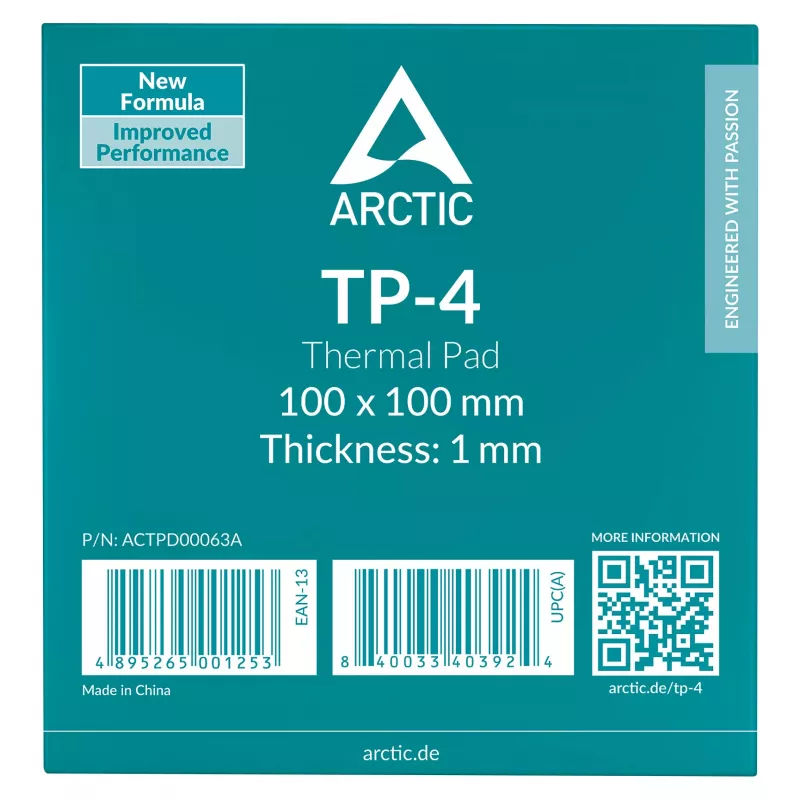

ARCTIC Thermal Pad TP-4 100x100mm 1mm Grey

The ARCTIC Thermal Pad TP-4 is a high-performance silicone-based thermal interface material designed for efficient heat transfer between electronic components and heatsinks. With a thermal conductivity of 10 W/mK, it provides excellent thermal management for CPUs, GPUs, VRMs, SSDs, chipsets, and memory modules. The pad measures 100 x 100 mm with a thickness of 1.0 mm, making it suitable for a wide range of applications. Its naturally tacky surface ensures easy installation without additional adhesives, while being non-electrically conductive for safe use.

Advantages

High thermal conductivity of 10 W/mK ensures efficient heat dissipation. The pad is easy to cut and apply, with a consistent thickness of 1.0 mm. It is electrically non-conductive, reducing the risk of short circuits. The material is RoHS and REACH compliant, ensuring environmental safety.

Suitable for

• CPUs and GPUs
• Voltage Regulator Modules (VRMs)
• SSDs and memory modules
• Chipsets and other heat-generating components

Key specifications

• Thermal Conductivity: 10 W/mK
• Pad Dimensions: 100 x 100 mm
• Thickness: 1.0 mm
• Color: Grey
• Density: 3.2 g/cm³
• Hardness: 30 Shore 00
• Continuous Use Temperature: -40 to 200 °C
• Breakdown Voltage: 12 kV/mm
• Volume Resistivity: 1 x 10^12 Ω-cm
• Flammability Rating: UL 94 V-0
• Material: Silicone-based
• Quantity: 1 pad

Recommendations

For optimal thermal performance, ensure surfaces are clean and dry before application. The pad can be cut to size for custom fit. Suitable for both DIY and professional use.
