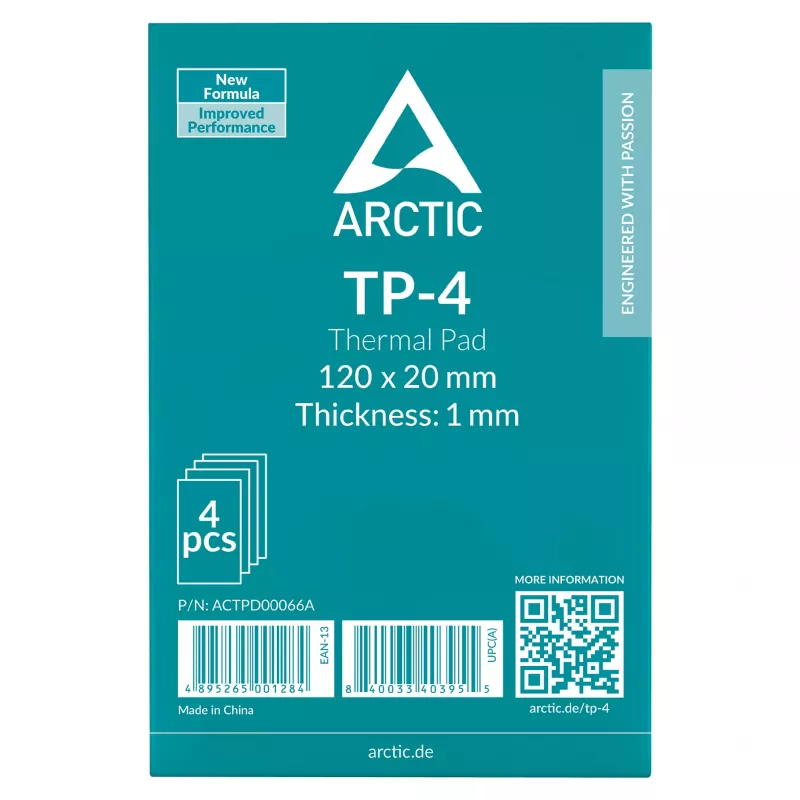

ARCTIC Thermal Pad ATP-4 120x20mm 1mm 4-Pack Grey

The ARCTIC Thermal Pad ATP-4 is a high-performance silicone-based thermal interface material designed for efficient heat transfer between electronic components and heatsinks. This 4-pack includes pads measuring 120x20mm with a thickness of 1.0mm, ideal for use on GPUs, CPUs, VRMs, chipsets, SSDs, and memory modules. With a thermal conductivity of 10 W/mK and a wide continuous use temperature range of -40 to 200 °C, these pads ensure reliable thermal management in demanding applications.

Advantages

Excellent thermal conductivity of 10 W/mK ensures efficient heat dissipation. Non-adhesive but naturally tacky for easy installation and repositioning. Electrically non-conductive, safe for use near sensitive circuits. UL94 V-0 flammability rated for enhanced safety. Halogen-free and RoHS compliant.

Suitable for

• GPUs and CPUs
• Voltage Regulator Modules (VRMs)
• Chipsets and SSDs
• Memory modules
• Any electronic component requiring thermal management

Key specifications

• Thermal Conductivity: 10 W/mK
• Pad Dimensions: 120 x 20 x 1.0 mm (4 pieces)
• Continuous Use Temperature: -40 to 200 °C
• Density: 3.2 g/cm³
• Hardness: 60 Shore 00
• Breakdown Voltage: 12 kV/mm
• Colour: Grey
• Material: Silicone-based
• Flammability Rating: UL94 V-0
• Adhesive: Non-adhesive (naturally tacky)

Recommendations

For optimal thermal performance, ensure surfaces are clean and free of dust before application. The pads can be cut to size if needed. Suitable for both DIY and professional use.
