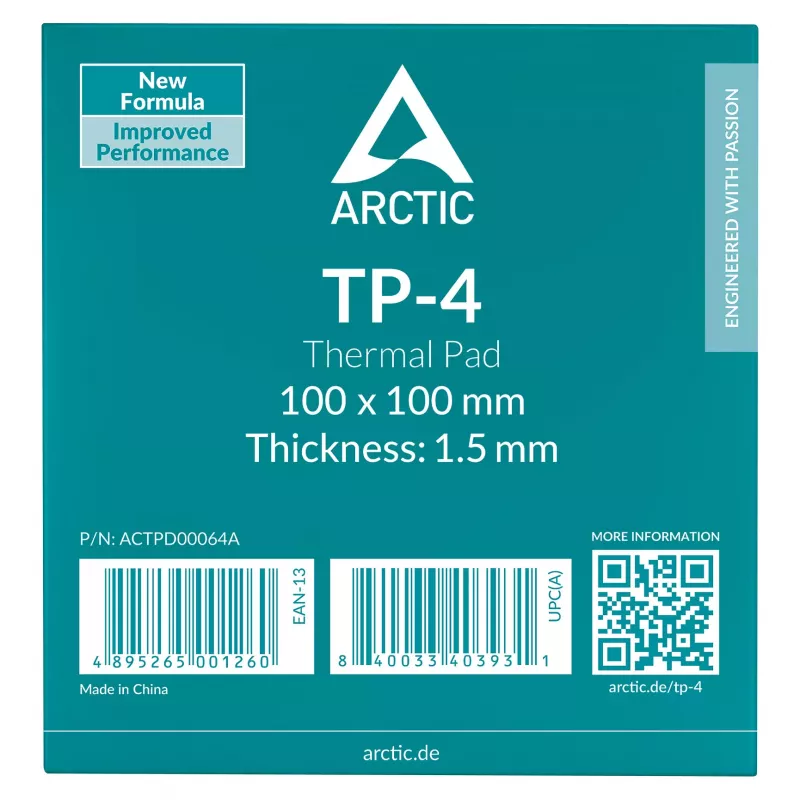

ARCTIC Thermal Pad ATP-4 100x100mm 1.5mm Grey

The ARCTIC Thermal Pad ATP-4 is a high-performance silicone-based thermal interface material designed for efficient heat transfer between electronic components and heatsinks. With a thermal conductivity of 3.4 W/mK, it provides reliable cooling for CPUs, GPUs, VRMs, chipsets, and memory ICs. The pad measures 100x100mm with a thickness of 1.5mm, making it suitable for gap-filling applications. It is non-electrically conductive, non-corrosive, non-toxic, and RoHS compliant, ensuring safe and durable use.

Advantages

Easy to apply and reusable, the ATP-4 eliminates the mess of thermal paste. Its silicone-based material offers excellent flexibility and conformability, filling uneven gaps effectively. The pad operates continuously from -40°C to 200°C, making it ideal for both standard and high-temperature environments.

Suitable for

• CPUs and GPUs
• VRMs and chipsets
• Memory ICs
• Any electronic component requiring thermal management

Key specifications

• Thermal Conductivity: 3.4 W/mK
• Dimensions: 100 x 100 mm
• Thickness: 1.5 mm
• Density: 2.3 g/cm³
• Hardness: 60 Shore 00
• Temperature Range: -40 ~ 200 °C
• Breakdown Voltage: 12 kV/mm
• Colour: Grey
• Material: Silicone-based
• Compliance: RoHS Compliant

Recommendations

For optimal thermal performance, ensure the pad fully covers the component surface. The pad can be cut to size if needed. Store in a cool, dry place.
