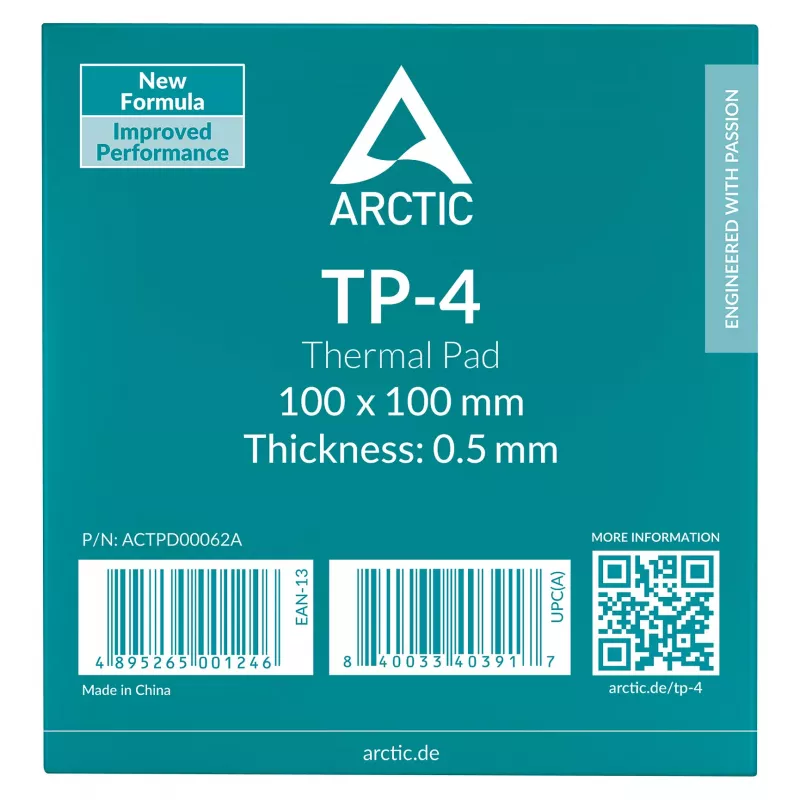

ARCTIC Thermal Pad 4 (ATP-4) 100x100mm 0.5mm Grey

The ARCTIC Thermal Pad 4 (ATP-4) is a high-performance, silicone-based thermal interface material designed for efficient heat transfer between electronic components and heatsinks. With dimensions of 100x100mm and a thickness of 0.5mm, it offers excellent thermal conductivity of 6 W/mK, making it ideal for CPUs, GPUs, chipsets, VRMs, SSDs, and memory modules. Its naturally tacky surface ensures easy installation without additional adhesive, and it is reusable for multiple applications.

Advantages

• High thermal conductivity (6 W/mK) for superior heat dissipation
• Non-electrical conductive, safe for sensitive electronics
• Flame retardant (UL 94 V-0) for added safety
• Reusable and easy to apply with no adhesive residue
• Wide operating temperature range from -40°C to 200°C

Suitable for

• CPUs and GPUs
• Chipsets and VRMs
• SSDs and memory modules
• Any electronic component requiring thermal management

Key specifications

• Product Type: Thermal Pad
• Series: ATP-4
• Dimensions: 100 x 100 mm
• Thickness: 0.5 mm
• Thermal Conductivity: 6 W/mK
• Operating Temperature: -40 to 200 °C
• Colour: Grey
• Material: Silicone-based
• Electrical Conductivity: Non-electrical conductive
• Specific Gravity: 2.5 g/cm³
• Volume Resistivity: 1.0 x 10^12 Ohm-cm
• Dielectric Strength: 5 KV/mm
• Flame Retardancy: UL 94 V-0
• Adhesion: Naturally tacky (no adhesive required)
• Reusability: Yes

Recommendations

For optimal thermal performance, ensure surfaces are clean and dry before application. The pad can be cut to size for custom fits. Suitable for both DIY and professional use.
