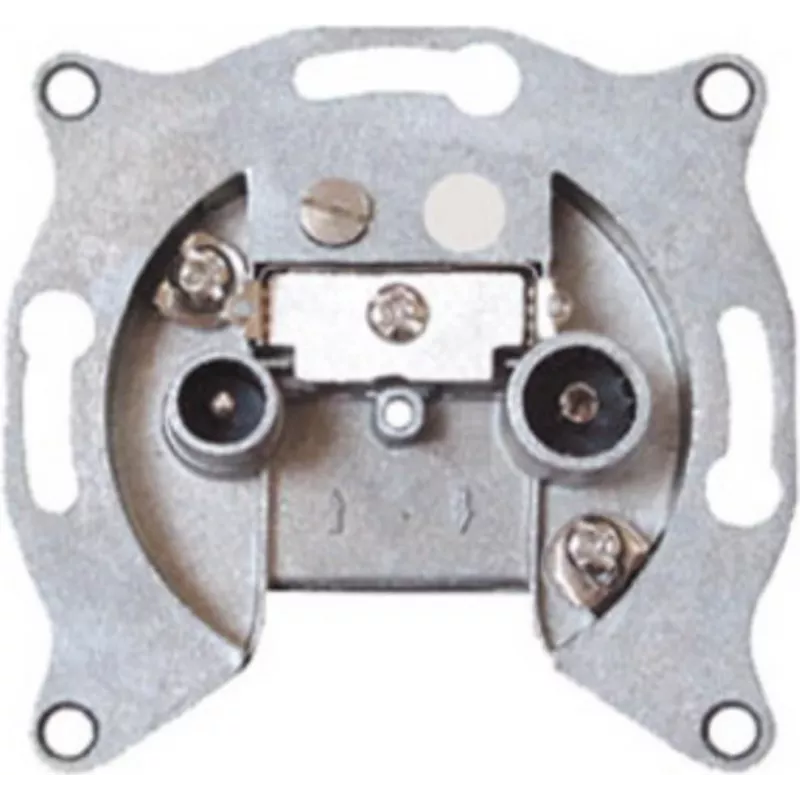

Antenna Socket ShiverPeaks 83903-1L — Maximum Connectivity Digital

Antenna Socket ShiverPeaks 83903-1L — Maximum Connectivity Digital is a single-interface antenna socket designed to provide a reliable external antenna connection for residential and commercial networking equipment. The socket allows integration of external directional or omnidirectional antennas with wireless and wired devices, facilitating improved signal routing and enabling antenna mounting where a dedicated external connector is required. It is intended for digital connectivity applications where a standard, single-socket interface is needed to connect network equipment to an external antenna.

Advantages

The ShiverPeaks 83903-1L antenna socket delivers a compact, single-socket solution for attaching external antennas to routers, access points, and other network devices. Its design supports straightforward installation in enclosures and panels and provides a defined electrical interface for external antenna cabling. By enabling an external antenna connection, the socket helps maintain consistent signal paths and can support setups that require directional antennas or upgraded antenna elements.

Suitable for

• Connecting external directional or omnidirectional antennas to routers and access points
• Retrofit or new installations in residential Wi‑Fi and small office networks
• Panel or enclosure mounting where a single external antenna interface is required

Key specifications

• Single external antenna socket interface for digital networking equipment
• Designed for integration into wireless and wired connectivity setups
• Compatible with standard antenna cabling and mounting practices

How to use

Mount the antenna socket in a suitable enclosure or panel opening and secure it according to the device or cabinet manufacturer’s instructions. Connect the internal cable from the network device to the socket and attach the external antenna cable to the socket’s exterior interface. Ensure cable terminations are correctly fitted and tightened to provide a stable electrical connection and to minimize signal loss. After installation, verify antenna alignment and check signal levels on the network equipment to confirm proper operation.

Recommendations

Use appropriate low-loss antenna cables and correct terminations for the operating frequency band of your antenna system. Ensure all connections are weatherproofed when installed outdoors and follow local installation standards for grounding and lightning protection.
