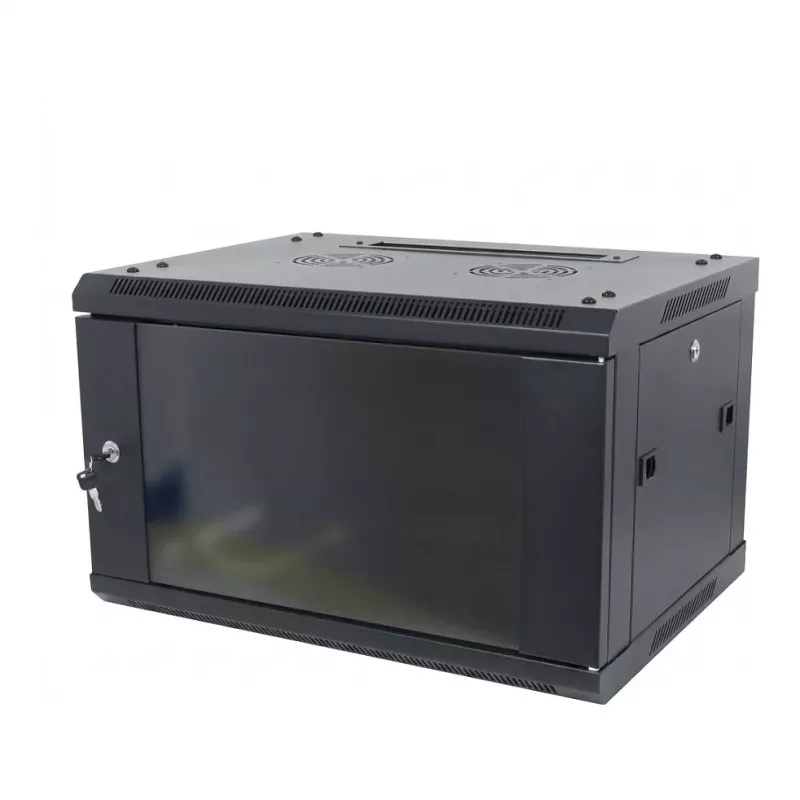

ALLNET SMA-Series 19 inch Wall-Mount Enclosure 9U 1-Part 600mm Depth Black Flat Pack

The ALLNET SMA-Series 19" Wall-Mount Enclosure offers a robust and secure housing solution for your network equipment. Designed for 9U rack units, this 1-part enclosure comes in a flat pack for easy self-assembly, saving on shipping volume. With a depth of 600mm and a width of 540mm, it provides ample space for switches, patch panels, and other 19" devices. The black steel sheet construction (RAL 9005) ensures durability, while the lockable safety glass front door and removable side panels provide security and accessibility.

Advantages

• Space-saving wall-mount design ideal for small to medium installations
• Flat pack delivery reduces transport costs and allows flexible on-site assembly
• Lockable safety glass door protects equipment while allowing visibility of LEDs
• Removable side panels for easy cable management and maintenance
• Depth-adjustable mounting rails (front and rear) accommodate various device depths
• Passive ventilation with preparation for optional fan unit ensures adequate cooling

Suitable for

• Network cabinets for IT rooms, offices, and retail spaces
• Mounting 19" switches, routers, patch panels, and UPS devices
• Environments requiring secure, lockable equipment housing
• Self-assembly projects where flat pack is preferred

Key specifications

• Rack Units: 9U
• Rack Width: 19 inch
• Mounting Type: Wall Mount
• External Dimensions (HxWxD): 470 x 540 x 600 mm
• Colour: Black (RAL 9005)
• Material: Steel sheet
• Front Door: Safety glass, lockable
• Side Panels: Removable, lockable
• Construction: 1-part, disassembled (Flat Pack)
• Cable Entry: Top and bottom
• Ventilation: Passive, prepared for fan unit
• Load Capacity: Up to 60 kg
• Protection Rating: IP20
• Mounting Rails: 2 pairs (front & rear), depth-adjustable
• Series: SMA-Series

Recommendations

For optimal cable management, consider using ALLNET patch panels and cable management accessories. Ensure the wall is capable of supporting the loaded weight (up to 60 kg). Assembly instructions are included; basic tools required.
