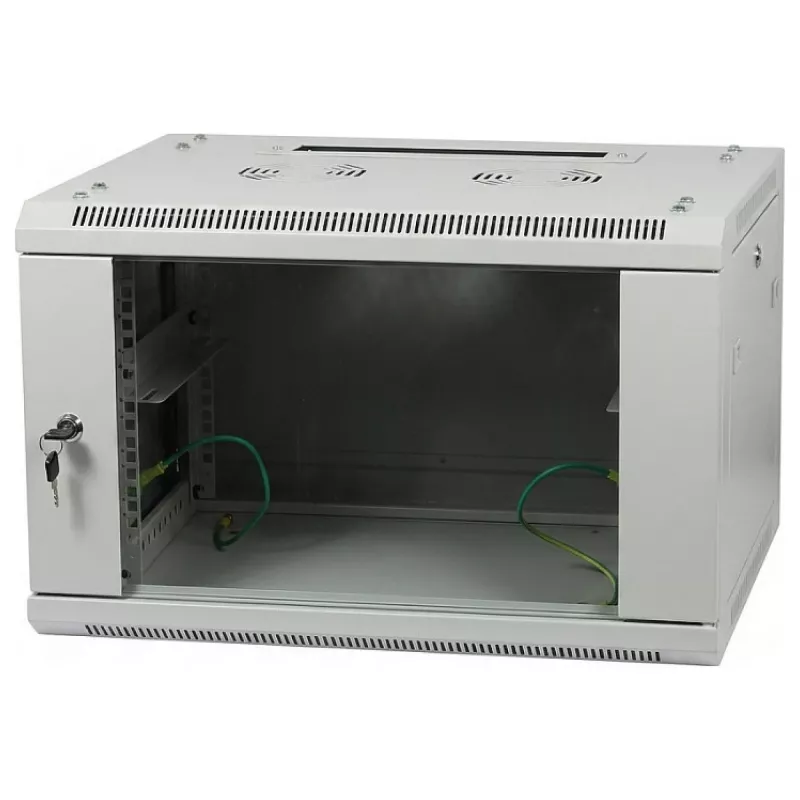

ALLNET 19 inch Wall-Mounted Enclosure 15U 1-Piece Depth 600mm Light Grey Flat Pack SMA Series

The ALLNET SMA-Series 19" wall-mounted enclosure offers a robust and secure housing solution for your network and IT equipment. With 15 rack units (15U) and a depth of 600mm, this single-section cabinet is ideal for organizing switches, patch panels, and other 19" components in space-constrained environments. The light grey (RAL 7035) powder-coated steel construction ensures durability and a professional appearance. Delivered as a flat pack for easy transport and assembly, this enclosure combines functionality with cost-effectiveness.

Advantages

Space-saving wall-mount design frees up floor space. Lockable safety glass door provides security and visibility. Removable side panels allow easy access for cable management. Adjustable 19" mounting rails (front and rear) accommodate various equipment depths. Passive ventilation with preparation for fan unit ensures adequate cooling. Quick assembly from flat pack reduces shipping costs and storage footprint.

Suitable for

• Network cabinets for small to medium server rooms
• IT equipment housing in offices, schools, and retail spaces
• 19" rack-mount switches, patch panels, and UPS systems
• Structured cabling installations requiring wall-mounted termination

Key specifications

• Cabinet Type: Wall Mount Cabinet
• Rack Standard: 19 inch
• Rack Units: 15U
• External Dimensions (W x D x H): 600 x 600 x 750 mm
• Usable Internal Depth: Approx. 550 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel sheet, powder-coated
• Front Door: Lockable safety glass door
• Side Panels: Removable
• Cable Entry: Top and bottom with brush strips
• Ventilation: Passive ventilation, prepared for fan unit
• Mounting Rails: Adjustable 19" mounting rails (front and rear)
• Load Capacity: 60 kg
• Protection Class: IP20
• Shipping Condition: Disassembled (Flat Pack)

Recommendations

For optimal cable management, pair this enclosure with ALLNET cable management panels and patch panels. Ensure wall mounting is performed on a solid wall capable of supporting the loaded weight. Consider adding a fan unit for active cooling in high-density setups.
