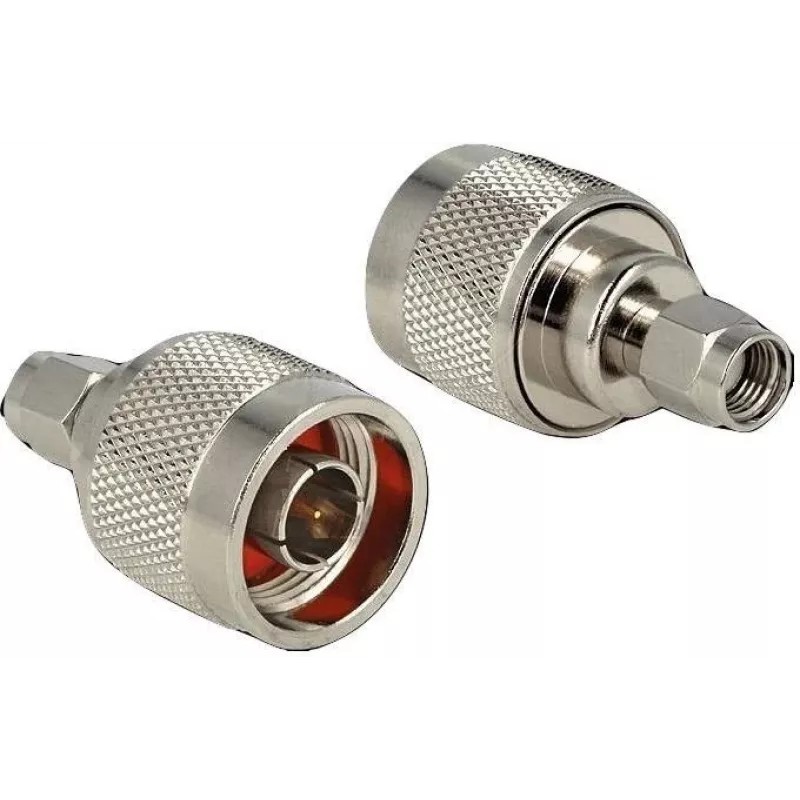

ALLNET ANT-ADP-RSMAM-NM N-Type to RP-SMA Male Coaxial Adapter

The ALLNET ANT-ADP-RSMAM-NM is a high-quality coaxial adapter designed for reliable RF connections. It converts an N-Type male connector to an RP-SMA male connector, making it ideal for use in wireless communication, antenna systems, WLAN, and test equipment. This straight adapter features a 50 Ohm impedance and supports frequencies from DC to 6 GHz, ensuring excellent signal integrity.

Advantages

This adapter offers low insertion loss (<0.2 dB) and a low VSWR (<1.3:1), minimizing signal degradation. The brass body with nickel plating and gold-plated brass center contact provide durability and corrosion resistance. With a PTFE insulator and a wide operating temperature range (-40°C to +85°C), it performs reliably in various environments.

Suitable for

• RF and wireless communication systems
• Antenna connections and WLAN setups
• Test and measurement equipment
• Replacing or extending coaxial cables

Key specifications

• Connector A: N-Type Male
• Connector B: RP-SMA Male
• Impedance: 50 Ohm
• Frequency Range: DC to 6 GHz
• VSWR: < 1.3:1
• Insertion Loss: < 0.2 dB
• Body Material: Brass, Nickel Plated
• Center Contact: Gold Plated Brass
• Insulator: PTFE
• Operating Temperature: -40°C to +85°C
• Durability: 500 mating cycles

Recommendations

For optimal performance, pair this adapter with high-quality coaxial cables and connectors. Ensure proper torque when mating to avoid damage. Suitable for indoor and outdoor use when protected from moisture.
