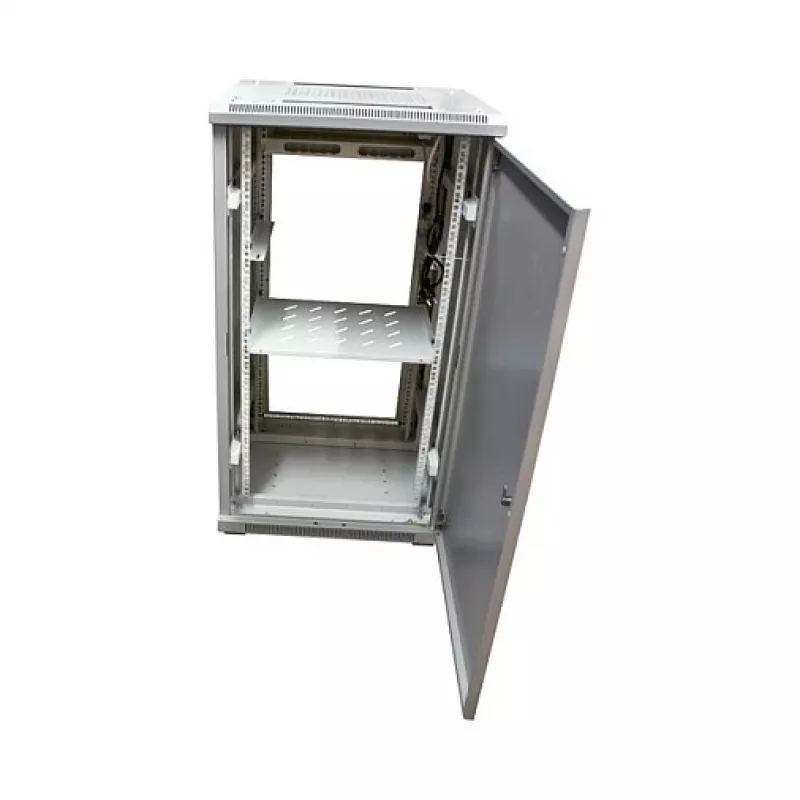

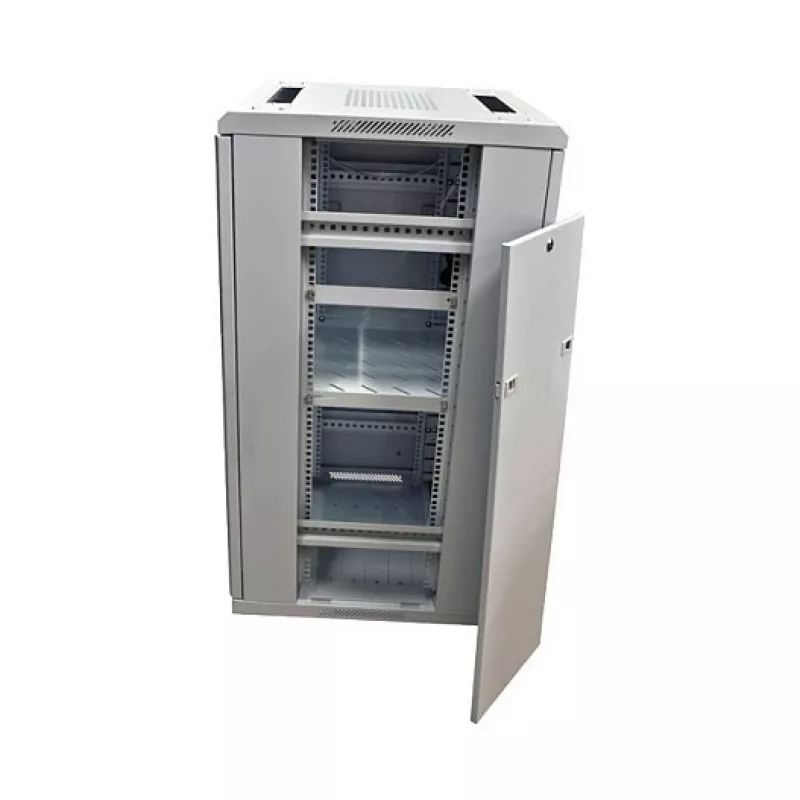

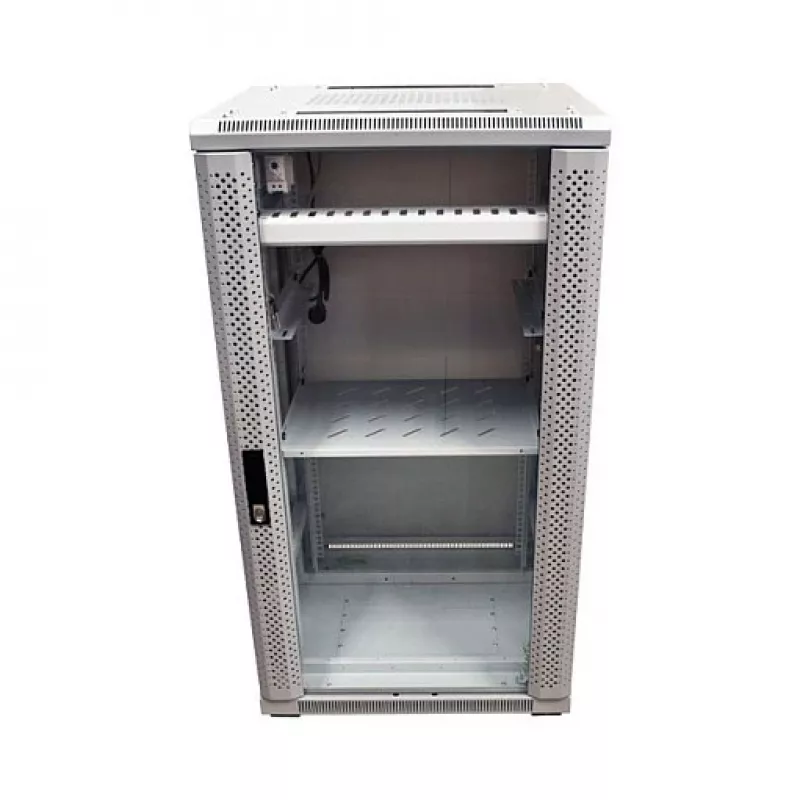

ALLNET ALL-SNB6942BDGrau 19 Inch 42U Network Server Rack Cabinet 600x900mm Light Grey SNB Series

The ALLNET ALL-SNB6942BDGrau is a high-quality 19-inch network server rack cabinet from the SNB series, designed for professional data center and IT infrastructure environments. With 42U of rack space, a width of 600 mm, and a depth of 900 mm, this freestanding rack offers ample room for servers, switches, patch panels, and other 19-inch equipment. The cabinet is constructed from SPCC cold rolled steel with a durable powder-coated finish in light grey (RAL 7035), ensuring long-lasting performance and a clean appearance.

Advantages

Robust construction with a static load capacity of 800 kg supports heavy equipment. The front single-section safety glass door and rear steel door are both lockable, providing security for your valuable hardware. Removable side panels with locks allow easy access for installation and maintenance. The rack is pre-assembled for quick deployment, saving time and effort.

Suitable for

• Data centers and server rooms requiring a reliable 42U rack solution
• Network infrastructure including switches, routers, and patch panels
• Server installations for enterprise or small business environments
• Audio/visual equipment mounting in professional AV setups

Key specifications

• Rack Standard: 19 inch
• Rack Units: 42U
• External Dimensions (WxDxH): 600 x 900 x 2055 mm
• Internal Usable Depth: Approx. 830 mm
• Material: SPCC Cold Rolled Steel
• Colour: Light Grey (RAL 7035)
• Static Load Capacity: 800 kg
• Protection Class: IP20
• Front Door: Single-section safety glass, lockable
• Rear Door: Single-section steel, lockable
• Side Panels: Removable, lockable
• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Front and rear, depth-adjustable
• Construction: Pre-assembled

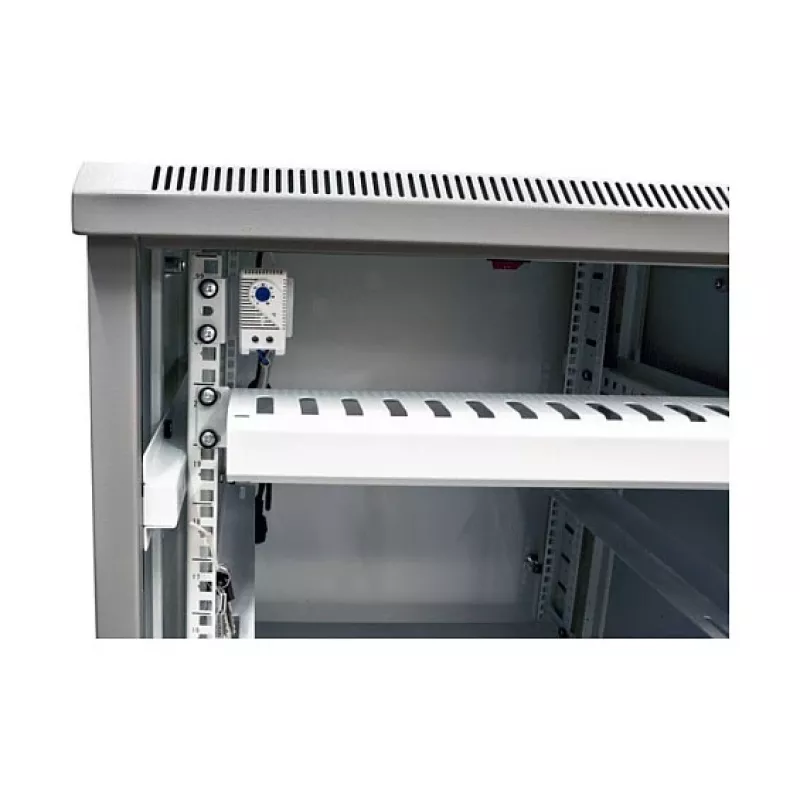

• Ventilation: Passive ventilation, prepared for active fan units
• Included Accessories: 4x Leveling feet, 4x Castors (2 with brakes), 20x Cage nuts, 2x Keys for front/rear door, 2x Keys for side panels
• Door Opening Angle: 180 degrees
• Finish: Powder coated

Recommendations

For optimal cable management, consider using horizontal or vertical cable managers. The rack is compatible with standard 19-inch equipment and can be customized with optional fan units for active cooling. Ensure proper ventilation in the installation area to maintain equipment performance.
