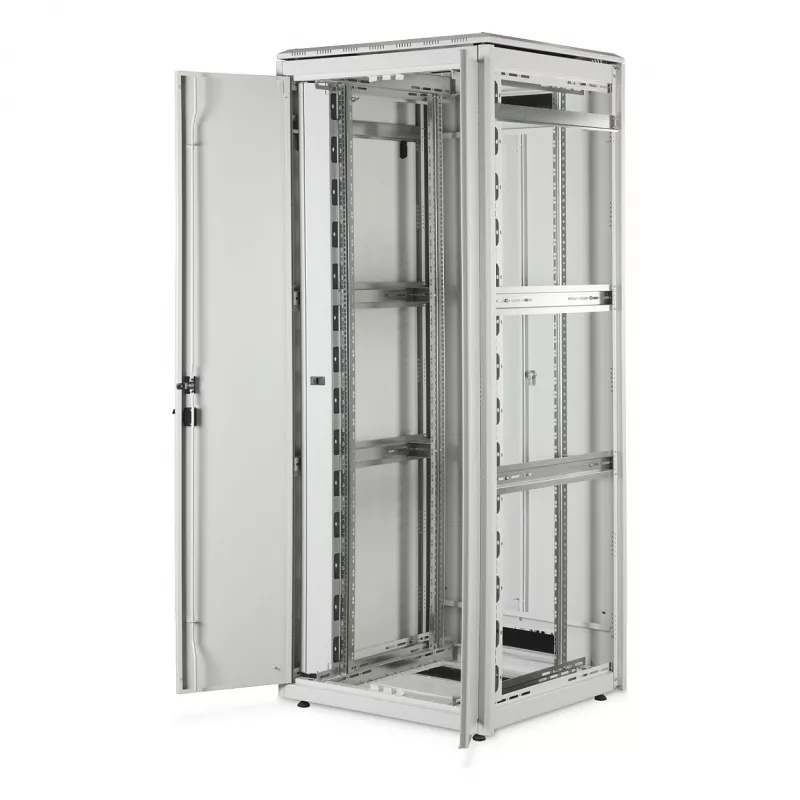

DIGITUS Network Cabinet Unique Series Grey 42HE 800x800mm Double-Wing Steel Front Door

The DIGITUS Network Cabinet Unique Series is a high-quality, freestanding 19-inch rack designed for professional network and server environments. With a capacity of 42U and dimensions of 800x800 mm (WxD), this cabinet offers ample space for your equipment while ensuring robust security and efficient cable management.

Advantages

This network cabinet provides exceptional stability with a static load capacity of up to 800 kg. The double-wing steel front and rear doors feature 80% perforation for optimal ventilation, and the doors open 180 degrees for easy access. Removable, lockable side panels enhance security and serviceability. The cabinet is pre-assembled for quick deployment, and adjustable 19-inch mounting profiles allow flexible equipment installation.

Suitable for

• Data centers and server rooms requiring high-density equipment mounting
• Network infrastructure for enterprise, industrial, or telecommunications applications
• Organizations needing secure, lockable enclosures for sensitive hardware

Key specifications

• Rack capacity: 42U (42 height units)
• External dimensions: 800 x 800 x 2055 mm (WxDxH)
• Color: Grey (RAL 7035)
• Material: Steel sheet
• Front door: Double-wing steel, perforated (80%), lockable
• Rear door: Double-wing steel, perforated (80%), lockable
• Side panels: Removable, lockable
• Static load capacity: 800 kg
• Protection class: IP20
• Mounting profiles: 19-inch, adjustable depth (front and rear)

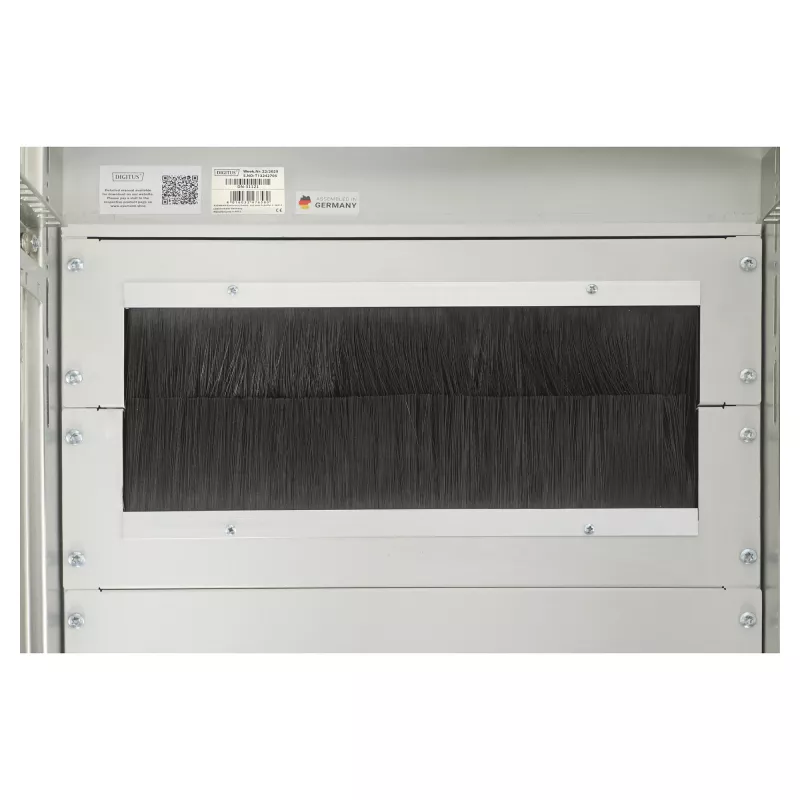

• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, prepared for active fan units
• Included accessories: 4x leveling feet, 4x castors, 2x keys for front/rear door, 2x keys for side panels, mounting hardware
• Construction: Pre-assembled
• Usable depth: Approx. 680 mm (between 19" profiles)
• Door opening angle: 180 degrees
• Frame type: Welded frame
• Grounding: All parts grounded

Recommendations

This cabinet is ideal for organizing and protecting your network equipment. For optimal airflow, consider installing active fan units in the prepared ventilation slots. Ensure the floor can support the combined weight of the cabinet and installed equipment.
