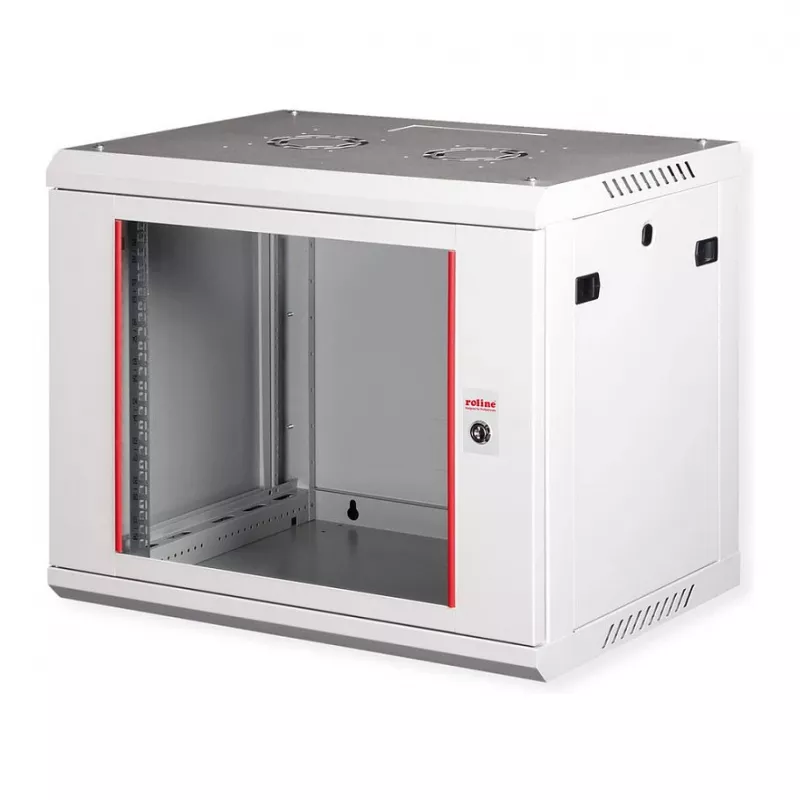

ROLINE 19-Inch Wall-Mount Cabinet Basic Plus 6U 600x450 mm WxD Grey

When floor space is tight but you still need to securely house 19-inch networking gear, the ROLINE Basic Plus wall-mount cabinet offers a compact, durable solution. Ideal for server rooms, schools, or industrial facilities, this grey steel cabinet keeps switches, patch panels, and small servers organised and protected.

Key specifications

• 19-inch wall-mount cabinet, 6U height
• External dimensions: 600 x 450 x 320 mm (W x D x H)
• Colour: Grey (RAL 7035)
• Material: Steel sheet
• Lockable safety glass front door

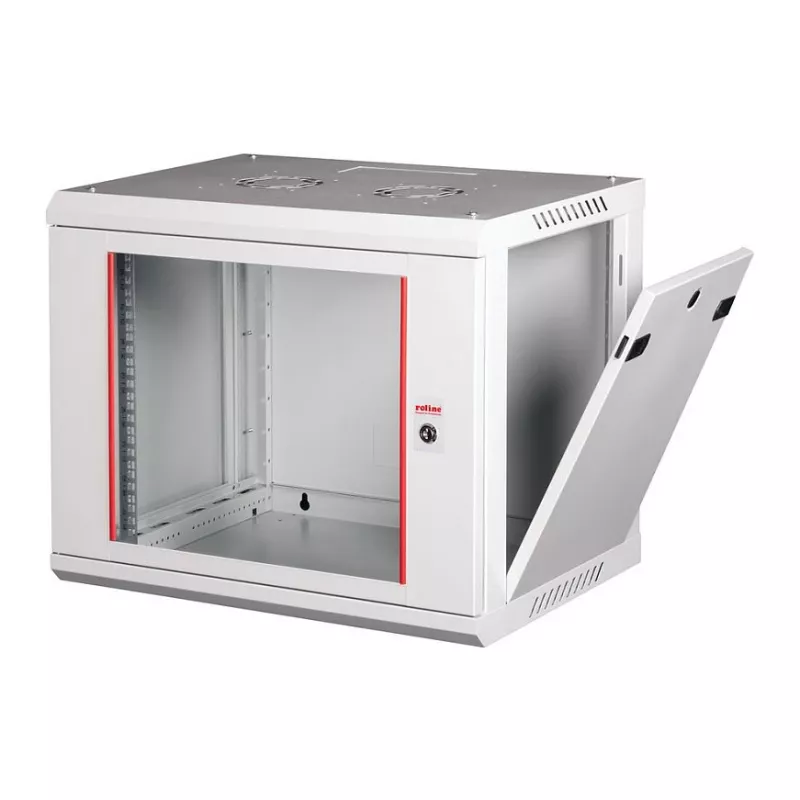

• Removable and lockable side panels
• Max load capacity: 60 kg
• Protection rating: IP20
• Cable entry points at top and bottom
• Passive ventilation via perforated panels

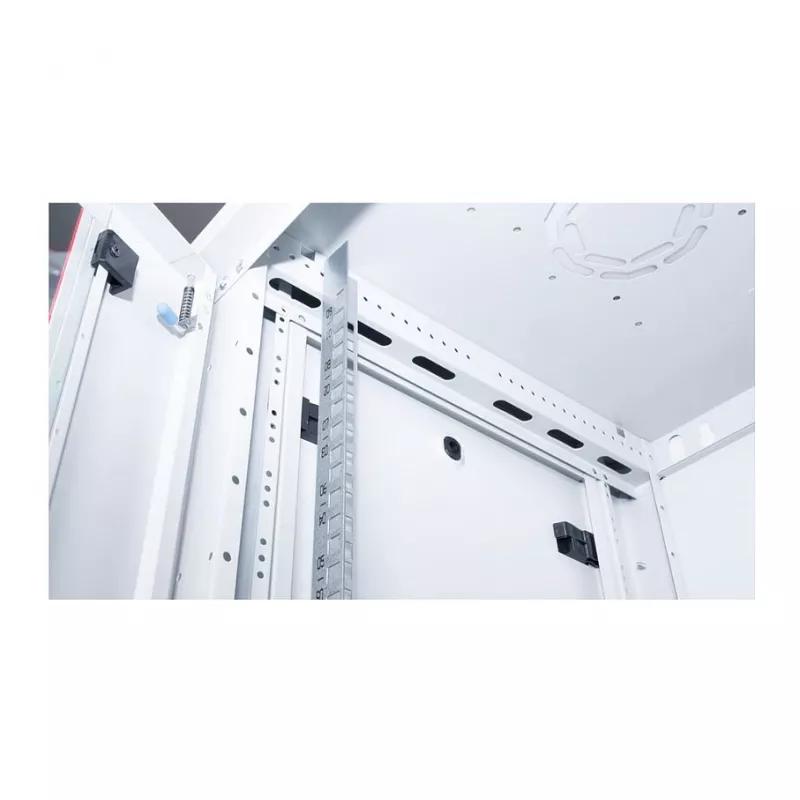

• Two depth-adjustable 19-inch profile rails
• Pre-assembled, includes mounting kit and keys

Why choose it

The Basic Plus series combines practicality with security. The lockable glass door provides a clear view of your equipment while deterring unauthorised access. Removable side panels simplify installation and maintenance, while the adjustable mounting rails allow flexibility for different device depths. With a load capacity of 60 kg, it comfortably supports typical network components. The IP20 rating protects against solid objects larger than 12 mm, suitable for indoor environments.

Ideal use cases

• Wall-mounting network switches and patch panels in small server rooms or retail back offices
• Centralising IT equipment in classrooms or meeting rooms
• Housing AV or automation equipment in industrial environments

Good to know

This cabinet is supplied pre-assembled, so you can mount it straight out of the box. The included mounting kit and keys (two for the front door, two for the side panels) provide everything needed for a secure installation. The perforated top and bottom panels ensure passive airflow, keeping your equipment cool without additional fans.
