ALLNET 4duino Joystick Module B01 - Analog 2-Axis with Push Button for Arduino, Raspberry Pi

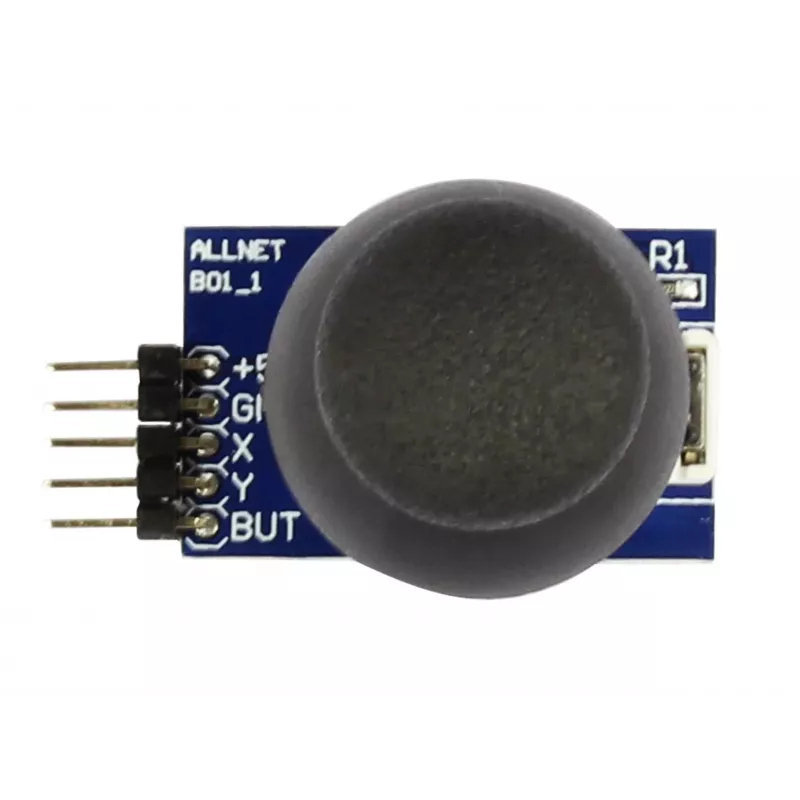

The ALLNET 4duino Joystick Module B01 is a high-quality analog joystick module designed for microcontroller projects. It features two analog axes (X and Y) and a digital push button (Z-axis), making it ideal for robot control, game input, menu navigation, and drone control. The module operates at 3.3V to 5V DC and provides a 5-pin header interface (VCC, GND, VRX, VRY, SW). With a 10K Ohm potentiometer and 10-bit ADC output range of 0-1023, it offers precise control. Compatible with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers.

Advantages

This joystick module offers reliable performance with dual-axis analog control and a built-in push button. Its compact design and mounting holes allow easy integration into various projects. The blue PCB and black joystick cap provide a professional appearance.

Suitable for

• Robot control systems
• Game input devices
• Menu navigation interfaces
• Drone control systems
• Educational microcontroller projects

Key specifications

• Module Type: Analog Joystick Module
• Number of Axes: 2 (X-axis, Y-axis) plus 1 push button (Z-axis)
• Output Type: Analog voltage (X/Y), Digital HIGH/LOW (Z)
• Operating Voltage: 3.3V - 5V DC
• Interface: 5-pin header (VCC, GND, VRX, VRY, SW)
• Potentiometer Resistance: 10K Ohm
• Analog Output Range: 0-1023 (with 10-bit ADC)
• PCB Color: Blue
• Joystick Cap Color: Black
• Operating Temperature: -20°C to +70°C

Recommendations

For best results, use with a 5V microcontroller and ensure proper wiring. The module can be directly connected to analog input pins. Suitable for beginners and advanced users alike.
