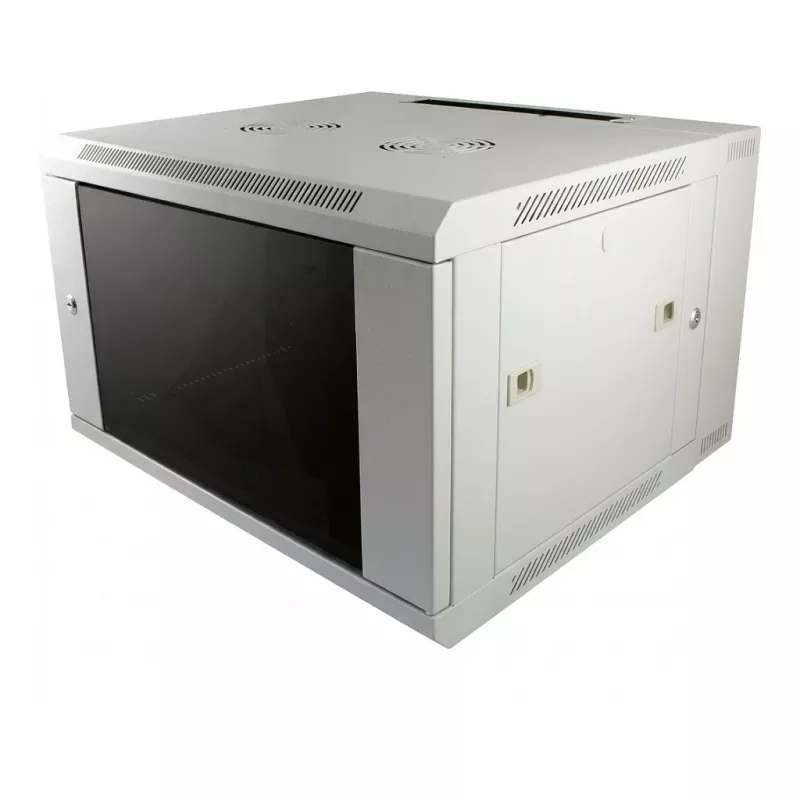

ALLNET 19 inch Wall-Mounted Enclosure 15U 1-Piece Depth 450mm Light Grey Flat Pack SMA Series

The ALLNET SMA-Series 19" wall-mounted enclosure offers a robust and secure housing solution for your network and IT equipment. With 15U of rack space and a depth of 450mm, this single-section cabinet is ideal for small to medium installations where space is at a premium. Delivered as a flat pack for easy transport and assembly, it features a light grey (RAL 7035) steel body with a tempered safety glass front door and lockable side panels.

Advantages

Space-saving wall-mount design with 15U capacity; sturdy steel construction with load capacity up to 60 kg; tool-free cable entry via top and bottom brush strips; adjustable 19" mounting profiles for flexible equipment installation; lockable front door and side panels for enhanced security.

Suitable for

• Network switches, patch panels, and routers
• Small server and IT equipment installations
• Retail, office, and industrial environments requiring wall-mounted enclosures

Key specifications

• Rack Units: 15U
• Form Factor: 19-inch
• Mounting Type: Wall-mount
• Construction Type: Single-section
• External Depth: 450 mm
• External Width: 600 mm
• External Height: 750 mm
• Color: Light Grey (RAL 7035)
• Delivery State: Flat Pack (Disassembled)
• Material: Steel Sheet
• Front Door Type: Tempered Safety Glass Door
• Side Panels: Removable, Lockable
• Cable Entry: Top and Bottom (with brush strips)
• Ventilation: Passive (prepared for fan unit)
• Load Capacity: 60 kg
• Protection Class: IP20
• Mounting Profiles: 2x 19" adjustable front profiles
• Locking Mechanism: Cylinder lock (front door, side panels)
• Series: SMA-Series
• Compliance: RoHS

Recommendations

This enclosure is delivered as a flat pack and requires assembly. All necessary mounting hardware is included. For optimal ventilation, consider adding an optional fan unit.
