Air cooler Xilence Performance A+ XC061

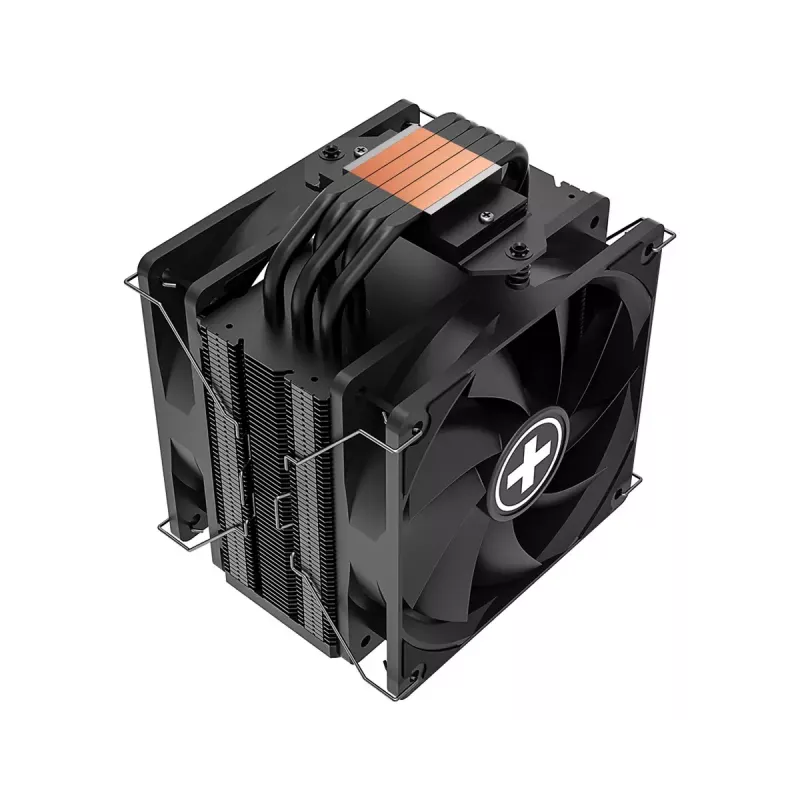

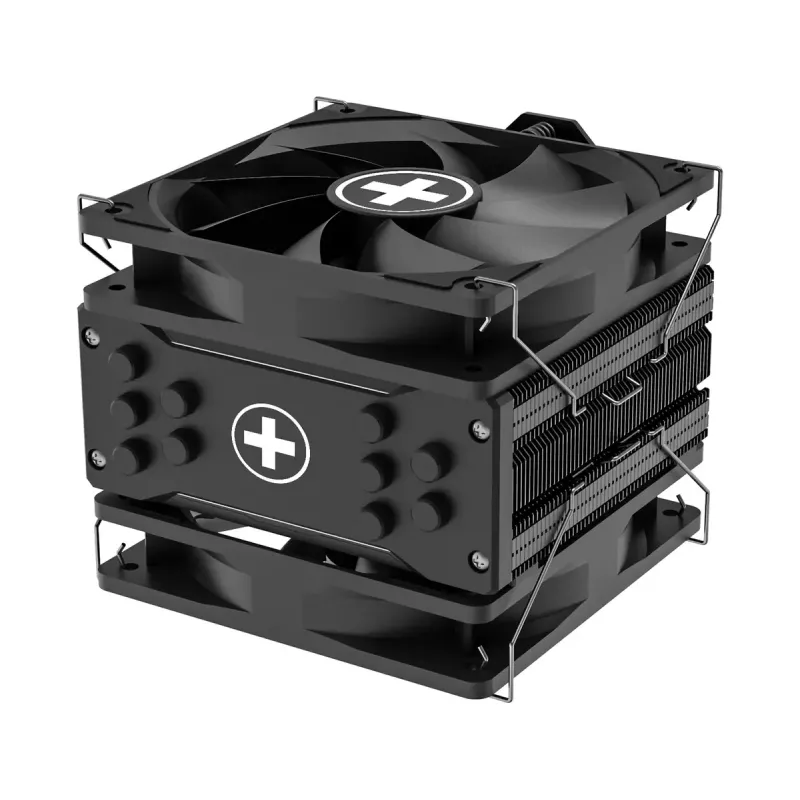

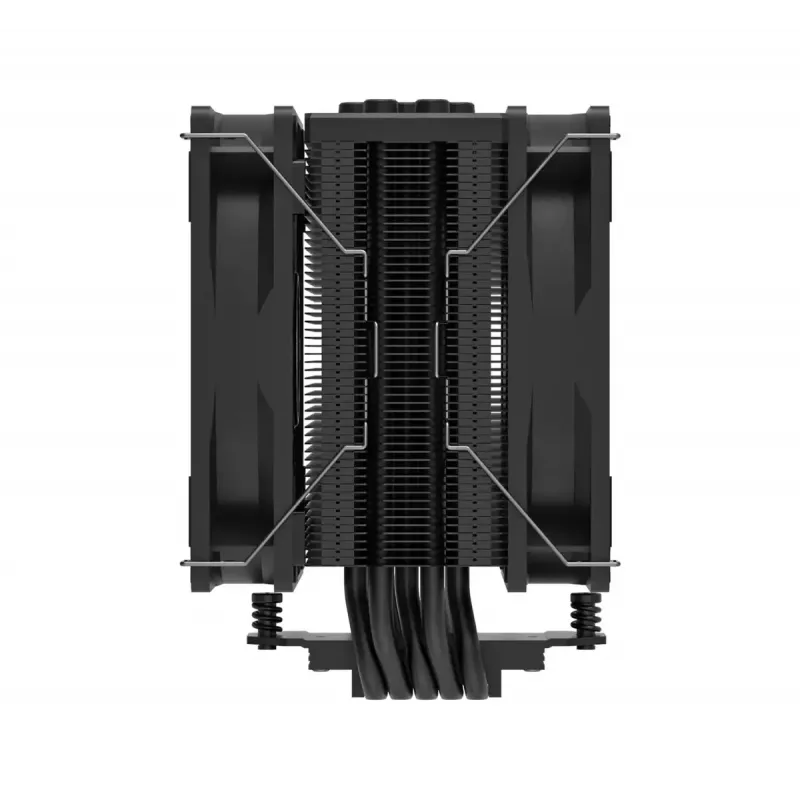

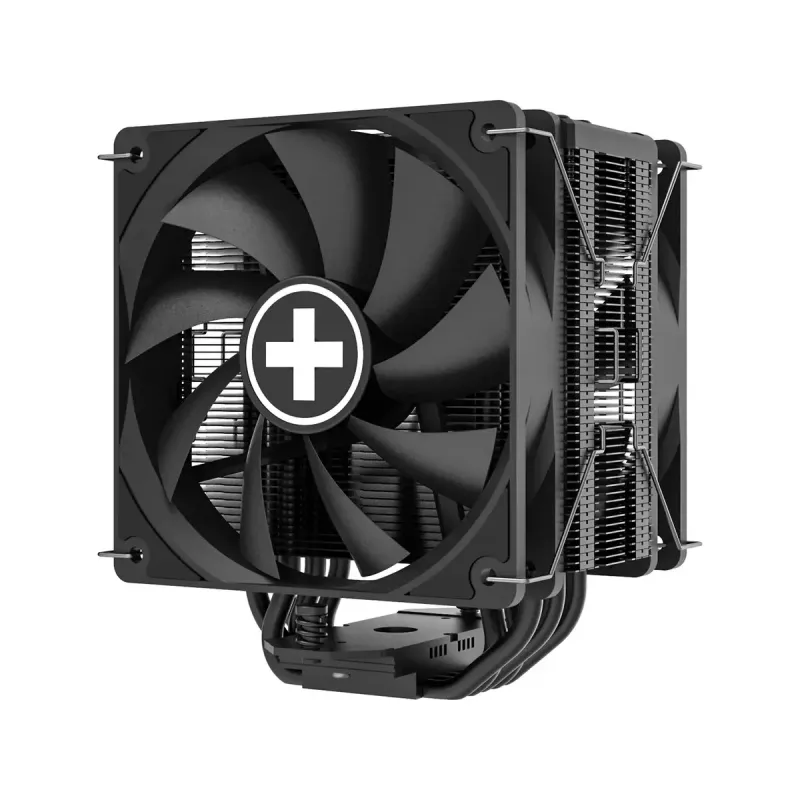

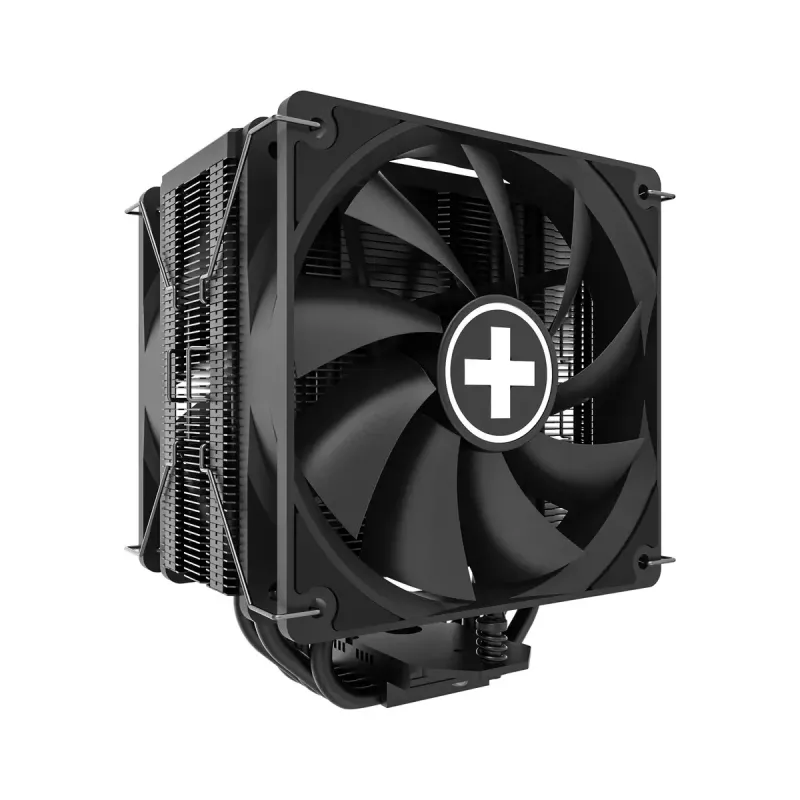

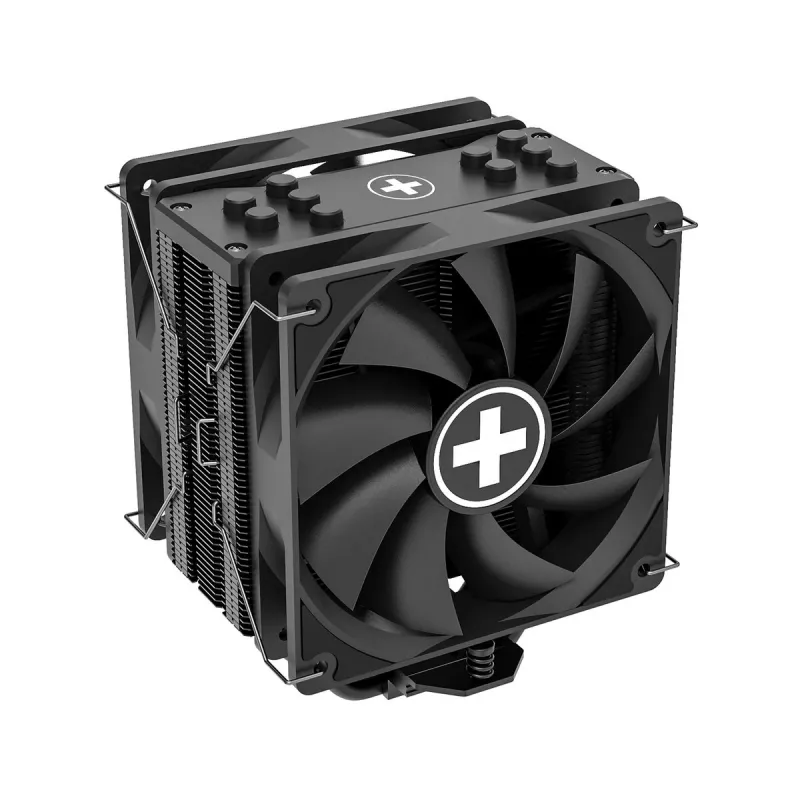

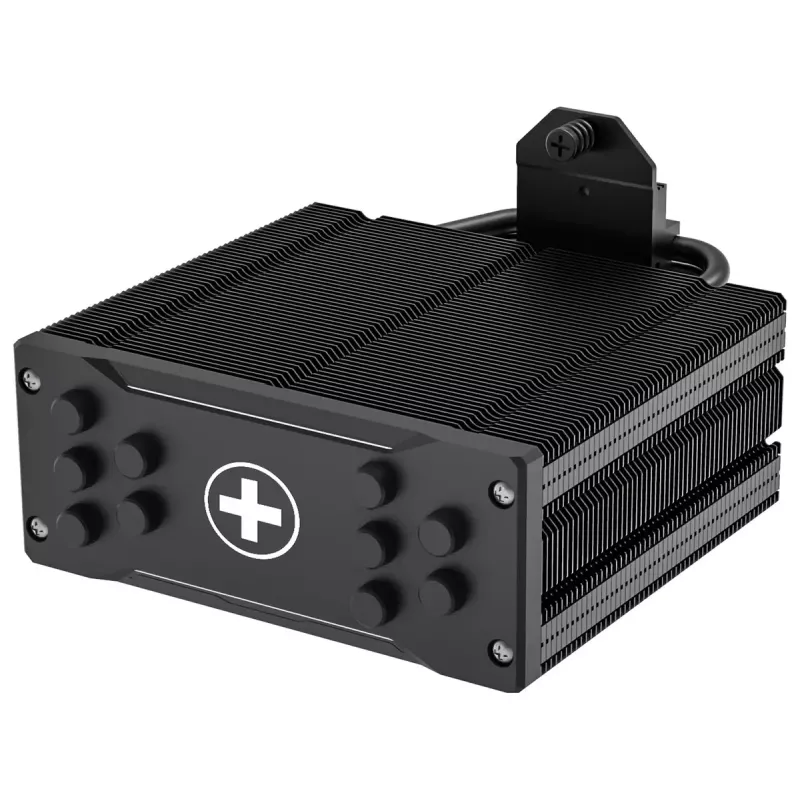

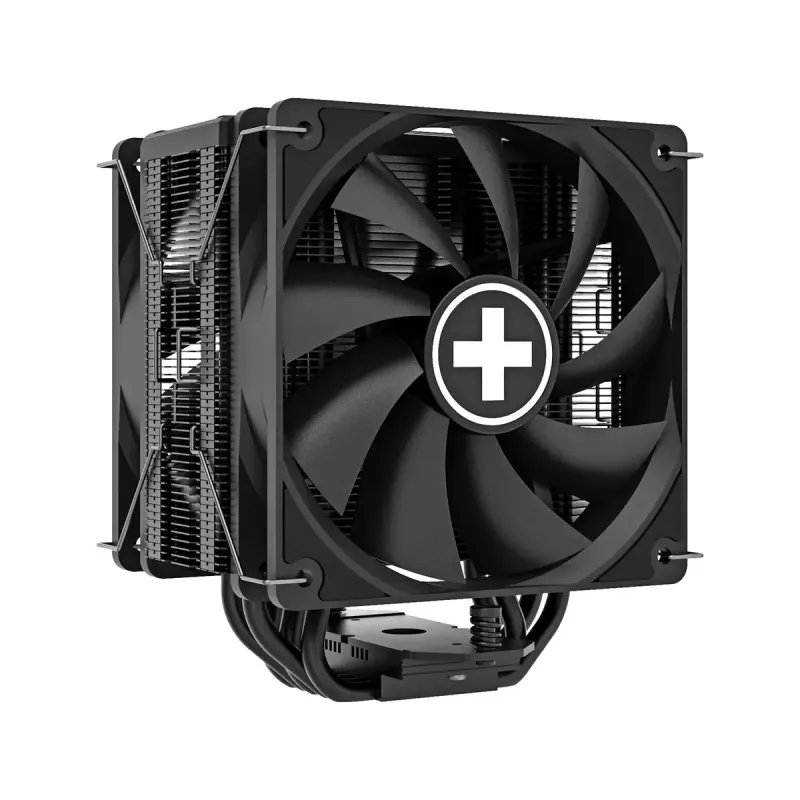

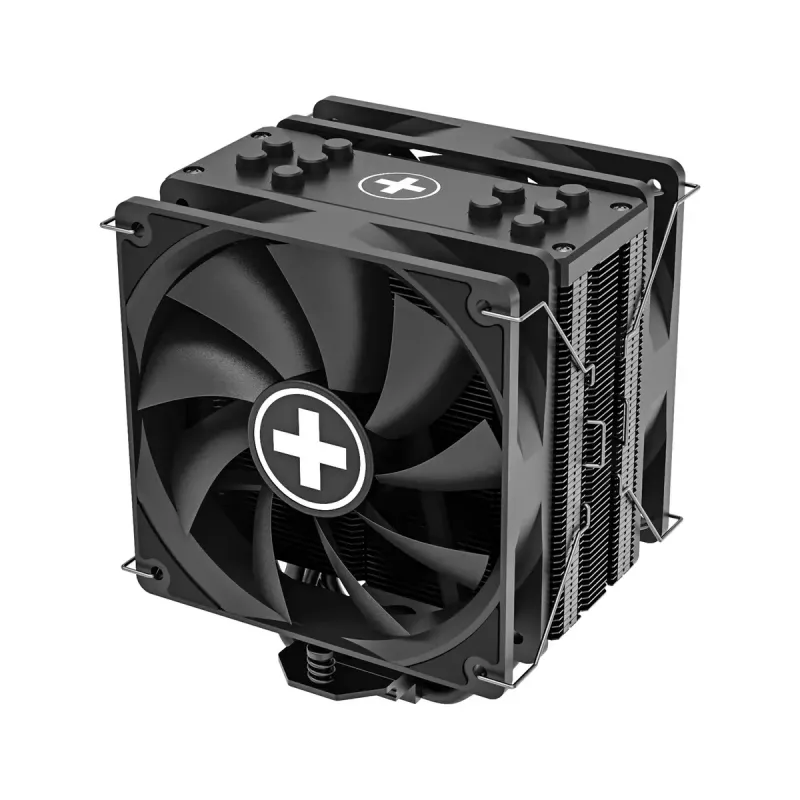

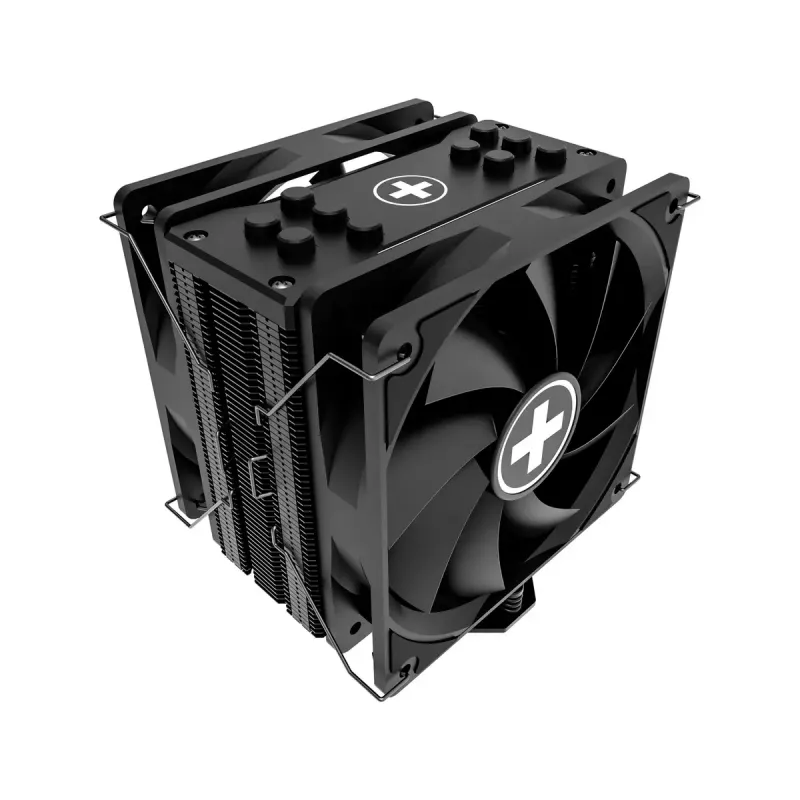

The M705D tower CPU cooler from the A+ series is a compact dual‑fan cooler designed for high-performance multi‑core processors. It features five black heat pipes in direct contact with the CPU, transferring up to 220 W of thermal power into a dense array of cooling fins. The cooler supports current Intel and AMD sockets and is supplied with mounting hardware and thermal paste for straightforward installation.

Advantages

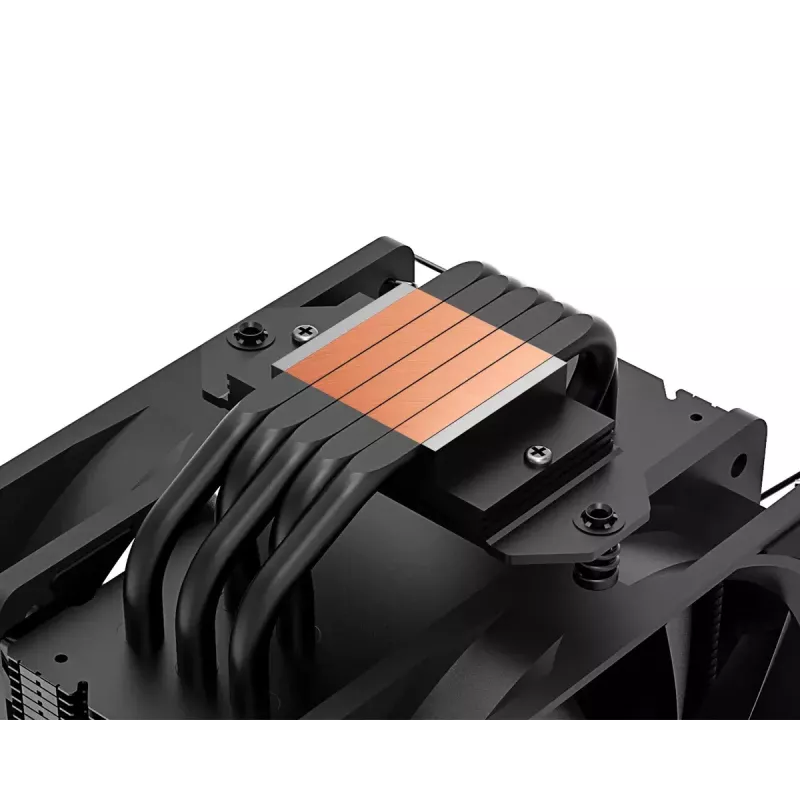

The direct‑contact heat pipes provide efficient and uniform heat transfer from the CPU to the heatsink. Dual PWM‑controlled 120 mm fans ensure active airflow through the fin stack for improved cooling performance. Multi‑socket compatibility covers a wide range of Intel and AMD platforms, and the compact tower design saves space inside typical PC cases.

Key specifications

• Model: M705D (A+ series)
• Heat pipes: 5 black direct‑contact heat pipes
• Cooling capacity: up to 220 W thermal dissipation
• Fans: 2 × 120 mm PWM‑controlled fans
• Socket compatibility: Intel LGA 1700/2066/2011/1200/1151/1150/1155/1156; AMD AM4, AM5
• Includes: mounting bracket, illustrated assembly instructions, tube of thermal paste

How to use

Attach the included mounting module for the target socket according to the illustrated instructions. Apply the supplied thermal paste to the CPU heat spreader in a thin, even layer, then position the cooler so the heat pipes make direct contact with the processor. Secure the cooler with the provided fasteners and connect both PWM fans to the motherboard fan headers. Verify proper seating and fan operation before closing the case.

Recommendations

Ensure your case has sufficient clearance for a tower cooler and adequate front/rear airflow. For optimal thermal performance, monitor CPU temperatures under load after installation and reapply thermal paste after several years or if removing the cooler.
