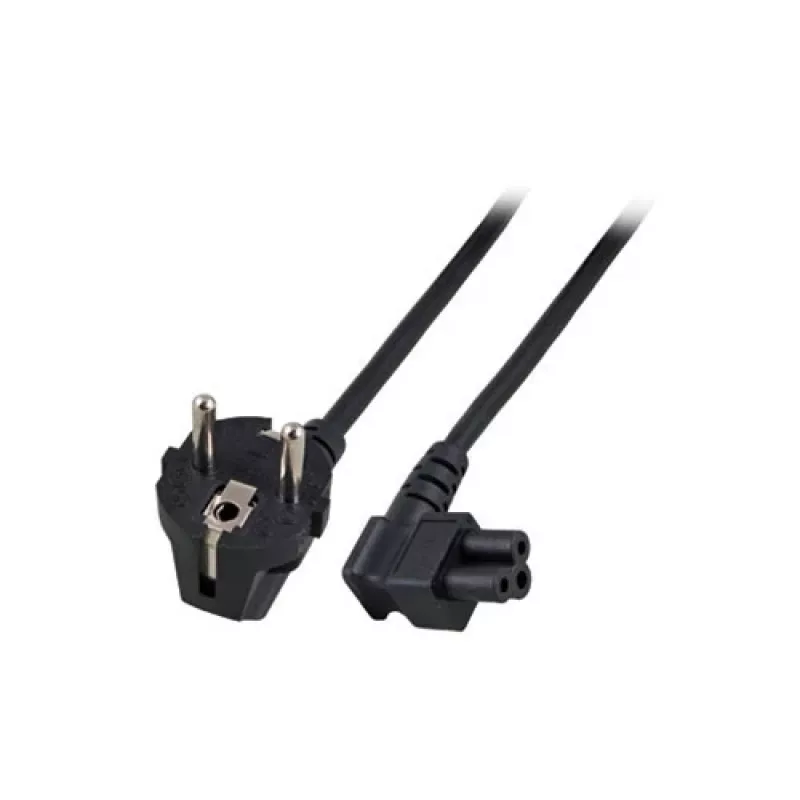

ACT Powercord mains connector CEE 7/7 male (angled) - C5 (angled) black 1.8 m

ACT Powercord with an angled CEE 7/7 male plug and an angled IEC 60320 C5 female connector, length 1.8 m, black. The cable is constructed with conductors rated for 230 V AC and supports currents of 6 A (0.75 mm² conductors) or 10 A (1.00 mm² conductors), making it suitable for powering laptops, small appliances and other compatible equipment where space is limited.

Advantages

The angled CEE 7/7 and C5 connectors allow connections in confined spaces and reduce strain on ports. Dual conductor size ratings (3x 0.75 mm² and 3x 1.00 mm²) provide compatibility with devices requiring up to 6 A or up to 10 A at 230 V AC. The 1.8 m length offers flexibility for typical desk and floor setups, and the black jacket provides a neutral, unobtrusive appearance.

Suitable for (tasks / use cases)

• Connecting laptops and notebook power adapters with a C5 inlet
• Powering small electronic devices and appliances with compatible current requirements
• Use in locations with limited clearance behind devices (angled plugs)

Key specifications

• Length: 1.8 m
• Connector 1: angled CEE 7/7 male (European plug)
• Connector 2: angled IEC 60320 C5 female (C5 coupler)
• Conductors: 3 x 0.75 mm² (230 V AC / 6 A) and 3 x 1.00 mm² (230 V AC / 10 A)
• Colour: Black
• Brand: ACT, MPN: AK5005, EAN: 8716065283037

How to use

Insert the angled CEE 7/7 male plug into a compatible 230 V wall outlet and connect the angled IEC C5 female end to the device's C5 inlet. Ensure the device's required current does not exceed the rated 6 A or 10 A values depending on the conductor specification. Route the cable to avoid sharp bends and strain on both connectors.

Recommendations

Do not exceed the rated current for the connected device. Inspect the cable regularly for damage and replace it if insulation or connectors are compromised. Use the angled design to minimise mechanical stress on device inlets in tight spaces.
