ACT 70 meter Singlemode 9/125 OS2 indoor/outdoor cable 4 way with LC connectors

The ACT Singlemode Fiber Optic Cable 70m 9/125 OS2 with 4x LC connectors on each end is a pre-terminated indoor/outdoor link designed for high-speed singlemode networks. With a 9 µm core and OS2 grading, this 70-metre cable supports long-distance signal transmission and is suitable for a range of networking and telecommunications installations. The cable is delivered ready-to-use with connectors factory-terminated and individually tested, eliminating the need for onsite termination tools and reducing installation time.

Advantages

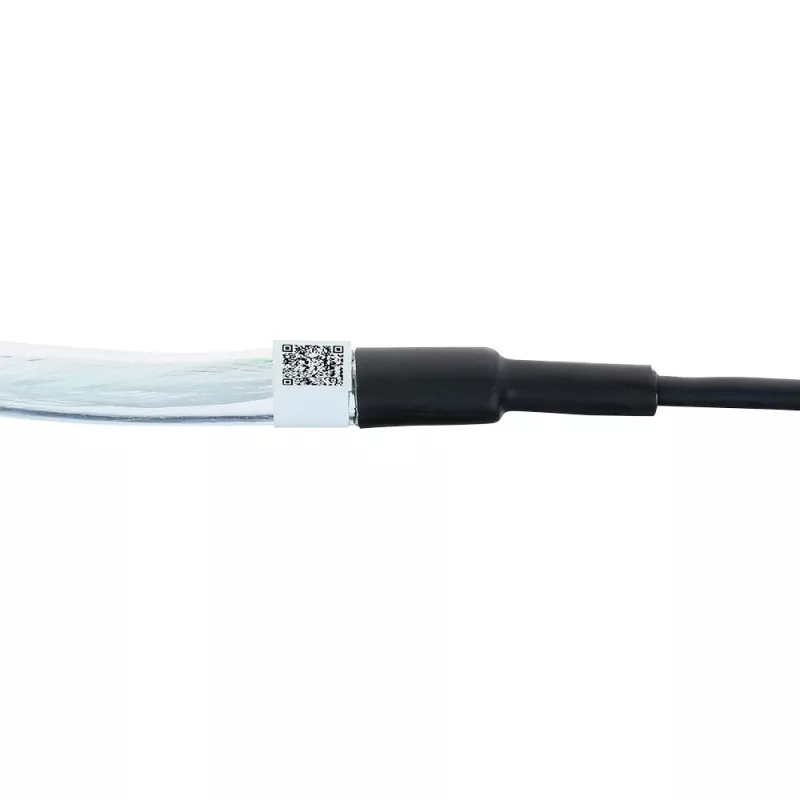

This ACT pre-terminated fiber cable combines an OS2 singlemode fiber specification with pre-attached LC connector pairs to provide consistent optical performance and simple deployment. Each cable undergoes individual testing and is supplied with a test report, offering predictable attenuation values and reliable operation. The construction includes a protective transparent tube around the fanout and connectors for mechanical protection during installation, a drawbar eye for pulling forces up to 350 N, and a compact protective hose diameter that facilitates routing through conduits.

Suitable for

• Connecting equipment rooms, patch panels and network cabinets within buildings
• Linking floors in multi-storey buildings or connecting different rooms
• Outdoor campus or site-to-site connections where indoor/outdoor rated cable is required
• System integrators and installers who need plug-and-play fiber links without onsite termination

Key specifications

• Fiber type: Singlemode OS2, 9/125 µm
• Length: 70 metres
• Connectors: 4x LC connectors per end (pre-terminated)
• Average attenuation: approximately 0.10 dB per mated connector (typical factory performance)
• Maximum pulling force: up to 350 N (with drawbar eye)
• Suitable for indoor and outdoor installations; compact protective hose diameter for conduit routing

How to use

Unpack the pre-terminated ACT fiber cable and verify the test report included with the product. Route the cable through the planned pathway, using the drawbar eye when pulling to avoid stress on the connectors. Remove the protective caps from the LC connectors only at the point of termination to prevent contamination. Insert the LC connectors into the appropriate ports on patch panels, transceivers or network devices, and secure the cable using strain relief or cable management hardware to maintain the specified bending radius and avoid sharp bends.

Recommendations

Follow the manufacturer’s installation guidance and the printed QR-code instructions on the cable for details on handling, bend radius, and testing. Use dust caps until final connection to maintain low attenuation. For outdoor runs, ensure appropriate route protection and environmental sealing at termination points. If testing is required after installation, use the supplied factory test report as a baseline and perform end-to-end verification with suitable singlemode test equipment.
