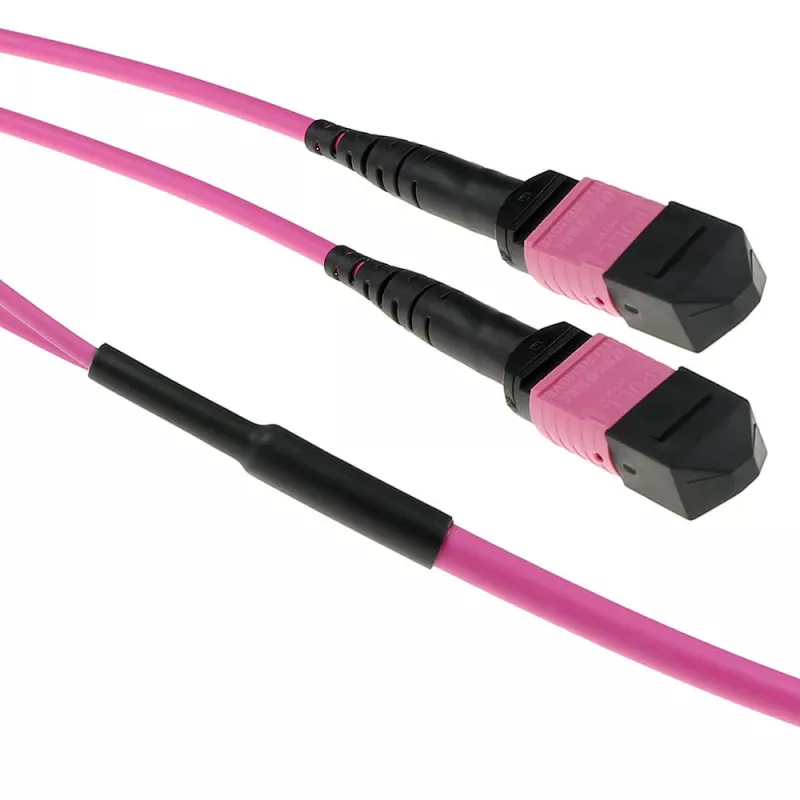

ACT 50 meter Multimode 50/125 OM4(OM3) polarity B fiber trunk cable with 2 MTP/MPO female connectors each side

Fiber trunk cable ACT 50 meter Multimode 50/125 OM4(OM3) polarity B is a preterminated multimode fiber trunk with MTP/MPO female connectors on both ends, designed for high-density cabling in data centers and server rooms. With a 50 µm core diameter and a compact 6.8 mm cable design, this ACT trunk cable supports fast installation and reliable multimode transmission for switches, servers and storage equipment.

Advantages

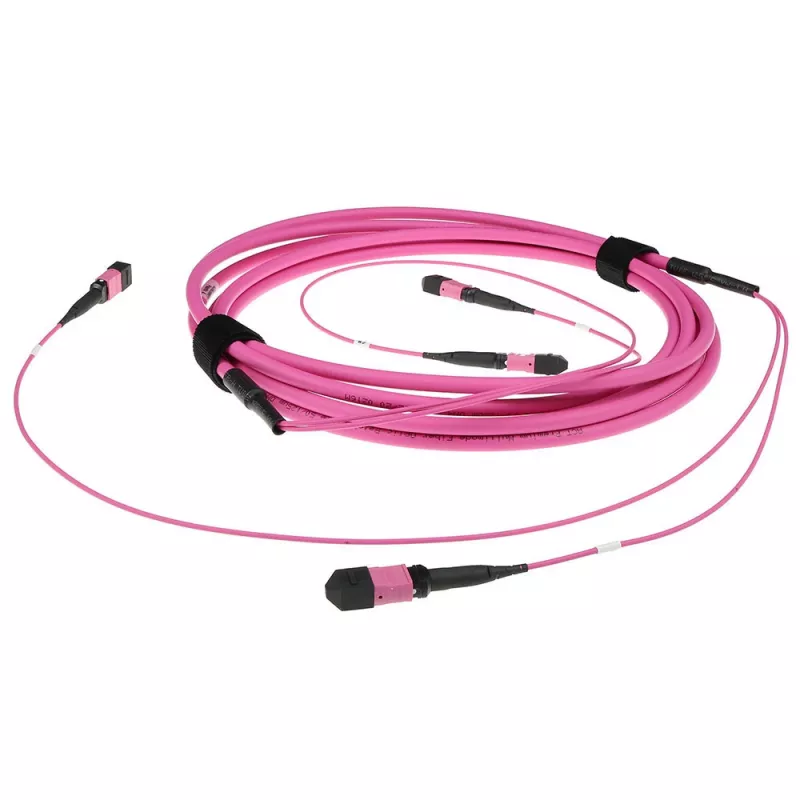

The ACT MTP/MPO trunk cable combines preterminated MTP/MPO connectors with an ultra-compact cable diameter to maximise cable capacity in ducts and 19" cabinets, allowing up to 50% more cables in the same raceway. Compact 2 mm stepped fanouts per 12 fibers reduce space near active equipment and racks while providing strain relief comparable to standard patch cords. The preterminated design supports both point-to-point and structured cabling, enabling rapid deployment and straightforward connection to patch panels and equipment.

Suitable for

• High-density interconnects in data centres and server rooms
• Point-to-point equipment links (switch-to-switch, server-to-switch)
• Structured cabling systems with MTP/MPO patch panels
• Environments requiring space-saving cable routing in ducts and 19" cabinets

Key specifications

• Product name: Fiber trunk cable ACT 50 meter Multimode 50/125 OM4(OM3) polarity B
• Length: 50 m
• Fiber type: Multimode 50/125 µm (OM4 compatible with OM3)
• Polarity: B
• Connectors: MTP/MPO female on both ends
• Cable diameter: 6.8 mm (ultra-compact)
• Fanout: 2 mm stepped fanouts per 12 fibers
• Brand: ACT, MPN: DC5261, EAN: 8716065433425

How to use

Route the preterminated ACT MTP/MPO trunk cable through cable ducts or install it within 19" cabinets, then connect the MTP/MPO female connectors directly to compatible MTP/MPO adapters or panel modules. Use the compact stepped fanouts to terminate into individual LC/SC ports or connect to equipment requiring fanout assemblies. Ensure correct polarity B orientation when linking transceivers or patching to maintain channel mapping.

Recommendations

For optimal performance, avoid tight bends and maintain the recommended minimum bend radius for multimode fiber. Install trunk cables in organized bundles inside ducts or racks to preserve the advantage of the ultra-compact design and allow future scalability.
