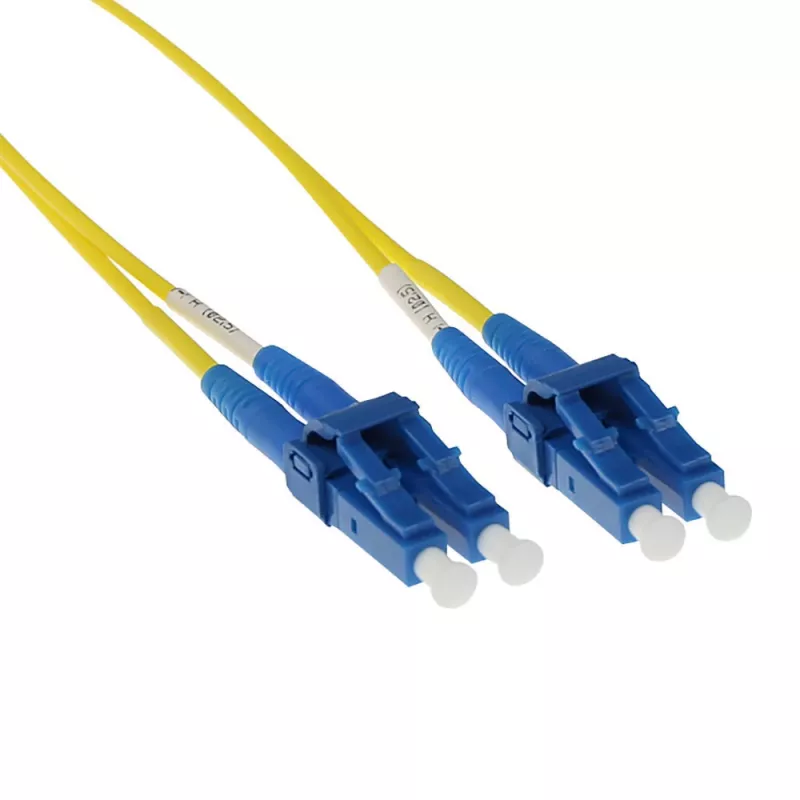

ACT 25 meter LSZH Singlemode 9/125 OS2 short boot fiber patch cable duplex with LC connectors

Fiber Patch Cable ACT 25 meter LSZH Singlemode 9/125 OS2 Duplex LC is a 25 m duplex singlemode fiber patch cable with LC connectors and 9/125 µm OS2 fiber. The LSZH jacket provides low smoke and zero halogen properties for improved safety in confined spaces. This cable is intended for high-speed data transmission in telecommunications and data center environments where reliable duplex connectivity is required.

Advantages

Each cable is supplied with an individual test report for insertion loss (IL) and return loss (RL), and connector end-faces are 100% inspected. Laser-precision cleaving and Grade A fiber ensure consistent optical performance. Connectors use UPC polish to provide low back reflection and stable signal quality.

Suitable for

• Data centre interconnects
• Telecommunications links
• LAN backbone and server racks
• FTTx and patching panels

Key specifications

• Length: 25 meter
• Cable type: Duplex singlemode
• Fiber: 9/125 µm OS2
• Connector type: LC duplex
• Jacket: LSZH (Low Smoke Zero Halogen)
• Polish: UPC
• Quality: Grade A fiber; end-face 100% inspected

How to use

Route the cable between equipment racks or patch panels, avoiding sharp bends and excessive tensile stress. Insert LC connectors into matching LC ports until they click; ensure correct orientation for duplex pairs. Follow standard fibre handling procedures to keep connector end-faces clean and protect unused connectors with dust caps.

Recommendations

For optimal performance, clean connector end-faces before connection and install cable with bend radii above the manufacturer’s minimum (avoid tight loops). Refer to system loss budgets and the supplied IL/RL test report when planning links.
